Automatic Auger Filling Machine
Automatic Auger Filling Machine

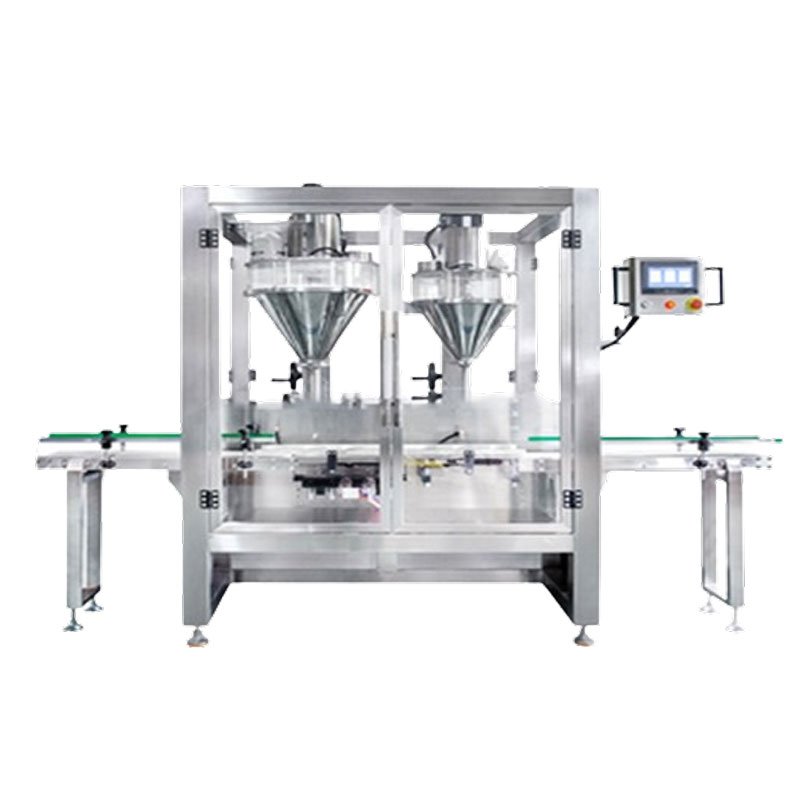

The FGJ-H is an automated powder filling system built to dispense powdered and granular substances into bottles with precision. It utilizes PLC and HMI control technology to deliver accurate quantitative dosing. Compliant with GMP requirements, the unit features stainless steel contact parts and a design that simplifies changeover and disassembly. Available in rotary and linear configurations with one or two nozzles, it handles fill weights from 1 g to 1500 g at speeds of 10–60 containers per minute, achieving accuracy of ±0.5% to ±1%. Its stable performance, sensible construction, and straightforward maintenance make it a dependable choice.
Features:
1. The machine adopts a stable PLC and HMI control system, enabling accurate quantitative filling and reliable performance throughout the powder packaging process.
2. High-quality stainless steel contact parts ensure durability, corrosion resistance, and compliance with GMP standards for pharmaceutical and food powder filling applications.
3. Easy changeover and disassembly features enable quick format adjustments while simplifying routine cleaning and maintenance tasks for machine operators.
4. Electrical configuration can be customized based on specific customer requirements, providing flexibility to adapt the machine to varying production needs and local power supplies.
Technical Data:
| Model | 1FGJ-H (rotary) | 1FGJ1-H (linear) | 2FGJ-H (linear) | 2FGJ-H (rotary) |
| Capacity (cans/min) | 30-60 | 10-30 | 20-40 | 35-45 |
| Filling Range (g) | 1-100 | 1-1000 | 100-1500 | 10-1500 |
| Number of Filling Nozzle | 1 | 1 | 2 | 2 |
| Accuracy | ±≤1% | ±≤0.5% | ±≤0.5% | ±≤0.5% |
| Voltage | Custom-made according to the customer’s request | |||
| Dimension (mm) | 3000*1000*2000 | 2000*1000*1980 | 3000*1200*2000 | 2600*1050*2400 |
| Weight (kg) | 400 | 200 | 650 | 600 |
Applications:
1. Pharmaceutical industry applications: filling antibiotic powders, health supplement powders, and other pharmaceutical formulations into vials and bottles.
2. Food and beverage industry applications: packaging milk powder, protein powder, coffee powder, cocoa powder, and powdered beverages accurately.
3. Chemical and industrial applications: filling pesticides, veterinary drugs, chemical raw materials, washing powder, and other industrial powders.
4. Cosmetics and daily necessities: suitable for talcum powder and other cosmetic powders, as well as daily chemical products packaging.
