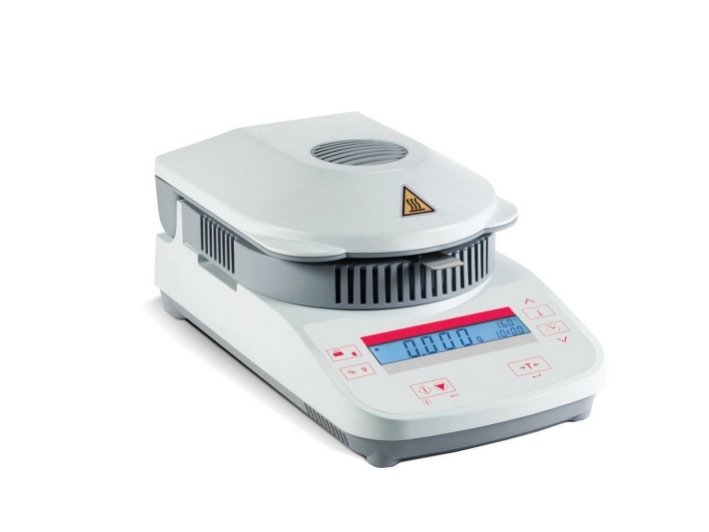

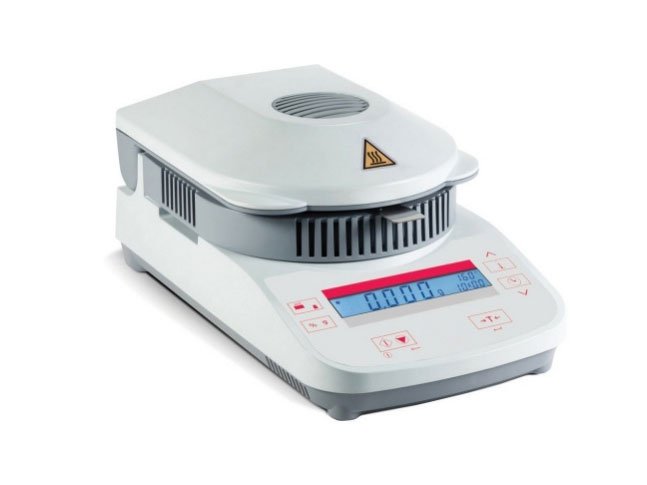

Moisture Analyzer

Moisture analyzers are specialized laboratory instruments designed to determine the moisture content of various raw materials and finished products. Employing the “Loss on Drying” (LOD) principle, these devices integrate a high-precision weighing unit with a powerful halogen lamp or infrared heating element to rapidly evaporate moisture from samples. This real-time analysis capability provides critical data support for quality control, thereby ensuring that products meet specific requirements regarding stability, shelf life, and process suitability. They play a vital role in both formulation development and routine production quality assurance, helping to effectively prevent issues such as product caking, microbial proliferation, or chemical degradation.

Moisture Analyzer

Product Display

No products found

Benefits

Rapid Halogen Heating Technology

This analyzer is equipped with an advanced halogen lamp capable of rapidly reaching the target temperature and distributing heat uniformly across the sample surface. This significantly reduces the time required for testing from the several hours typically needed by traditional ovens to a mere few minutes.

Integrated High-Precision Weighing System

The system features a built-in analytical balance with a readability of up to 0.001g, allowing for real-time monitoring of the sample's weight loss. This ensures that even minute changes in moisture content are captured with laboratory-grade precision.

Customizable Drying Curves

The device offers various heating modes such as Standard, Step, and Gentle modes to accommodate different types of materials. This flexibility effectively prevents heat-sensitive samples from scorching, thereby ensuring the accuracy and integrity of the moisture data.

Automated Endpoint Detection

The analyzer utilizes a stability criterion based on the sample's weight change over time to determine the "auto-stop" point. This feature eliminates errors associated with human judgment, ensuring that the test automatically terminates only after the sample has completely dried, thereby delivering highly repeatable results.

Rapid Halogen Heating Technology

Integrated High-Precision Weighing System

Customizable Drying Curves

Automated Endpoint Detection

Application

Pharmaceutical Raw Materials (Powders & Granules)

Used to verify that the moisture content of Active Pharmaceutical Ingredients (APIs) and excipients is within appropriate levels, thereby ensuring the stability of tablet compression.

Nutritional Capsules & Dietary Supplements

Applied to determine the moisture content of herbal extracts and protein powders.

Food Ingredients & Spices

Used to monitor the moisture levels in flour, sugars, and dried spices.

Plastic Resins & Polymers

Crucial for verifying the dryness of plastic granules prior to injection molding.

Chemical Raw Materials & Cosmetic Creams

Analyze the solid-to-liquid ratio in emulsions, creams, and paste-like products.

FAQ

What is the difference between halogen heating and infrared heating?

Compared to standard infrared heating elements, halogen lamps heat up faster and provide more uniform radiation, making them the preferred choice for high-speed, high-precision laboratory analysis.

How should I select the appropriate drying temperature?

The ideal temperature is typically set slightly below the critical point at which the sample begins to decompose or oxidize. For most pharmaceutical powders, the testing temperature falls between 100 C and 105 C; however, for heat-sensitive materials, a “gentle” heating mode should be employed.

Can this instrument measure "total solids content" rather than moisture content?

Yes. Most modern moisture analyzers feature switchable display modes, allowing them to display either the moisture content percentage (MC%) or the dry matter/total solids content percentage (DC%).

How much sample is required for an accurate test?

While specific requirements vary depending on the application, a sample size between 3g and 10g is generally recommended. The sample should be spread thinly and evenly across the aluminum pan to ensure uniform moisture evaporation.

How often should a moisture analyzer be calibrated?

To comply with GMP regulations, the instrument’s weighing unit should be calibrated daily using certified standard weights, while the heating module should be verified every 6 to 12 months using a dedicated temperature calibration kit.
