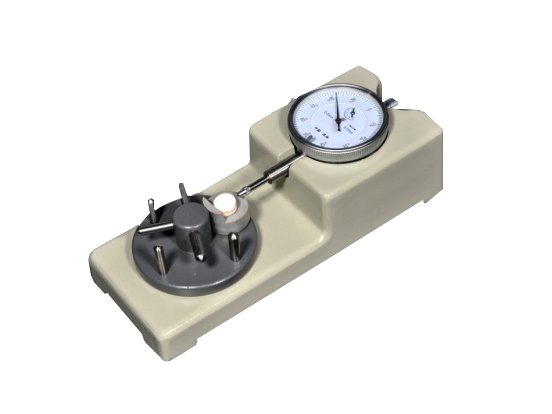

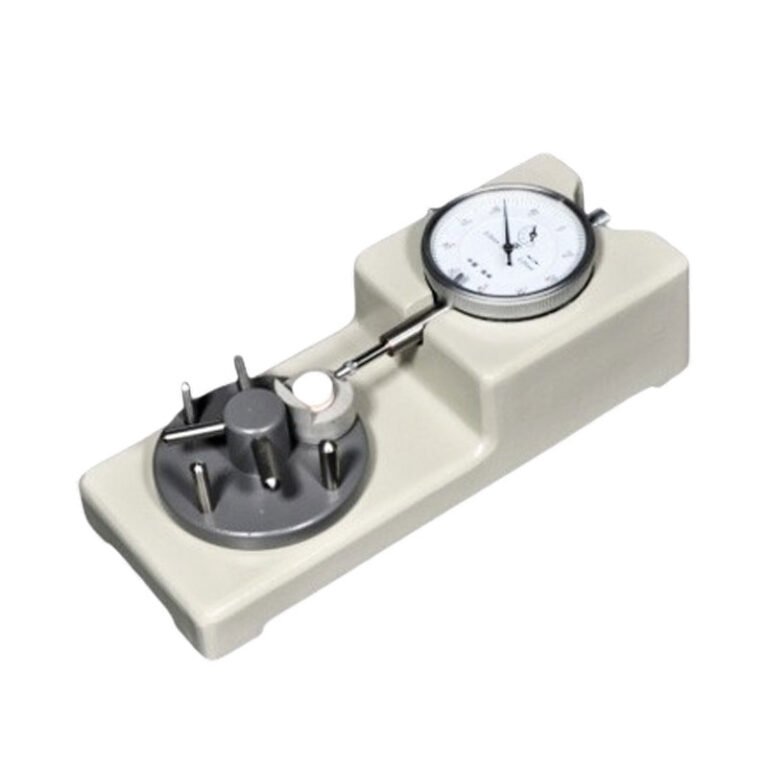

Thickness Gauge
Thickness testers are utilized to measure the physical dimensions of solid dosage forms with micron-level precision. In pharmaceutical manufacturing, thickness consistency serves as a critical indicator for assessing the uniformity of tablet compression and the standardization of capsule filling. These instruments provide real-time data, assisting operators in monitoring the operational status of tablet presses and capsule filling machines, thereby ensuring that every product batch complies with predetermined physical specifications.
Thickness Gauge
Product Display
Benefits
This measuring instrument is equipped with a high-sensitivity electronic displacement sensor capable of delivering precise readings. This capability facilitates the timely identification and correction of errors on high-speed tablet presses—before such errors can compromise an entire batch of products by causing them to fall out of specification.
Unlike manual calipers, which rely on the user's "feel" and applied pressure, this automatic thickness tester applies a constant and controlled force.
Featuring a "one-touch" measurement cycle function, the device enables the rapid testing of large batches of samples. It performs simultaneous measurements of thickness, diameter, and hardness, thereby significantly reducing the overall time required for quality control procedures.
The system automatically records data for every measurement taken, while instantly calculating the mean and standard deviation.
Constructed from high-quality stainless steel and chemical-resistant components, these instruments are specifically engineered to withstand the dusty environments typical of pharmaceutical laboratories, featuring a structural design that facilitates easy cleaning and disinfection.
This measuring instrument is equipped with a high-sensitivity electronic displacement sensor capable of delivering precise readings. This capability facilitates the timely identification and correction of errors on high-speed tablet presses—before such errors can compromise an entire batch of products by causing them to fall out of specification.
Unlike manual calipers, which rely on the user's "feel" and applied pressure, this automatic thickness tester applies a constant and controlled force.
Featuring a "one-touch" measurement cycle function, the device enables the rapid testing of large batches of samples. It performs simultaneous measurements of thickness, diameter, and hardness, thereby significantly reducing the overall time required for quality control procedures.
The system automatically records data for every measurement taken, while instantly calculating the mean and standard deviation.
Constructed from high-quality stainless steel and chemical-resistant components, these instruments are specifically engineered to withstand the dusty environments typical of pharmaceutical laboratories, featuring a structural design that facilitates easy cleaning and disinfection.
Application
FAQ
Why are tablet thickness and hardness equally important?
Hardness measures mechanical strength, whereas thickness serves as a direct indicator of the fill volume within the die. If the tablet weight remains constant while its thickness varies, this suggests a change in either the compression force or the granule density—factors that can subsequently impact the tablet’s dissolution rate.
Can this instrument measure non-circular or uniquely shaped tablets?
Yes. Most instruments are equipped with self-centering sample holders or specialized anvils capable of accurately measuring the maximum thickness of oblong, oval, or triangular tablets without slippage.
How does the "Constant Force" function work?
The instrument utilizes a motorized or spring-loaded probe to apply a precisely consistent pressure to every sample. This effectively prevents the “over-compression” of softer tablets—a phenomenon that, in the absence of this feature, would result in artificially low thickness readings (i.e., false-thin values).
Does this device comply with 21 CFR Part 11 regulations?
When integrated with specialized Quality Control (QC) software, the instrument supports electronic signatures, audit trails, and secure data storage capabilities, thereby meeting the stringent requirements for digital record-keeping within the pharmaceutical industry.
How often should I calibrate my thickness tester?
To ensure compliance with GMP guidelines, it is recommended to perform a daily verification using certified gauge blocks (i.e., standardized metal blocks of known thickness), and to conduct a comprehensive professional calibration every 6 to 12 months.
