Thickness Gauge
Thickness Gauge

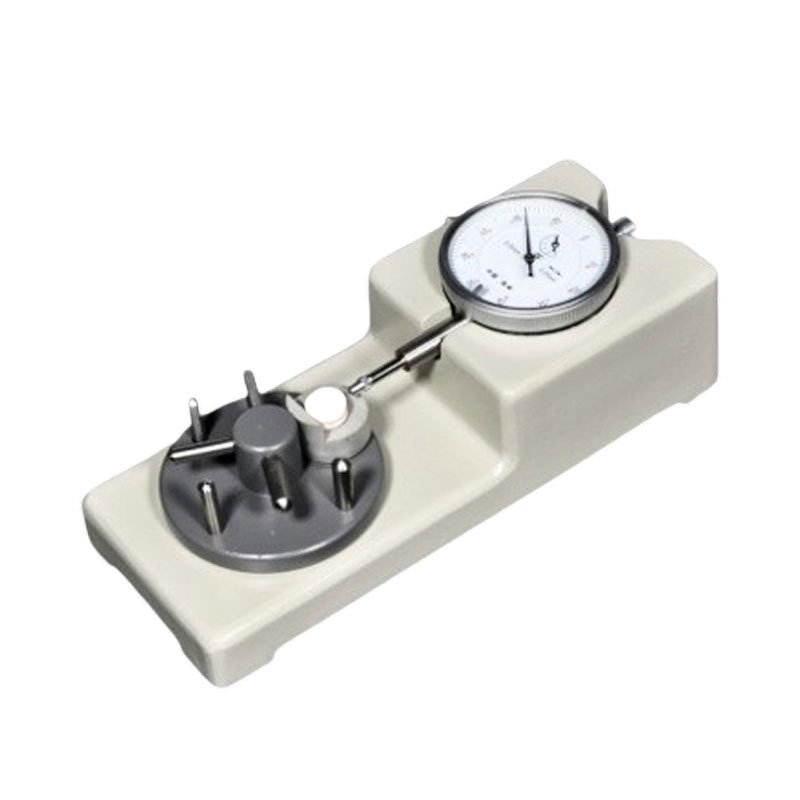

The PHD-B is a precision measuring instrument designed to determine the wall and top thickness of capsules, along with the diameter and thickness of tablets and pills. A high-quality precision dial indicator ensures accurate readings. It offers a measurement range of 0–30 mm with ±0.01 mm accuracy and accommodates capsule sizes 00 through 5. The compact unit measures 200×80×50 mm and weighs just 0.9 kg, making it easy to clean, maintain, and operate reliably.
Features:
1. Wide Measurement Range with High Precision
The gauge covers a thickness testing span of 0 to 30 millimeters and achieves an accuracy of ±0.01 millimeter, ensuring dependable dimensional verification for tablets, pills, and capsules.
2. Multi-Format Measurement Capability for Capsules and Tablets
This instrument measures both the wall thickness and top thickness of capsules, while also determining the diameter and thickness of various tablets and pills across models 00 through 5.
3. Compact Structure with Easy Maintenance
Featuring a reasonable and stable structural design, the device is simple to clean and maintain, and it is supported by a professional after-service team for long-term operational reliability.
Technical Data:
| Model | 30PHD-B |
| Thickness Test Range (mm) | 0-30 |
| Thickness Test Accuracy (mm) | ±0.01 |
| Measurable Capsule Model | 00, 0, 1, 2, 3, 4, 5 |
| Dimension (L*W*H mm) | 200*80*50 |
| Weight (kg) | 0.9 |
Applications:
1. Pharmaceutical tablet dimensional quality control – Measuring tablet diameter and thickness to ensure dosage consistency, manufacturability, and compliance with pharmacopeial specifications.
2. Capsule wall and top thickness verification – Inspecting hard-shell capsule wall and dome thickness to ensure structural integrity and proper filling performance.
3. Formulation development and process optimization – Evaluating thickness uniformity across compression parameters to optimize granulation density, die fill, and tablet press settings.
4. Packaging compatibility and line-end product inspection – Verifying tablet and capsule dimensions for proper blister packaging fit and final product quality assurance.
