Automatic Banding Machine
Automatic Banding Machine

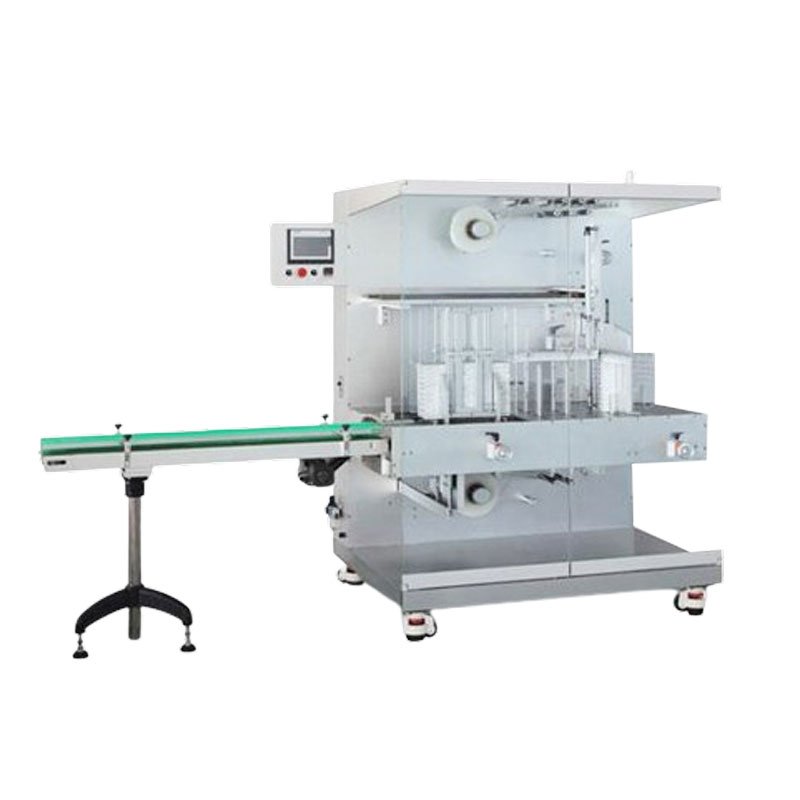

The KZJ-B is an automated carton bundling system engineered to strap boxes into bundles, significantly boosting packaging throughput in pharmaceutical, food, daily chemical, and allied sectors. Compliant with GMP standards, it employs a PLC controller and HMI interface for dependable operation. The unit uses PE film as the strapping material, accommodating band widths and thicknesses of 30–80 mm, with adjustable tension and multiple strapping patterns. Two models are offered: the SED-180KZJ-B handles 480–720 bundles per hour, while the SED-500KZJ-B reaches 1,200–2,100 bundles per hour. The compact design requires no tools for disassembly and is straightforward to clean and maintain. Power supply is customized to order, and professional after-sales support is provided.
Features:
1. The machine fully complies with GMP standards, ensuring that bundling operations meet stringent regulatory requirements for product safety, hygiene, and quality in pharmaceutical packaging.
2. Equipped with a PLC control system, the machine ensures reliable and precise control over all bundling operations for consistent, high-quality production output.
3. The machine is easy to disassemble without tools, allowing operators to perform maintenance and adjustments quickly and conveniently for efficient bundling production.
4. The machine features a compact structure with a small footprint, making it ideal for installations where space is limited in pharmaceutical, food, and daily chemical industries.
5. Adjustable tightening force and belt size allow the machine to accommodate different carton dimensions, ensuring flexible and reliable bundling performance.
6. Various strapping forms are supported, providing flexible bundling options to accommodate different product types and packaging requirements.
Technical Data:
| Model | 180KZJ-B | 500KZJ-B |
| Banding Dimensions (L*W*H mm) |
Min.50*60*90 Max.240*150*300 |
Min.50*60*90 Max.250*250*300 |
| Banding Material | PE film suitable banding spec（width）：30~80mm Banding thickness：30~80mm |
PE film suitable banding spec（width）：30~80mm Banding thickness：30~80mm |
| Banding Speed (bundles/hr) | 480-720 | 1200-2100 |
| Power Supply | Custom-made according to the customer’s request | |
| Air Press (MPa) | 0.6~0.8 | 0.6~0.8 |
| External Size (mm) | 1100*800*1700 | 1400*1060*1800 |
| Conveying Size (mm) | 1000*250*800 | 1300*296*840 |
| Weight (kg) | 500 | 980 |
Applications:
1. Pharmaceutical and Medical Packaging: Bundles medicine cartons and medical device boxes, meeting GMP standards for hygiene and tamper-evident security.
2. Food and Dairy Product Bundling: Straps biscuit boxes, dairy cartons, and fresh produce trays with moisture-resistant PE film bands for hygienic transport.
3. Daily Chemical and Personal Care Packing: Bundles cosmetics, skincare cartons, and household chemical boxes with adjustable tension, ensuring secure and damage-free bundling.
4. Logistics and E-Commerce Bundling: Securely straps grouped cartons and shipping units, stabilizing loads for efficient handling, storage, and distribution.
