Automatic Cellophane Packing Machine
Automatic Cellophane Packing Machine

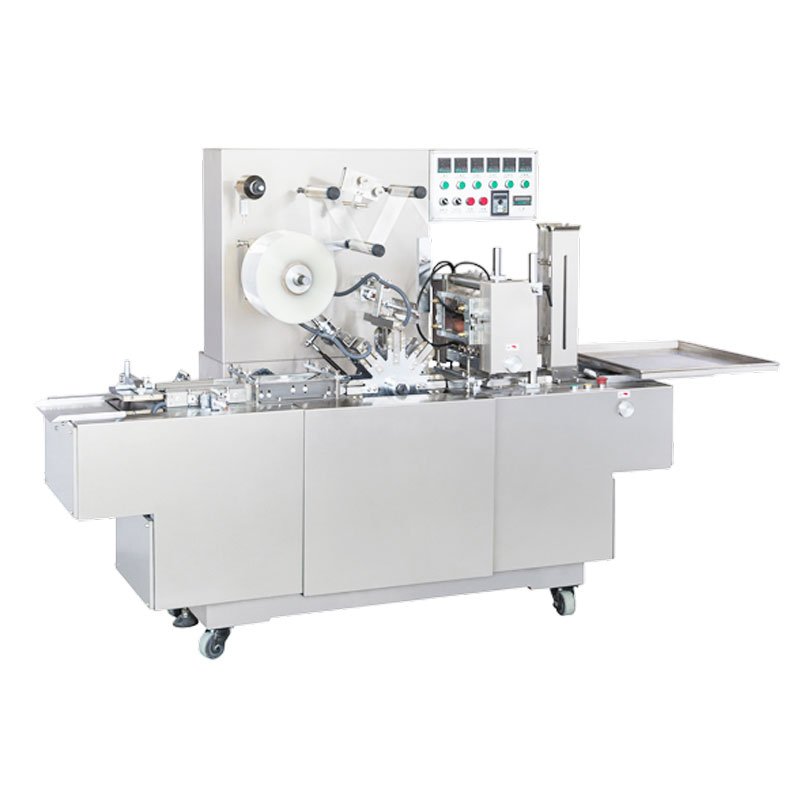

The SWB-D is an automated cellophane wrapping system built to enclose individual or bundled cartons in transparent film. It supports OPP, BOPP, and PVC materials. A reliable PLC controller governs operations, while servo-driven mechanisms permit real-time speed adjustment with enhanced precision. The machine provides automatic fault diagnosis, can be linked with other equipment, and delivers anti-counterfeiting, moisture-proof, and dust-proof protection after wrapping. Three models are offered with outputs from 20 to 70 cartons per minute, accommodating carton sizes from 50×30×10 mm up to 380×240×100 mm. Unit weights range from 650 to 1,100 kg.
Features:
1. The machine adopts a stable PLC control system, ensuring reliable and precise operation throughout the cellophane packing process for consistent, high-quality production output.
2. Servo motor control enables easy adjustment of packing speed at any time, delivering higher accuracy and flexibility for efficient cellophane packaging operations.
3. Automatic fault diagnosis prompts allow operators to quickly detect and address problems, ensuring minimal downtime and efficient cellophane packaging production.
4. The machine can be linked with other equipment to work together, enabling seamless integration into complete production lines for efficient cellophane packaging operations.
5. After film packaging, the machine provides anti-counterfeiting, moisture-proof, and dust-proof protection, ensuring product integrity and extending shelf life during storage and transport.
Technical Data:
| Model | 200SWB-D | 400SWB-D | 500SWB-D |
| Packing Speed (cartons/min) | 50-70 | 30-50 | 20-40 |
| Packing Material | BOPP cigarette film and anti-counterfeiting gold wire |
OPP, BOPP film, PVC film | OPP, BOPP film, PVC film |
| Packing Size (mm) | L: 50-170 W: 30-120 H: 10-70 (The sizes cannot be maximum at the same time) |
L: 70-280 W: 40-180 H: 20-80 |
L: 100-380 W: 40-240 H: 20-100 |
| Weight (kg) | 650 | 950 | 1100 |
| Dimensions (mm) | 2100*750*1550 | 3300*920*1650 | 3460*1020*1720 |
Applications:
1. Pharmaceutical and Healthcare Packaging: Wraps medicine boxes, health supplement cartons, and condom boxes with transparent film for tamper-evident protection
2. Cosmetics and Personal Care Wrapping: Suitable for perfume boxes, skincare product cartons, and makeup cases, enhancing shelf appeal and product safety
3. Food and Confectionery Overwrapping: Packages biscuits, candies, tea boxes, and chewing gum cartons, providing moisture-proof and hygienic outer wrapping
4. Stationery and Consumer Goods Packing: Ideal for wrapping stationery sets, notebooks, audio-video products, and daily necessities like soap boxes.
