Name: Industrial Inkjet Printing Machine - Innoval Pharma
SKU: PMJ-G

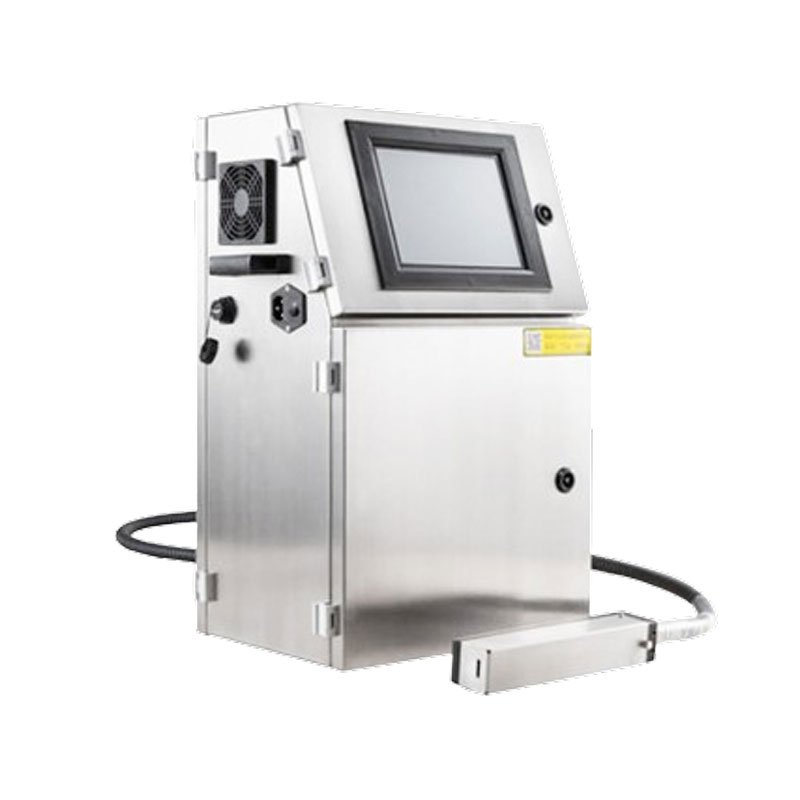

Industrial Inkjet Printing Machine

SKU PMJ-G Category Printing Machine

The PMJ-G is an advanced industrial marking system engineered to imprint sharp text, batch codes, production dates, serial numbers, and graphics onto product surfaces or secondary packaging. It guarantees crisp readability and lasting adhesion on plastics, metals, glass, and paperboard. The unit supports simultaneous dual-side printing in one pass, allows task editing during operation, and incorporates multi-tier access control. A graphical touchscreen simplifies use without training. It accommodates complex elements like variable QR codes and logos, offers adjustable print dimensions, and uses quick-drying ink for high-speed, non-absorbent substrates. Across four models, print speeds reach 300 m/min, with font heights of 1.5–20 mm, 24×24 to 48×48 dot matrix options, and storage for up to 1,000 messages.

Features:

1. The printer performs double-sided printing simultaneously in a single feed, ensuring precise alignment on both sides for efficient and accurate batch coding operations.

2. Multi-tasking in parallel enables task editing during printing without machine stoppage, ensuring uninterrupted and efficient batch coding operations.

3. The machine features multi-level access control, assigning different permissions to various roles to prevent accidental changes and ensure secure batch coding operations.

4. Featuring a guided interface with a graphical touchscreen, the machine requires no operator training and ensures intuitive, user-friendly batch coding production.

5. Complex label integration enables the machine to print high-precision graphics such as variable QR codes and trademarks, enhancing traceability in batch coding.

6. The machine features adjustable print size to adapt to various packaging dimensions, offering versatility for multiple batch coding applications across different product formats.

Technical Data:

Model	260PMJ-G	280PMJ-G	380PMJ-G	660PMJ-G
Max. Print Speed	300m/min(55 dots), 2000 characters per second(57 dots).	235m/min(5*7 dots)	235m/min(5*7 dots)	280m/min(5*5 dots)
Printable Font Height	1.5-20mm adjustable. Maximum can be widened 9 times	1.5-20mm adjustable. Maximum can be widened 9 times	2-20mm adjustable	1.5mm-20mm. Best:10mm Maximum can be widened 9 times
Dot Matrix	32*32	32*32	48*48	24*24
Memory Capacity	up to 1000 messages
Printing Line	within 4 Lines
Printer Content	time, date, lot numbers, serial number, logo, etc.
Ink Color	Black, blue, red, yellow etc.
Printhead Throat Length	2.7m (customizable)

Applications:

1. Pharmaceutical Packaging & Traceability: Codes batch numbers, expiry dates, and GS1 DataMatrix on medicine cartons, vials, and blister packs for regulatory compliance.

2. Food & Beverage Production Lines: Prints production dates, lot codes, and QR codes on bottles, cans, pouches, and cartons at high speed.

3. Electronics & Cable Marking: Marks part codes, serial numbers, and meter markings on PCBs, cables, and electronic components with instant-drying ink.

4. Cosmetics & Personal Care Labeling: Applies batch codes, best-before dates, and 2D barcodes on skincare cartons, perfume boxes, and daily chemical packaging.
