Industrial Powder Sieving Machine
Industrial Powder Sieving Machine

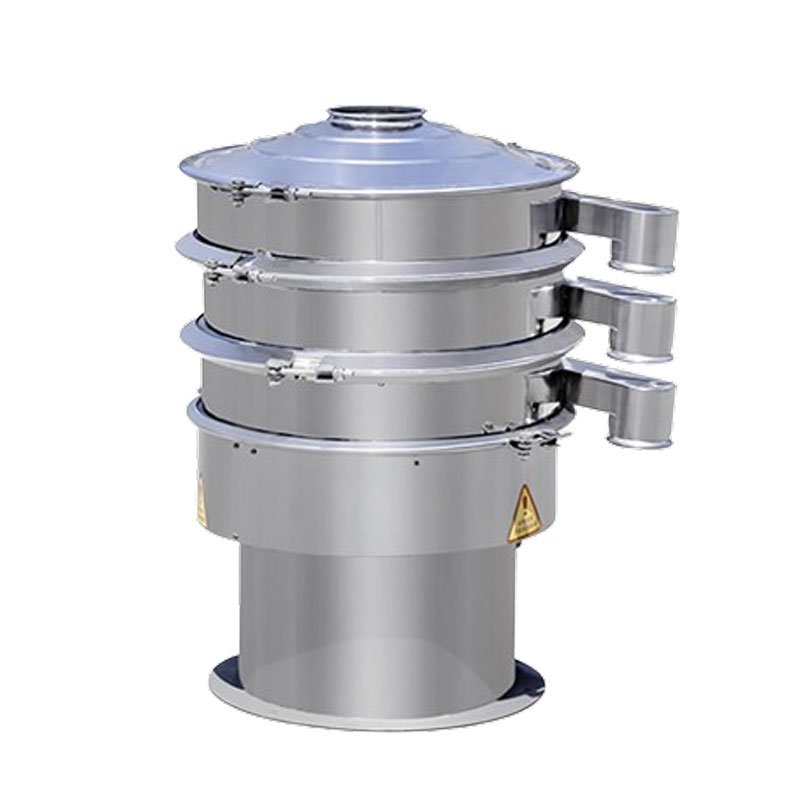

All-Stainless Steel Standard Vibrating Screen — three-dimensional rotary vibrating sieve. Sealable feed inlet prevents dust dispersal. Suitable for high-mechanization continuous automatic feeding lines. Applications span pharmaceutical, food, chemical, ceramic, metallurgical, and environmental industries. Full GMP-compliant validation package: DQ / IQ / OQ / PQ / FAT / SAT documents available.
Features:
1. All-stainless-steel construction — meets GMP, food-grade, and pharma cleaning requirements.
2. Sealable feed inlet keeps fines contained — protects operators and environment.
3. High screening efficiency from patented mesh-frame design.
4. Versatile across pharma, food, chemical, ceramic, mining, and waste-treatment.
Technical Data:
| Model | 390SF-F | 580SF-F | 760SF-F | 910SF-F | 1120SF-F | 1420SF-F | 1720SF-F | 1920SF-F |
| Effective Screen Diameter (mm) |
390 | 580 | 760 | 910 | 1120 | 1420 | 1720 | 1920 |
| Effective Screening Area (m²) |
0.1207 | 0.2289 | 0.4183 | 0.6359 | 0.9499 | 1.5386 | 2.2687 | 2.7922 |
| 1-3S Motor Parameters (kW) |
0.25 | 0.37 | 0.55 | 0.75 | 1.1 | 3 | 4 | 5 |
| 4-5S Motor Parameters (kW) |
0.37 | 0.55 | 0.75 | 1.1 | 1.5 | 4 | 5 | 5 |
| Number of Layers | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
Applications:
1. Pharmaceutical: Chinese herbal liquids, Western medicine powder/liquid, Chinese & Western granules.
2. Food: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice.
3. Chemical: resins, coatings, industrial chemicals, cosmetics, paints, abrasives.
4. Ceramic: alumina, quartz sand, mud, kaolin, silicon carbide, sprayed soil particles.
5. Paper: coating paint, clay slurry, black/white liquid, papermaking liquid, wastewater recycling.
6. Metallurgy / mining: aluminum/lead/copper powder, ore, alloy powder, manganese dioxide, electrolytic copper, refractory materials, lime, kaolin, calcium carbonate.
7. Pollution treatment: waste oil, wastewater, dyeing/finishing wastewater, additives, activated carbon.
