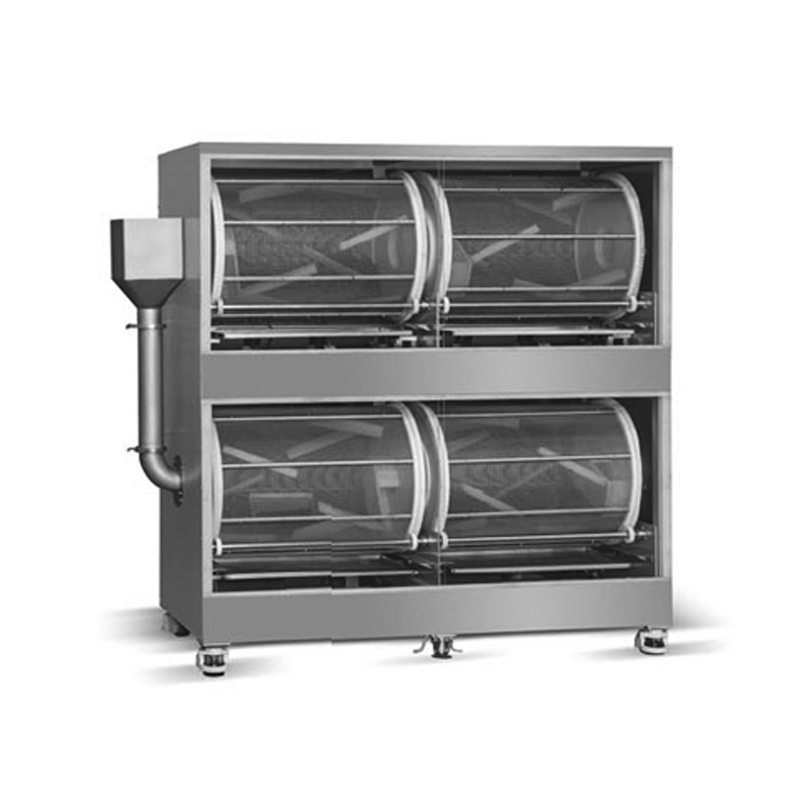

Industrial Softgel Drying Tunnel Machine
Industrial Softgel Drying Tunnel Machine
Freshly formed softgel pellets are conveyed by the encapsulator’s transfer fan into the rotating stainless-steel mesh cage. As each cage section rotates clockwise the gels tumble inside while fans blow clean ambient air across the cage, drying and setting their shape. Switching a section’s direction to counter-clockwise advances the gels to the next section; the final section discharges dried gels automatically. Cage speed and per-section direction are controlled from the front panel.
Features:
1. Modular cage sections, connectable end-to-end.
2. Independent forward/reverse switch per section.
3. Stainless-steel mesh-cloth cage body.
4. Automatic discharge of dried gels.
5. Compact footprint with ample maintenance access.
6. Per-section reverse control gives precise residence-time tuning.
7. High fan airflow shortens drying/setting time.
8. Auto-discharge cuts labour and reduces gel handling damage.
Technical Data:
| Model | SED-580ZL-I (single-decker) |
SED-580ZL2-I (single-decker) |
SED-580ZL4-I (double-decker) |
SED-700ZL-I |
| Number of Sections | 1 | 2 | 4 | 4 |
| Cage Speed (r/min) | 0-30 | 0-30 | 0-30 | 0-20 |
| Power | Custom-made according to the customer’s request | |||
| Fan Air Volume | 660m³/h* 3/section*1 sections |
660m³/h* 3/section*2 | 660m³/h* 3/section*4 | 660m³/h* 3/section*4 |
| Dimension (mm) | 1180*780*1200 | 2150*780*1200 | 2500*840*2300 | 3200*1450*2220 |
| Net Weight (kg) | 200 | 400 | 800 | 1600 |
Applications:
1. Softgel capsule shape setting after encapsulation.
2. Softgel capsule drying.
