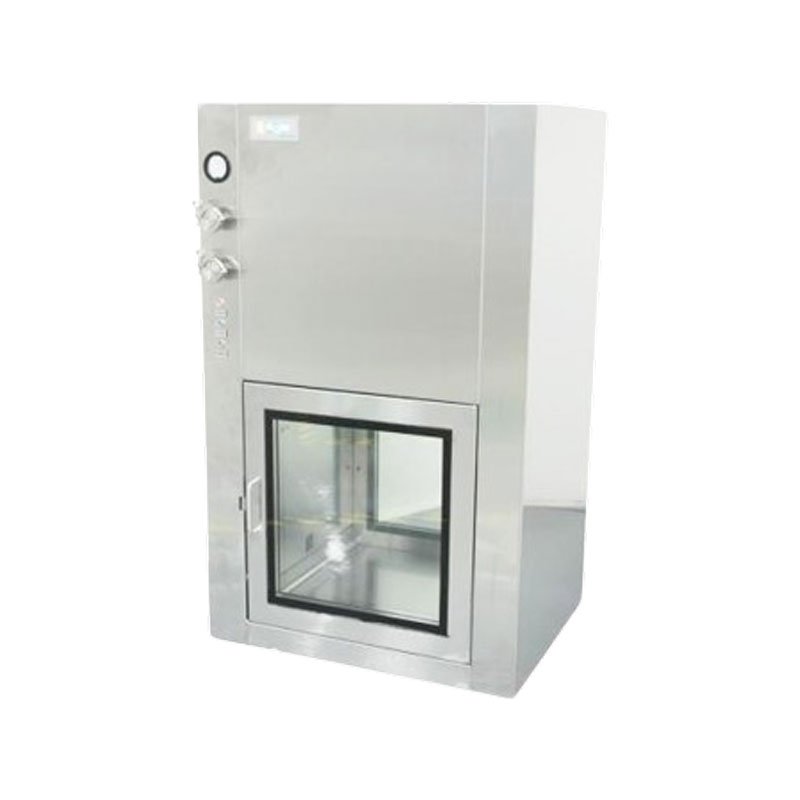

Laminar Flow Pass Box
Laminar Flow Pass Box
The operator places material in the pass-through chamber and closes the door. The double-door electronic interlock prevents both sides from opening simultaneously. Infrared sensing triggers the fan, which draws air through primary and HEPA two-stage filtration to form a laminar flow at 0.45 m/s ±20% inside the chamber. The optional UV germicidal lamp can be activated separately. The Dwyer differential pressure gauge continuously monitors HEPA filter resistance to ensure filtration performance.
Features:
1. Laminar-flow + air shower + UV sterilization in one unit for material transfer between clean zones.
2. Class 100 cleanliness with HEPA DOP challenge ports for validated GMP environments.
3. Electronic double-door interlock ensures clean zone integrity.
4. Dwyer pressure gauge enables real-time HEPA filter health monitoring.
5. Full SUS304 construction meets pharmaceutical and biotech GMP requirements.
Technical Data:
| Model | CDC-J |
| Sterilization | 18W ultraviolet germicidal lamp |
| Monitoring | 0-500Pa differential pressure gauge |
| Cleanliness | static class 100 (US 209E standard) |
| Power | Custom-made according to the customer’s request |
| Fan System | dedicated fan with large air volume, the wind speed is adjustable at 0.45m/s±20% |
| Size (mm) | External: 1260W*1080D*1650H
Inner: 1000W*1000D*1000H |
Applications:
1. Cleanroom material transfer between zones of differing classification.
2. GMP pharmaceutical and biotech material pass-through.
3. Electronics / semiconductor cleanroom material transfer.
4. Hospital sterile material transfer.
