Name: Tablet Hardness Testing Machine - Innoval Pharma
SKU: YDC-A

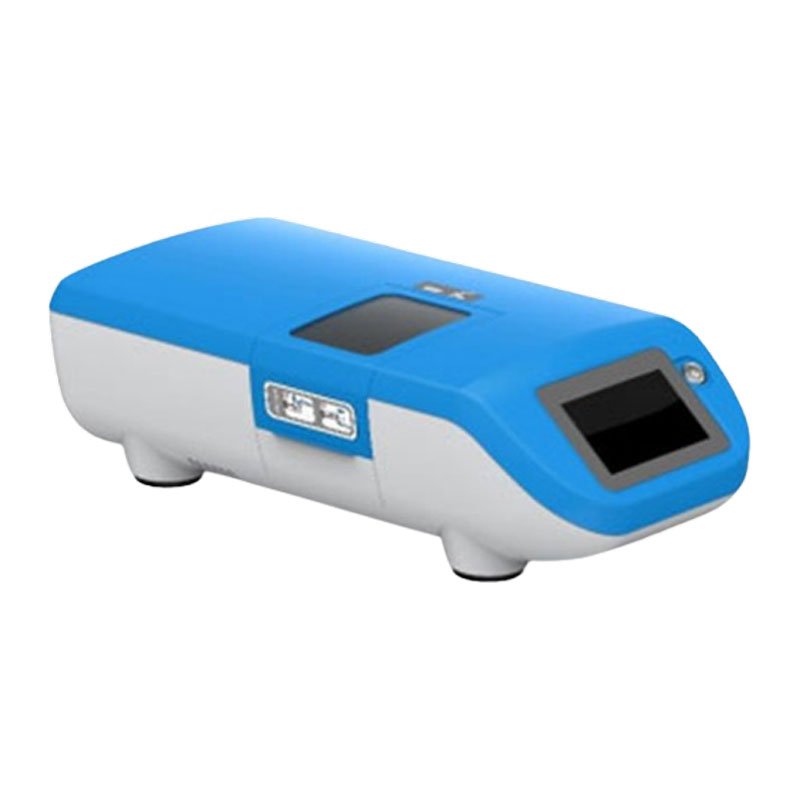

Tablet Hardness Testing Machine

SKU YDC-A Category Hardness Tester

The YDC-A is a portable hardness testing device engineered for solid dosage forms such as tablets and granules. It supplies a dependable foundation for evaluating tablet hardness, coating, packaging, and transport, while also supporting disintegration and dissolution studies. Equipped with a high-precision pressure sensor, digital readout, and motorized feed mechanism, it automates the measurement process. The unit supports continuous testing with manual pressurization, automatic display, latch, reset, and cycle functions. It covers a hardness range of 10–350 N with 0.01 N resolution and ±1.5% ±1 digit accuracy, accommodating tablets from 2 to 25 mm in diameter and handling up to 1,000 tablets automatically. Data can be exported via RS232 or USB. Power supply is customizable.

Features:

1. The tablet hardness tester features a high-precision pressure sensor with digital display of hardness values, ensuring accurate and reliable measurement of solid preparation hardness in pharmaceutical testing.

2. The tester continuously measures tablet hardness values with manual pressurization, automatic display, latch, reset, and cycle test functions for efficient and repeatable pharmaceutical testing operations.

3. Main components and parts are sourced from imported or domestic high-quality products, ensuring reliable performance and long-term durability in pharmaceutical tablet hardness testing applications.

4. This portable tablet hardness tester is suitable for pharmaceutical factories, teaching and research departments, and drug inspection units, providing flexible and convenient hardness testing for tablet drugs.

5. The tester offers a hardness range of 10–350 N with 0.01 N resolution, ±1.5% accuracy, 2–25 mm tablet diameter capability, and automated testing of up to 1,000 tablets with RS232 or USB data export.

Technical Data:

Model	350YDC-A
Hardnees Range (N)	10-350
Resolution (N)	0.01
Accuracy	± 1.5% ±1digit
Deviation	±1.5%
Diameter (mm)	2-25
Resolution (mm)	0.1
Measure Unit	N/kg
Test Method	Automated ( maximum 1000 tablets)
Export or Save Data	RS232 interface or USB
Power	Custom-made according to the customer’s request

Applications:

1. Pharmaceutical Quality Control and Batch Release Testing: Determines tablet crushing strength across production batches, verifying compliance with USP <1217> and Ph. Eur. mechanical integrity standards.

2. Formulation Development and Compression Process Optimization: Guides binder selection, excipient choices, and compression force settings by profiling prototype tablet hardness during early-stage R&D.

3. Nutraceutical and Supplement Tablet Manufacturing: Verifies consistent hardness of vitamin, dietary supplement, and herbal tablets to ensure structural integrity through coating and packaging.

4. Academic Teaching and Drug Inspection Laboratory Testing: Supports pharmacy education and regulatory drug inspection units in measuring solid preparation hardness for research and quality evaluation.
