Vacuum Testing Machine
Vacuum Testing Machine

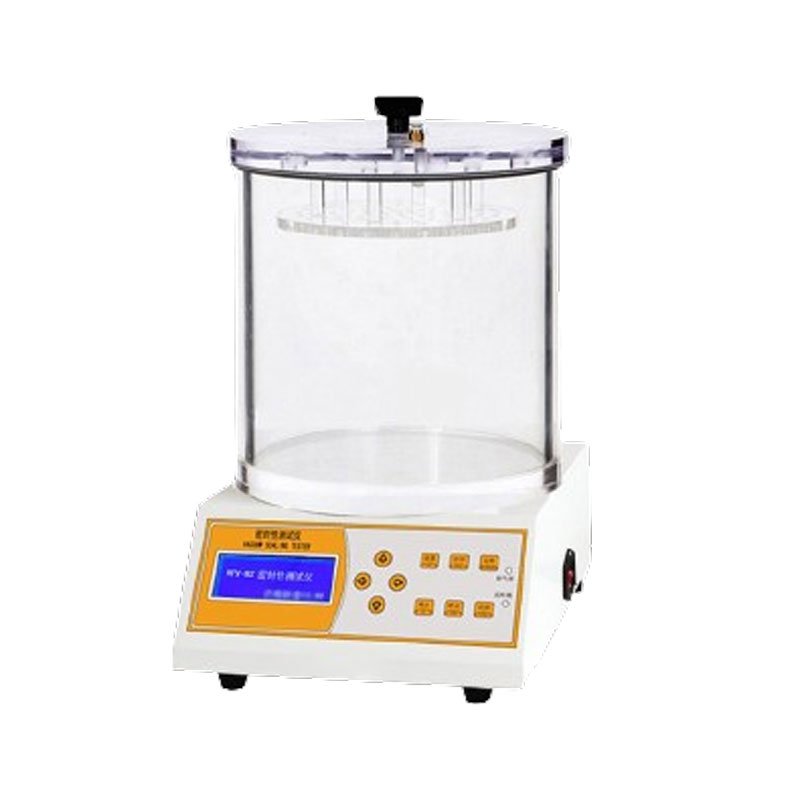

The MCY-A is a vacuum-based package integrity testing system engineered to verify seal quality across food, flexible plastic packaging, wet wipes, pharmaceutical, and daily chemical applications. It handles items such as aluminum-plastic blisters, flexible pouches, plastic bottles, nozzle packaging, medicine bottles, and vials. The unit draws a vacuum inside its chamber, creating a pressure differential that reveals leaks through escaping air or shape changes in immersed samples. It features a dual-mode design supporting both compressed air and vacuum pump operation, a bilingual interface, and microcomputer-controlled automation for pumping, holding, replenishing, timing, and blowback. An LCD screen enables data presetting and power-off memory. SMC pneumatic components ensure durable, stable, and reliable performance.
Features:
1. Dual-Mode Testing Operation
This instrument features a dual-mode design that accommodates both compressed air and vacuum pump connections, offering flexible testing configurations for diverse packaging sealing evaluation requirements.
2. Fully Automated Microcomputer Control
Equipped with microcomputer control, the system autonomously performs air extraction, pressure maintenance, replenishment, timing, and blowback functions, eliminating manual intervention and ensuring consistent, repeatable testing outcomes.
3. Multi-Language User Interface with Data Management
The machine supports Chinese and English operating systems and features an LCD screen with data preset and power-off memory capabilities, safeguarding test data accuracy and facilitating convenient operation.
4. Premium Imported Pneumatic Components
Utilizing pneumatic components imported from the globally recognized brand SMC, the equipment delivers durable, stable, and reliable performance, ensuring long-term operational consistency and minimal maintenance requirements.
5. Broad Application Across Packaging Industries
Suitable for sealing tests on aluminum-plastic blisters, flexible pouches, plastic bottles, nozzle packaging, medicine bottles, and vials, the instrument serves food, pharmaceutical, and chemical sectors effectively.
Technical Data:
| Model | MCY-A |
| Vacuum degree (kPa) | -90~0 |
| Resolution (kPa) | 0.1 |
| Air Source Pressure | 0.7MPa (air source user-prepared) |
| Vacuum Holding Time | 2.5h |
| Effective Size of Vacuum Chamber (mm) | Φ270*210 (H) (standard configuration) Note: Other sizes can be customized. |
| Air Source Interface | Φ6mm polyurethane tube |
| Dimension | 300mm(L)×380mm(B)×450mm(H) |
| Working Temperature | 5～35℃ |
| Working Humidity | Relative humidity does not exceed 85% |
| Working Power | AC 220V 50Hz |
Applications:
1. Food and flexible packaging seal integrity testing – Detecting leaks in vacuum-packed bags, pouches, and heat-sealed trays to prevent spoilage, contamination, and regulatory non-compliance.
2. Pharmaceutical packaging containment verification – Evaluating blister packs, vials, ampoules, and medicine bottles to ensure seal integrity per GMP and USP requirements.
3. Medical device sterile barrier packaging validation – Testing sterile-barrier pouches, trays, and composite packs after sealing and distribution simulation to confirm barrier integrity.
4. Daily chemical and electronic component packaging inspection – Detecting seal defects in plastic bottles, nozzle packaging, and moisture-sensitive electronic component enclosures.
