A pharmaceutical liquid filling machine sits at the heart of every liquid dosage production line. Whether you are bottling oral syrup, sealing glass ampoules, or running an aseptic fill-finish operation, the right pharmaceutical liquid filling machine determines dose accuracy, production speed, and regulatory compliance. For liquid filling machine pharmaceutical operations, choosing the correct technology is not merely an equipment decision—it directly impacts product quality, batch yield, and long-term operational cost.
Liquid pharmaceuticals span a remarkably broad spectrum, from viscous cough syrups to low-viscosity injectable solutions, and each product category places different demands on the filling system. A pharmaceutical liquid filling machine designed for oral liquids may not be suitable for sterile injectables, just as a high-speed rotary ampoule filler cannot simply be repurposed for plastic bottle lines. This guide walks through the four dominant filling technologies—gravity, piston, peristaltic, and servo-driven—explains how each works, and maps them to the three major application areas: syrup and oral liquids, ampoule and injectable products, and aseptic filling for sterile drugs. By the end, you will have a clear framework for evaluating which pharmaceutical liquid filling machine fits your product profile, production volume, and cleanroom classification.
Core Filling Technologies: How Each System Works
Every pharmaceutical liquid filling machine operates on a basic principle: measure a precise volume of liquid and deliver it into a container. The method of measurement, however, differs dramatically, and that difference defines accuracy, speed, and suitability for different product types. Below we break down the four most common technologies used in modern pharmaceutical production.
Gravity Filling
Gravity filling is the oldest and conceptually simplest method used in any pharmaceutical liquid filling machine. The system relies on a constant-head reservoir positioned above the filling nozzles. Liquid flows downward under gravity alone, and fill volume is controlled by time—the longer the valve stays open, the more liquid enters the container. Because there are no moving parts in direct contact with the product stream beyond the valve itself, gravity filling is relatively easy to clean and validate.
A pharmaceutical liquid filling machine using gravity technology works best with low-to-medium viscosity liquids that flow freely. Water-like solutions, simple syrups, and certain oral suspensions can be handled effectively this way. The main limitation is accuracy: because flow rate depends on liquid viscosity, surface tension, and fill level in the reservoir, gravity filling tends to have wider tolerance bands than positive-displacement methods. For products where dose variation of ±1–2% is acceptable, gravity filling remains a cost-effective choice.
Piston Filling
Piston filling is a positive-displacement technology widely used in the pharmaceutical liquid filling machine market. A precision-machined cylinder draws liquid into a chamber on the intake stroke, then pushes it out through the nozzle on the discharge stroke. The volume dispensed is determined by the bore diameter of the cylinder and the stroke length of the piston—both of which are mechanically fixed and highly repeatable.
A pharmaceutical liquid filling machine equipped with piston fillers delivers exceptional accuracy, often achieving ±0.5% or better fill volume consistency. This makes piston systems the go-to choice for medium-to-high viscosity products such as thick syrups, creams, and certain suspensions where gravity flow would be too slow or inconsistent. Piston systems also handle a wide range of fill volumes, from small vials to large bottles, simply by changing cylinder size or adjusting stroke length.
The trade-off is mechanical complexity. Pistons, cylinders, and seals are all product-contact parts that must be carefully cleaned, sterilized, and periodically replaced. Wear on seals can lead to drift in fill volume over time, so regular calibration is essential for maintaining dose uniformity.
Peristaltic Filling
Peristaltic filling uses flexible tubing and rotating rollers to move liquid through the system. As the rollers squeeze the tube in sequence, they create a vacuum that draws liquid forward and pushes it out the nozzle. Because the liquid never touches anything other than the inside of the tubing, peristaltic filling offers unmatched product isolation—a feature that makes it highly valued across pharmaceutical machinery, especially in any pharmaceutical liquid filling machine handling sensitive or hazardous materials. A pharmaceutical liquid filling machine with peristaltic pumps is especially useful for small-volume, high-value products. The tubing can be quickly swapped between batches, eliminating cross-contamination risk and reducing changeover time dramatically. This is a major advantage in multi-product facilities where campaign lengths are short and changeover frequency is high, making it one of the most versatile configurations in pharmaceutical machinery. Peristaltic systems also handle shear-sensitive products well, since there is no impeller, piston, or gear that could damage delicate molecules. Accuracy with peristaltic filling depends on tubing consistency and pump calibration. High-quality precision tubing and calibrated pump drives can achieve very good accuracy for small fill volumes, making peristaltic fillers common in ophthalmic, diagnostic, and certain injectable applications within pharmaceutical machinery.
Servo-Driven Filling
Servo-driven filling represents the most advanced technology available in a modern pharmaceutical liquid filling machine. Instead of relying on mechanical cams, pneumatic cylinders, or simple timers, servo systems use precision electric motors controlled by software to drive the filling action. Every parameter—fill volume, speed profile, acceleration, and nozzle movement—is programmable and repeatable down to the millisecond.
A pharmaceutical liquid filling machine with servo control offers several significant advantages. First, fill volume accuracy is extremely high and consistent across the entire speed range, because the motor position is continuously monitored and adjusted. Second, the fill profile can be shaped: the system can start slowly to avoid splashing, ramp up to full speed, then decelerate near the target volume to prevent overshoot. This is especially valuable for foamy products or viscous liquids that are difficult to handle with conventional systems.
Servo-driven systems also excel at recipe management. Changing from one product or container size to another is a matter of selecting a pre-stored recipe on the HMI, rather than manually adjusting mechanical stops or cam positions. This reduces changeover time substantially—a critical benefit in flexible manufacturing environments.
Application Scenarios: Matching Technology to Product
Choosing the right pharmaceutical liquid filling machine means matching filling technology to product characteristics, container type, and production volume. Below we examine the three major liquid product categories and which filling technologies best serve each.
Syrup and Oral Liquids
Oral syrups and liquids represent one of the largest volume segments for any pharmaceutical liquid filling machine. These products include cough syrups, antacids, vitamin solutions, and pediatric suspensions, typically packaged in plastic or glass bottles ranging from 50 mL to 500 mL or more.
Viscosity varies widely among oral liquids—some are water-thin, others are thick, syrupy formulations that flow slowly. For this reason, a pharmaceutical liquid filling machine used in syrup production most commonly employs piston technology. Piston fillers handle viscosity changes well, deliver consistent fill volumes across different product formulations, and can run at high speeds on multi-head rotary or inline machines.
Gravity filling is also used for lower-viscosity oral solutions, especially in smaller operations where capital cost is a primary concern. However, as viscosity increases or accuracy requirements tighten, piston filling becomes the more reliable choice.
Key considerations for syrup and oral liquid lines include:
- Foam control during filling to avoid product loss and inaccurate fill levels
- Drip-free nozzle design to prevent residue on bottle threads
- Bottle handling and capping integration for complete line efficiency
- Quick changeover between bottle sizes and product formulations

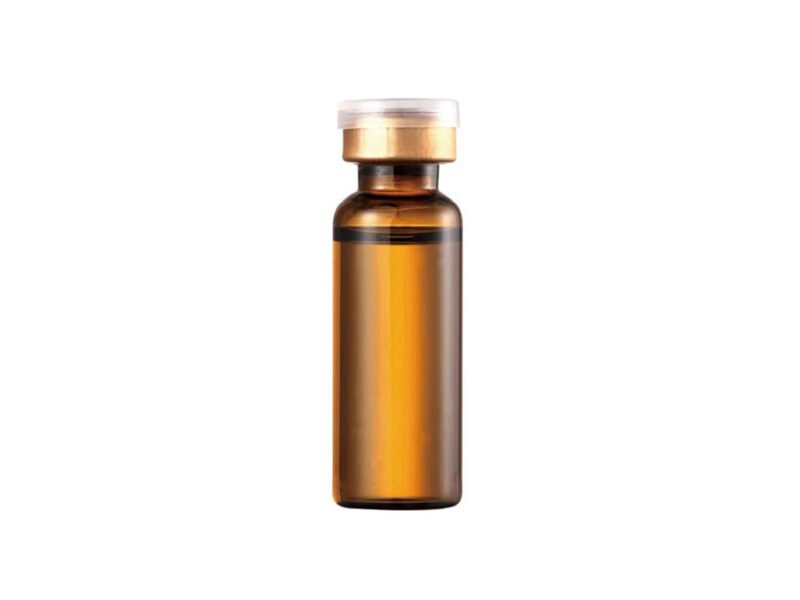

Ampoule and Injectable Solutions
Injectable products place the highest demands on any pharmaceutical liquid filling machine. Ampoules, vials, and pre-filled syringes require extremely precise dosing, sterile processing conditions, and complete documentation for regulatory compliance. Fill volumes can be as small as 0.5 mL or as large as 100 mL, and accuracy tolerances are tight—often ±0.5% or better.
A pharmaceutical liquid filling machine dedicated to ampoule filling typically uses either piston or peristaltic technology, depending on product type and volume. For small-volume ampoules (1–10 mL), peristaltic systems with precision tubing and calibrated pump drives offer excellent accuracy and easy product changeover. For larger volume vials or higher speed operations, piston fillers are more commonly used.
Ampoule filling lines are almost always integrated with washing, sterilizing, filling, and sealing stations in a continuous sequence. The pharmaceutical liquid filling machine itself is just one station in a complete line that includes ampoule washers, dry-heat sterilization tunnels, filling stations, and flame-sealing units. This integration ensures that ampoules remain sterile from the moment they enter the line until they are sealed.
Aseptic Filling for Sterile Products
Aseptic filling is the most demanding application for a pharmaceutical liquid filling machine. In aseptic processing, the product, container, and closure are all sterilized separately and then brought together in a controlled, sterile environment for filling and sealing. This differs from terminal sterilization, where the final filled product is sterilized in its container—a method that cannot be used for heat-sensitive drugs.
A pharmaceutical liquid filling machine operating in an aseptic environment must meet extremely strict requirements. The entire filling zone must be housed in a Class A (ISO 5) cleanroom environment, typically within a laminar airflow hood or isolator system. Operators cannot directly touch product-contact surfaces; all interventions must be performed through glove ports or via automated systems.
Filling technology in aseptic lines is commonly peristaltic or piston-based, with all product-contact parts sterilized in place (SIP) or autoclaved before use. The pharmaceutical liquid filling machine itself must be designed for cleanability, with smooth surfaces, no crevices, and validated cleaning cycles.
Aseptic Cleanroom Requirements
| Cleanroom Class (ISO) | Particle Count (≥0.5 µm/m³) | Typical Application | Common Filling Operations |
|---|---|---|---|
| ISO 5 (Class 100) | 3,520 | Aseptic filling zone | Direct product exposure, stopper handling |
| ISO 7 (Class 10,000) | 352,000 | Aseptic support area | Background cleanroom, equipment access |
| ISO 8 (Class 100,000) | 3,520,000 | Non-aseptic production | Oral liquid filling, syrup bottling |
| Controlled not classified | >3,520,000 | Packaging and warehousing | Final packaging, labeling, storage |
Maintenance and Validation Considerations
A pharmaceutical liquid filling machine is a precision instrument, and its performance depends on consistent maintenance and regular validation. Even the best-designed system will drift out of tolerance if not properly cared for.
Preventive maintenance programs should include regular inspection of all product-contact parts—piston seals, tubing, nozzle tips, and valve assemblies. Wear on these components directly affects fill accuracy and can lead to batch rejection if not caught early. A pharmaceutical liquid filling machine operating in a GMP environment must have documented maintenance procedures and a calibrated spare parts inventory.
Validation is another critical aspect. Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) are required for any pharmaceutical liquid filling machine used in commercial production. These protocols verify that the machine is installed correctly, operates within specified parameters, and consistently produces product that meets quality standards. Periodic revalidation ensures that performance remains acceptable over time.
In-process monitoring is increasingly common on modern machines. Many pharmaceutical liquid filling machine models now include in-line checkweighing systems that automatically verify fill weight for every container, rejecting any that fall outside tolerance. This provides real-time feedback on filling performance and reduces the need for manual sampling, though manual quality checks remain a regulatory requirement.
FAQ
What is the most accurate filling technology for small-volume injectables?
For small-volume injectables (typically 1–10 mL), peristaltic filling with precision-calibrated tubing and pump drives generally delivers the highest accuracy, often within ±0.5% of target volume. Piston fillers are also used, especially for larger vial sizes and higher speed operations.
Can a pharmaceutical liquid filling machine handle both viscous syrups and thin solutions?
Yes, many piston-based pharmaceutical liquid filling machine models can handle a range of viscosities by adjusting stroke parameters and nozzle design. However, extremely wide viscosity ranges may require different fill profiles or even different machine configurations to maintain optimal accuracy and speed.
What cleanroom class is required for aseptic liquid filling?
The direct filling zone (where product is exposed) must be ISO Class 5 (Class 100), typically maintained by unidirectional airflow hoods or isolators. The surrounding background cleanroom is usually ISO Class 7 (Class 10,000), with gowning and material transfer airlocks between classified and unclassified areas.
