Aseptic Vial Filling Line
Aseptic Vial Filling Line

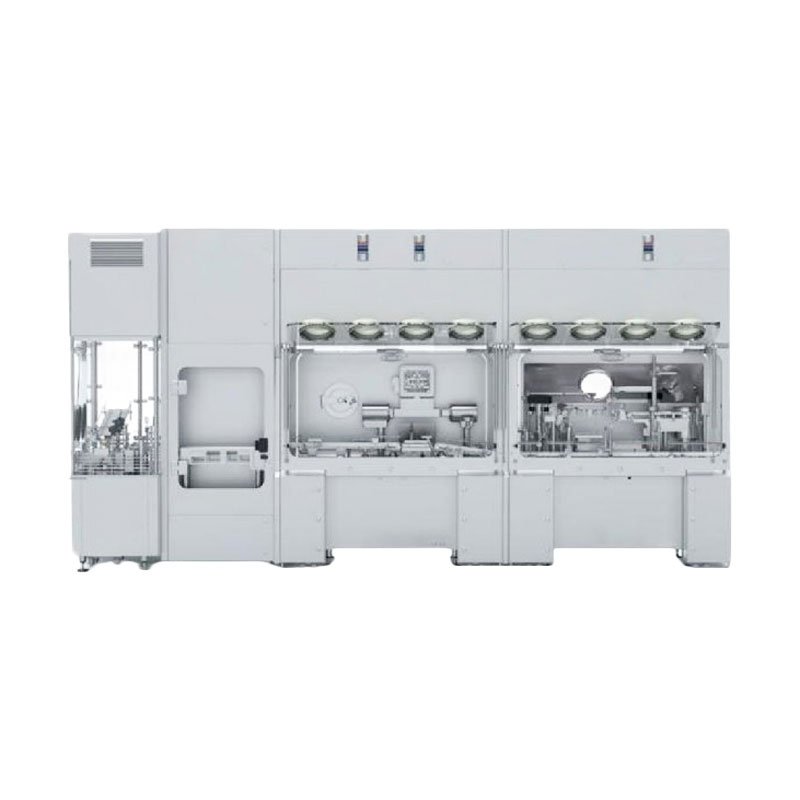

Small-batch R&D and pilot-scale vial aseptic filling line with isolator. Integrated system combining an aseptic isolator, in-line liquid filling machine, stoppering machine, and multifunctional capping/sealing machine. Performs bottle alignment, conveying, filling, stoppering, cap sorting, capping, and sealing. Operates within a Grade A environment with hydrogen peroxide sterilization. Each functional module (filling/stoppering, capping, crimping) can be operated independently.
Features:
1. Aseptic filling in a Grade A environment; automatic shutdown on door opening.
2. PLC control + touchscreen operation, programmable production. No-vial no-fill function.
3. Buffer device between single machines for a stable inline connection.
4. Servo motor-driven filling pump; independent servo steering.
5. Electromagnetic oscillating stopper feeder; pneumatic stoppering.
6. Interchangeable capping heads (screw/crimp); adapts to plastic or aluminum caps.
7. Adjustable cap head height for different bottle heights.
8. Air speed, particle, viable/non-viable particle monitoring.
9. Aseptic gloves and integrity testing system.
10. Bottle-tip rejection function; aluminum chip collection/capture device.
11. Fiber-optic crimp counter for automated yield tracking.
12. High-quality AISI 304/AISI 316 stainless steel and FDA-approved contact materials.
Technical Data:
| Model | 50XWGX-A |
| Capacity (bottles/min) | 20-50 |
| Applicable Bottles | 2-20ml
Plastic or glass bottles |
| Filling Heads | 2 |
| Filling Accuracy | ± 1% |
Applications:
1. Aseptic filling of 2–5 ml vials.
2. Aseptic filling of 20 ml vials.
3. Biologics filling.
4. Liquid pharmaceutical filling.
5. Pre-lyophilization filling and stoppering.
