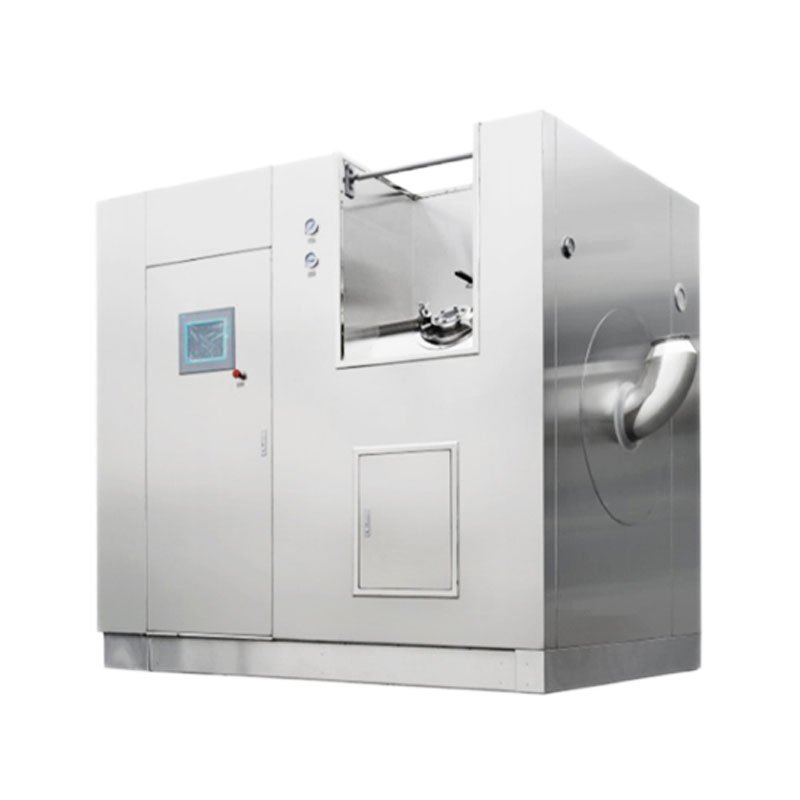

Automatic Aluminum Cap Washing Machine
Automatic Aluminum Cap Washing Machine
Fully automatic rubber stopper / aluminium cap cleaning machine. The complete cleaning cycle: load → coarse wash → air-water mixed rinse → vacuum de-foam → drain → rinse → drain → siliconization → drain → fine wash → drain → steam sterilization → vacuum dry → hot-air dry → cool-down → discharge. Online sterilization, heat-resistant to 120°C. Water source switchable between purified water and water-for-injection. Process includes pure-steam-fed plate heat exchanger via pneumatic ball valve with steam trap and sterile breather. HMI provides: equipment management, production management, operation centre, data monitoring, audit trail (operation records / work reports), recipe management, F0 value calculation, real-time and historical alarms, vacuum leak-test mode with auto-generated reports.
Features:
1. Automated end-to-end rubber-stopper / aluminium-cap prep ready for aseptic filling line.
2. Sterilization with F0 calculation — pharmaceutical-grade SIP.
3. Vacuum leak-test self-validation with auto report.
4. Audit-ready data and alarm logging — GMP compliance.
Technical Data:
| Model | 1YX-Z | 3YX-Z | 7.5YX-Z | 8YX-Z | 10YX-Z | 20YX-Z | 25YX-Z |
| Production Capacity (pcs/time) |
10,000 | 30,000 | 75,000 | 80,000 | 100,000 | 200,000 | 200,000-250,000 |
| Spindle Speed (r/min) |
0.5-8 | 0.5-8 | 0.5-8 | 0.5-8 | 0.5-8 | 0.5-8 | 0.5-8 |
| Drum Size (mm) | ∅=750 L=1420 | ∅=750 L=1420 | ∅=1150 L=1730 | ∅=950 L=1420 | ∅=1050 L=1800 | ∅=1350 L=2170
∅=1050 L=1800 |
∅=1350 L=2170 |
| Power Supply | Custom-made according to the customer’s request | ||||||
| Dimensions (mm) | 2700*1850*2500 | 2700*1850*2500 | 3300*2300*2600 | 2750*2050*2500 | 3300*2150*2600 | 3850*2400*2700 | 3850*2400*2700 |
| Weight (kg) | 3000 | 3000 | 4500 | 3500 | 4000 | 5500 | 5500 |
Applications:
1. Rubber stopper cleaning + siliconization + sterilization.
2. Aluminium cap cleaning + sterilization.
3. Sterile-filling-line preparation (powder-for-injection, lyophilised powder, water-for-injection, oral liquid, large-volume infusion).
