Automatic Aerosol Can Filling Machine
Automatic Aerosol Can Filling Machine

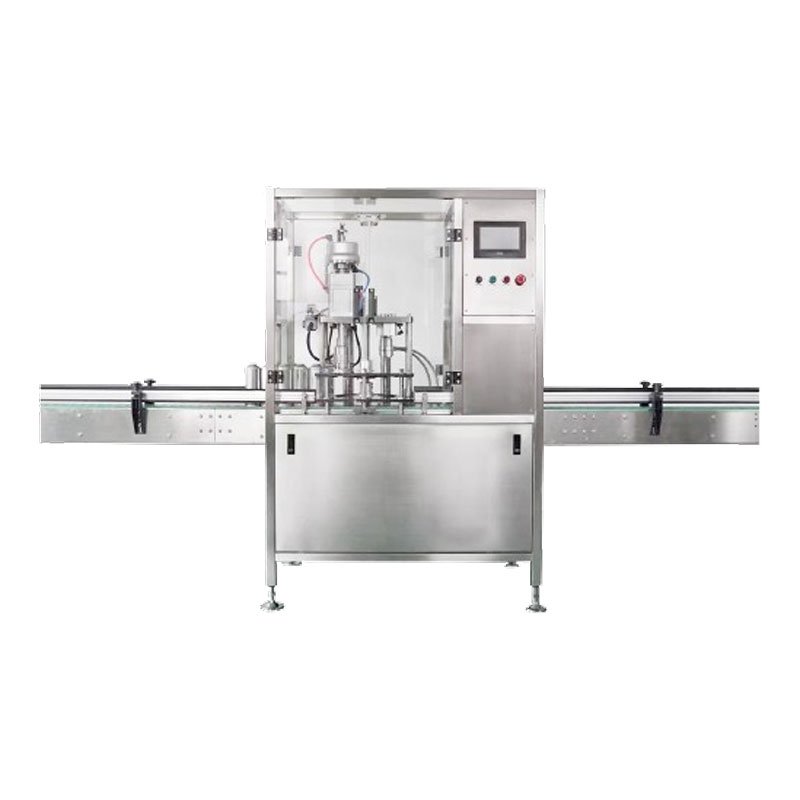

A fully automatic aerosol filling line purpose-built for filling high-purity gases into aerosol cans with 1-inch valves. The standard line consists of: an automatic can pusher (explosion-proof drive), a 2-head displacement-fill + crimp unit (with integrated internal-pressure tester), and a 10 m conveyor with packing table.
Features:
1. Purpose-built for high-purity gas filling — minimal purity loss.
2. Integrated pressure detection saves the customer the cost of a separate machine.
3. Full explosion-proof design meets safety requirements for oxygen and hazardous gases.
4. Displacement-fill technology: purity loss ≤0.1%; fill accuracy ±1%; product purity ≥94–99.6%.
5. PLC + touchscreen control (crimp/fill section); SMC + Xinje pneumatic controls (rest of line).
Technical Data:
| Model | 25EYQW-A | 35EYQW-A | 40EYQW-A |
| Capacity (cans/min) | 20-25 | 25-35 | 45-50 |
| Working Air Pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Filling Accuracy | ±1% | ±1% | ±1% |
Applications:
1. Healthcare / medical-grade oxygen aerosol filling.
2. High-purity gas aerosol dispensing.
3. 1-inch valve aerosol two-piece crimp and fill.
