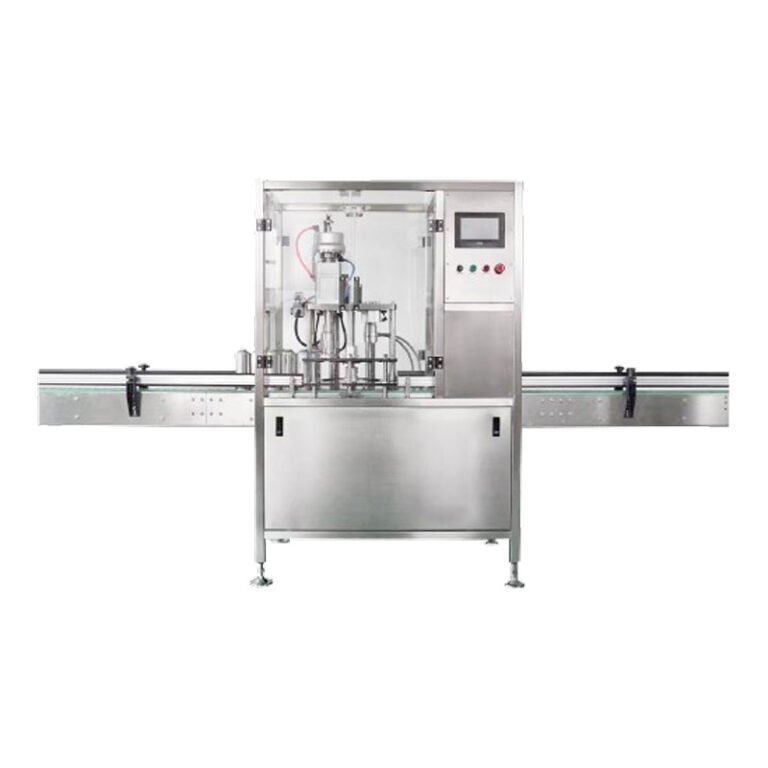

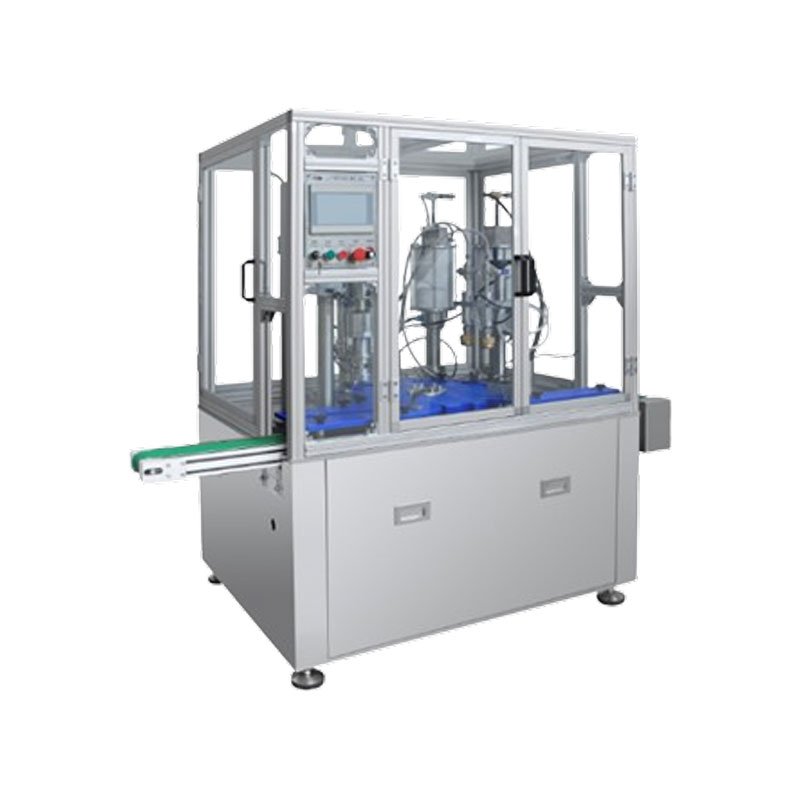

Automatic Aerosol Filling Machine
Automatic Aerosol Filling Machine
Aerosol cans are loaded onto the sorting/feeding table, where an explosion-proof motor automatically arranges them sequentially on the conveyor without jamming or tipping. Cans pass under 2 filling heads, which dispense liquid. A stabilizing (vapor-tap purge) head removes residual air. The sealing head crimps the valve onto the can — its guidance device ensures high seal quality. Then, 2 inflating heads pressurize the can with propellant via 2 booster pumps and 1 gas storage tank with an energy accumulator (the booster prevents bubble formation in the tank). All operations are pneumatic, controlled by SMC valves and cylinders. Mold change required for different can diameters.
Features:
1. Aerosol-grade explosion-proof motor for safety.
2. Booster pump + accumulator design eliminates bubbles in the can.
3. Fully automatic feeding-filling-sealing-inflating production line.
4. Sealing head with guidance device — high seal quality.
5. Inflating head with guidance device — low propellant leakage.
6. Booster pumps + energy-accumulator gas tank prevent bubbles.
7. All pneumatic control with SMC main elements.
8. 304 SS conveyor, 304 SS body, food-grade 304 SS liquid path.
Technical Data:
| Model | 2400QWJX-A | 6000QWJX-A |
| Aerosol filling capacity (ml) | 10-250 | 10-250 |
| Aerosol Inflating Capacity (ml) | 10-250 | 30-1000 |
| Filling Speed (cans/min) | 30-40 | 80-90 |
| Filling Accuracy | ≤± 1% | ≤± 1% |
Applications:
1. Aerosol cans (insecticide, lubricant, paint, personal care, etc.) Φ35–70 mm.
2. Liquefied propellant aerosol filling 10–250 ml.
