Automatic Alu Alu Strip Packing Machine
Automatic Alu Alu Strip Packing Machine

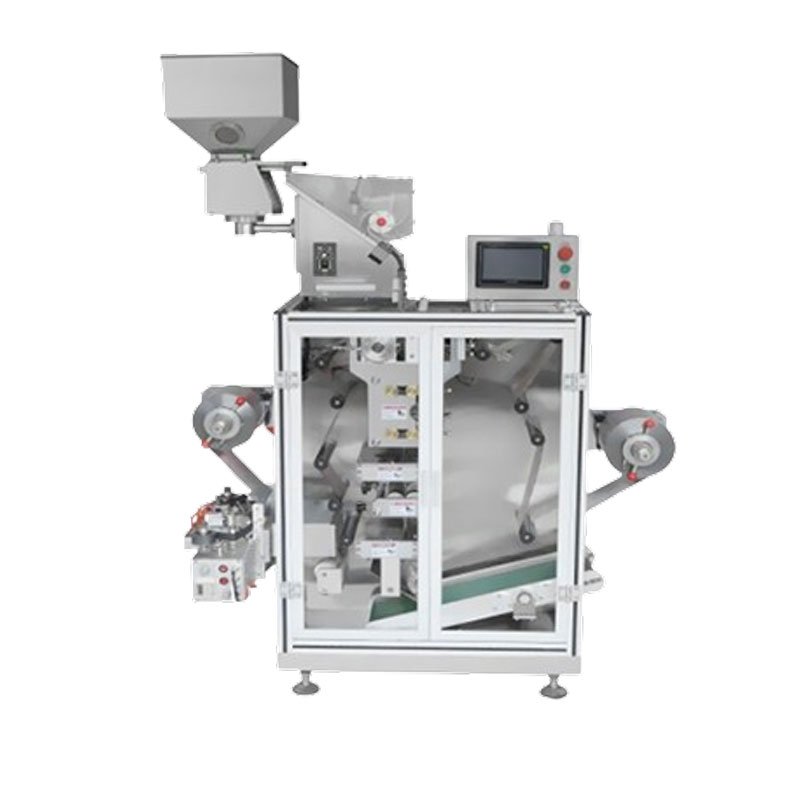

The RP-F Series is an automatic Alu-Alu strip blister packing system designed to seal small solid products into striped pockets for enhanced protection, typically used for packaging medicinal tablets into flat aluminum strips. Built with a 304 stainless steel housing, it features PLC and touchscreen controls, stepless frequency conversion speed regulation, and analog temperature control for the sealing roller mold. Optional functions include solid-state mold wheel coding and picture-text version matching. The series offers multiple models with outputs ranging from 1,800 to 66,000 pieces per hour, cutting frequencies of 600–4,800 cuts/hr, and maximum film widths of 160–350 mm.
Features:
1. Welded stainless steel 304 forms the equipment shell, delivering sturdy construction and hygienic operation for aluminum-aluminum strip packaging processes.
2. Featuring PLC and touch screen control, the machine delivers accurate parameter settings and user-friendly operation for efficient alu-alu strip packaging.
3. The machine adopts frequency converter step-less speed regulation, allowing flexible adjustment of production speed to suit varying output requirements in aluminum strip packaging.
4. The sealing roll mold temperature is regulated by an analog temperature module, ensuring consistent and reliable sealing quality throughout aluminum strip packaging operations.
5. The machine offers optional functions including solid-state mold wheel coding and picture-text version matching, enhancing traceability and packaging flexibility in strip packaging.
Technical Data:
| Model | 160RP-F | 210RP-F | 260RP-F | 350RP-F |
| Capacity (pcs/hr) | 4800 | 1800-4800 | 66000 | / |
| Cutting Frequency (cut/hr) | 2400-4800 | 600-1200 | 2400-4800 | 600-3600 |
| Compressed Air | 0.45 MPa ≥0.2m³/min |
0.45 MPa ≥0.25m³/min |
0.45 MPa ≥0.2m³/min |
0.45 MPa ≥0.2m³/min |
| Max. Film Width (mm) | 160 | / | 250 | 350 |
| Film Roll Diameter (mm) | 300 | / | 300 | 300 |
| Total Power (kW) | Custom-made according to the customer’s request | |||
| Weight (kg) | 700 | 2000 | 1100 | 1000 |
| Dimension (mm) | 1300*750*1700 | 5900*700*l600 | 1600*850*1900 | 1600*950*1900 |
Applications:
1. Pharmaceutical Tablet & Capsule Packaging: Ideal for strip packing tablets and capsules in the pharmaceutical industry for moisture-proof and light-resistant preservation
2. Healthcare & Nutraceutical Products: Suitable for packaging health supplements, vitamins, and nutraceutical tablets in sealed aluminum strips for extended shelf life
3. Electronic Component Strip Packing: Capable of packaging small electronic components in tablet form into protective aluminum strips for safe storage and transport
4. Food & Confectionery Applications: Widely used for strip packing candies, pills, and solid food items in the chemical, food, and healthcare industries
