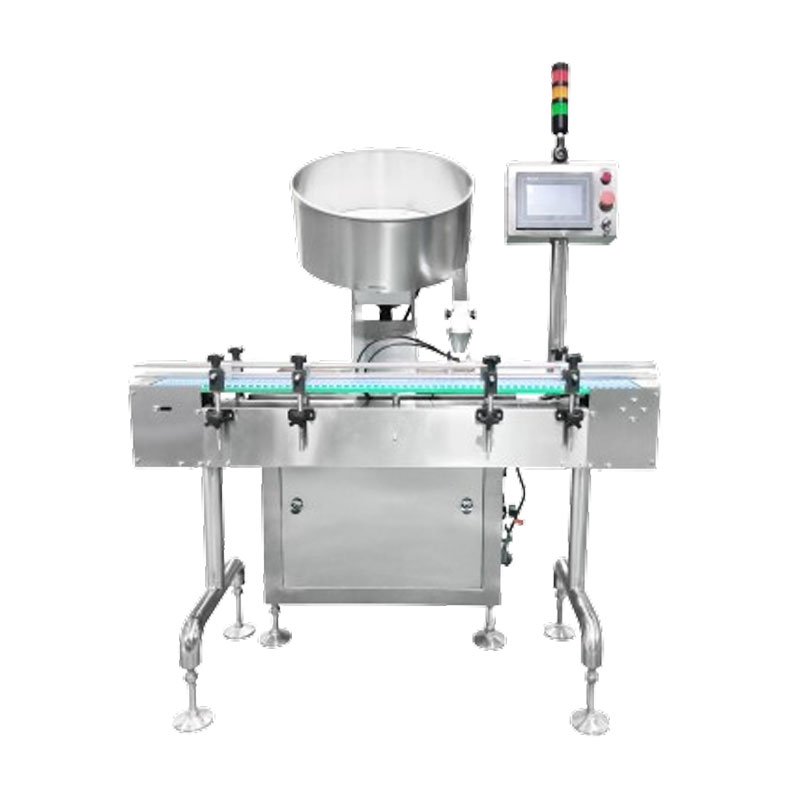

Automatic Desiccant Canister Inserter
Automatic Desiccant Canister Inserter
Automatic Desiccant Canister Inserter automatically feeds, counts, and inserts cylindrical desiccant canisters into bottles of various shapes (round, oval, square, flat-square). The number of canisters inserted per bottle is user-configurable. The machine can run independently or be integrated into an automated packaging line (bottle unscrambler, tablet/capsule counting machine, capping machine, sealing and labeling machine). The machine body is made of high-quality stainless steel with compact size, simple structure, and easy maintenance.
Features:
1. Fully automatic operation — no dedicated operator needed, saving labor costs.
2. Automatic alarm and multi-function detection (no bottle, no desiccant, fault self-diagnosis) ensure continuity and accuracy.
3. Configurable number of desiccants per bottle.
4. Supports round, flat-round, square, and flat-square bottle types and multiple desiccant sizes.
Technical Data:
| Model | ZGS |
| Application | Round, square, oval, and other special-shaped bottles |
| Capacity (bottles/hr) | 1800-4800 |
| Applicable Bottle Size (mm) |
Diameter: Φ20-100 Height: 30-180 |
| Power Supply | Custom-made according to the customer’s request |
| Air Source | 0.6MPa 3.5L/min |
| Weight (kg) | 280 |
| Overall Dimension (L*W*H mm) |
1360*750*1500 |
Applications:
1. Pharmaceutical.
2. Health supplements.
3. Food.
4. Electronics.
5. Chemical.
