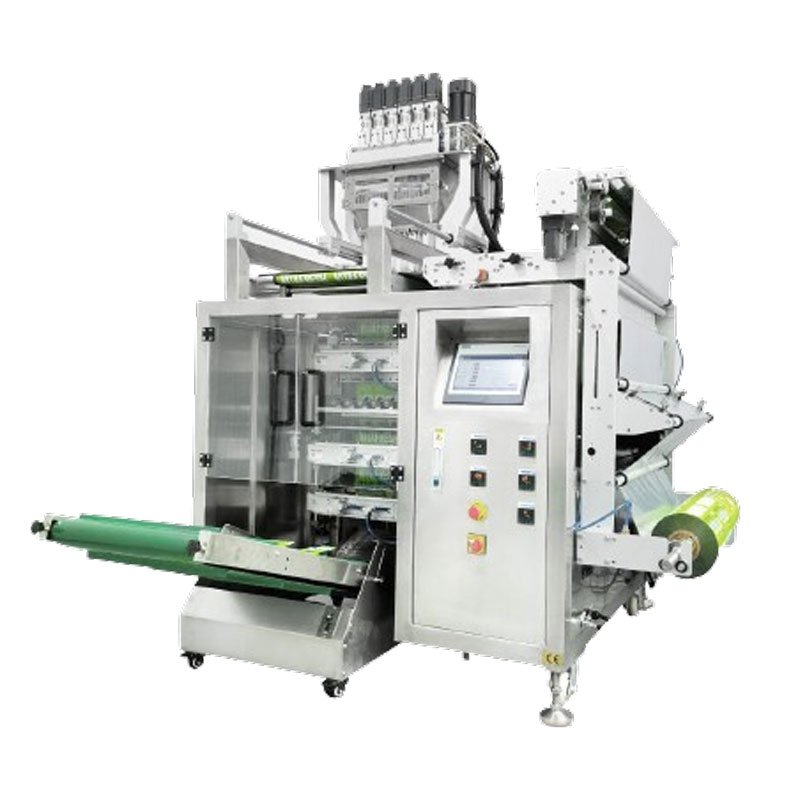

Automatic Multi Lane Sachet Packaging Machine
Automatic Multi Lane Sachet Packaging Machine
The FDB-X is an automatic multi-lane sachet packaging system engineered to fill powdered products into individual pouches, serving the pharmaceutical, food, and daily chemical sectors. By running several lanes simultaneously, it substantially boosts output. The machine performs bag forming, dosing, sealing, cutting, heating, and date/lot coding in a single continuous operation, minimizing manual intervention. A PLC and photoelectric control setup guarantees accurate filling and sealing with negligible variance. Product-contact components are made of 304 stainless steel, meeting GMP standards. Bag length can be adjusted without mold changes, and sealing parameters are configurable for various films. Available in 2 to 12 lanes with speeds up to 500 bags/min, it offers advanced performance, low noise, and a compact footprint.
Features:
1. The machine features multi-lane sachet filling and sealing capabilities, enabling simultaneous packaging of powder materials across several lanes for high production efficiency.
2. Built with high-quality stainless steel and meeting GMP standards, the machine guarantees hygienic, dependable operation for pharmaceutical and food powder packaging applications.
3. The machine adopts screw feeding with minimal weight error and an auger filler for high accuracy, ensuring precise powder dosing into each sachet.
4. Equipped with a PLC control system and a dual-language English/Chinese display screen, plus a photoelectric tracking system with two-way compensation for accurate printing and counting.
Technical Data:
| Model | SED-180-2FDB-X | SED-480-4FDB-X | SED-480-6FDB-X | SED-680-4FDB-X | SED-680-5FDB-X | SED-680-8FDB-X | SED-980-6FDB-X | SED-980-10FDB-X | SED-980-12FDB-X | SED-1300-6FDB-X | SED-1300-7FDB-X |
| Number of Lanes | 2 | 4 | 6 | 4 | 5 | 8 | 6 | 10 | 8 | 6 | 7 |
| Bag Size (mm) | 30-160 (L) 15-40 (W) |
40-180 (L) 20-70 (W) |
40-180 (L) 20-70 (W) |
30-180 (L) 20-80 (W) |
30-180 (L) 50 (W) |
30-180 (L) 20-40 (W) |
30-160 (L) 20-80 (W) |
30-180 (L) 20-40 (W) |
30-180 (L) 20-55 (W) |
30-160 (L) 20-106 (W) |
30-160 (L) 20-90 (W) |
| Max width of roll film (mm) | 180 | 480 | 480 | 680 | 680 | 680 | 980 | 980 | |||
| Packing Speed (bags/min) | 40-90 | 80-200 | 80-200 | 80-200 | 125-175 | 280-360 | 150-330 | 200-500 | |||
| Power | Custom-made according to the customer’s request | ||||||||||
| Dimension (mm) | 1346*880*2630 | 1650*980*3200 | 1650*980*3200 | 2072*1924*3627 | 1480*2050*3350 | 1480*2050*3350 | 1400*1500*2750 | 2300*2200*3696 | 2100*1850*3550 | 1500*1700*2650 | 1400*1500*2750 |
| Weight (kg) | 650 | 850 | 850 | 1500 | 1300 | 1300 | 1050 | 1600 | 1800 | 1500 | 1500 |
Applications:
1. Food & Beverage Industry: Packaging instant coffee, milk powder, drink mixes, sugar, and spices into single-serve stick sachets.
2. Pharmaceutical & Nutraceutical Sector: Filling powdered medicine, probiotics, and granulated drugs into sealed unit-dose sachets.
3. Daily Chemical & Personal Care: Producing small sachets for cosmetics, detergents, shampoo, and other daily chemical powders.
4. Chemical & Agricultural Applications: Packaging industrial additives, pesticides, and animal feed powders into precise multi-lane sachets.
