Name: Vertical Pillow Pouch Packaging Machine for Granule - Innoval Pharma
SKU: KLB-L

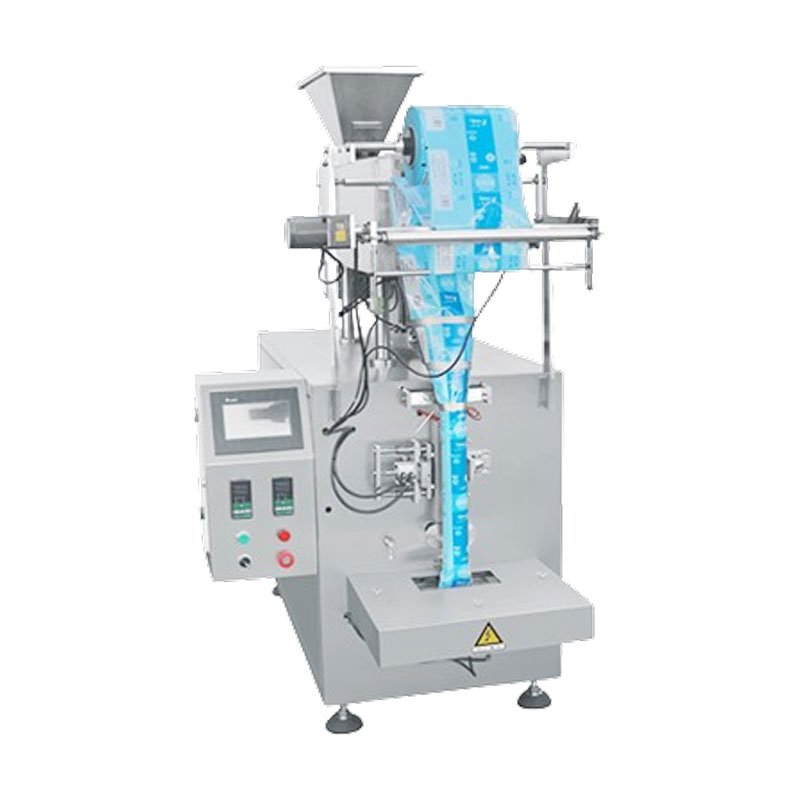

Vertical Pillow Pouch Packaging Machine for Granule

SKU KLB-L Category Bag Packing Machine

The KLB Series is a vertical form-fill-seal system engineered for pillow-style pouches containing free-flowing granular materials such as pharmaceutical granules, salt, seeds, and desiccants. It integrates weighing, pouch forming, filling, sealing, cutting, counting, and coding into one automated process. Product-contact components are made of food-grade SUS304 stainless steel, and the machine meets GMP requirements. A PLC controller with photoelectric tracking ensures reliable operation, while an overheat protection feature automatically halts production to safeguard seal integrity. Pouch dimensions and fill volumes can be adjusted without changing molds. The series covers outputs from 1,200 to 6,300 bags per hour across multiple models.

Features:

1. All product-contact parts are constructed from food-grade SUS304 stainless steel, ensuring hygienic and safe packaging for pharmaceutical, food, and chemical granular products.

2. Equipped with a PLC controller and photoelectric tracking system, the machine ensures precise control and accurate positioning throughout the granular pillow pouch packaging process.

3. The machine automatically performs weighing, bag making, filling, sealing, cutting, counting, and printing, completing the entire granular pillow pouch packaging process without manual intervention.

4. The machine automatically stops when overheated to protect sealing quality and minimize waste, ensuring reliable and consistent granular pillow pouch packaging results.

5. Fast speed, stable operation, and low noise are combined with electronic speed adjustment within the rated range, plus easy adaptation to different pouch sizes and filling volumes.

Technical Data:

Model	100KLB-L	100KLB1-L	100KLB2-L	150KLB-L	200KLB-L	200KLB1-L	250KLB-L	350KLB-L	400KLB-L	600KLB-L	600KLB1-L
Packing Speed (bags/hr)	1200-3900	1200-1800	1500-2400	1500-6300	2400-4200	1800-3000	1800-3600	1200-3000	1200-2400	12-18(15kg)	3600-4500
Bag Size (mm)	L: 30-160 W: 30-100	L: 30-160 W: 30-100	L: 30-155 W: 30-100	L: 50-180 W: 50-150	L: 100-200 W: 60-200	L: 60-200 W: 100-200	L: 100-450 W: 100-250	L: 200-400 W: 200-350	L: 80-450 W: 80-400	L: 400-800 W: 400-600	L: 350-700 W: 350-600
Power Supply	Custom-made according to the customer’s request
*Dimensions (LWH mm)*	11008501800	11008501800	6257501560	96614051318	400030004000	400030004000	170012001900	420032004600	/	/	/
Weight (kg)	220	300	180	350	900	900	550	1300	500	2200	/

Applications:

1. Food Industry Packaging: Suitable for packaging puffed food, nuts, candy, coffee beans, potato chips, and dried fruits in pillow pouches.

2. Pharmaceutical Granule Packaging: Ideal for packing loose, non-sticky granule materials such as powdered and granular pharmaceuticals, capsules, tablets, and health foods.

3. Chemical & Daily Chemical Products: Capable of packaging granular laundry detergent, fertilizers, pesticides, seeds, and other chemical granules for various industrial applications.

4. Multi-Industry Granule Solutions: Applied across food, medicine, and daily chemical industries for packaging granules, powders, and irregular-shaped materials in pillow pouches.
