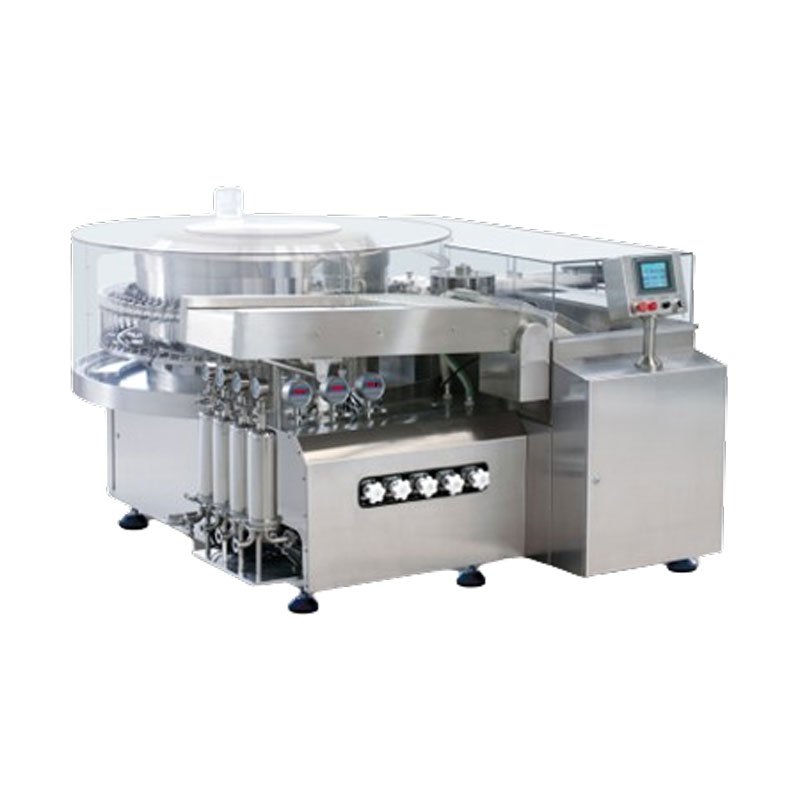

Automatic Ultrasonic Glass Bottle Washing Machine
Automatic Ultrasonic Glass Bottle Washing Machine
The Vertical Ultrasonic Bottle Washing Machine is primarily designed for the pharmaceutical industry for washing molded and regulated antibiotic glass bottles, ampoules, and oral liquid bottles. It features a vertical drum structure using a manipulator to grip and invert bottles while spray nozzles perform reciprocating tracking. The machine uses ultrasonic washing combined with alternating water and compressed air jet flushing to clean containers one by one. The entire process is automatically controlled, achieving high cleaning quality, low bottle breakage rate, wide versatility, and stable operation. Water and gas pipelines are not cross-contaminated, meeting GMP quality certification requirements. The machine can operate standalone or be integrated into a fully automatic production line with a mesh-belt tunnel oven, drawing-sealing machine, filling-stoppering machine, and screw dispensing machine.
Features:
1. Vertical drum structure with manipulator bottle inversion and reciprocating nozzle tracking.
2. Combined ultrasonic cavitation rough wash + alternating WFI/compressed-air fine wash.
3. Automatic full-process control; high cleaning quality; low bottle breakage rate.
4. Meets GMP requirements; no cross-contamination between water and gas lines.
5. Suitable for ampoules, vials, antibiotic bottles, and oral liquid bottles (1-50 ml).
6. Can be integrated with tunnel oven, filling, and sealing production lines.
Technical Data:
| Model | 300CXP |
| Specification (ml) | 1-50 |
| Capacity (bottles/min) | 100-120 |
| Power (kW) | 3 |
| Voltage (V) | 380/220 |
| Water Pressure (MPa) | 0.3-0.5 |
| Water Consumption (m³/hr) | 1-2 |
| Air Pressure (MPa) | 0.6-0.8 |
| Air Consumption (m³/hr) | 30-50 |
| Dimensions (L*W*H mm) | 2300*2300*1500 |
Applications:
1. Washing of ampoules, antibiotic vials, and oral liquid bottles in pharmaceutical manufacturing.
2. Upstream washing step before the tunnel sterilization oven in aseptic filling lines.
