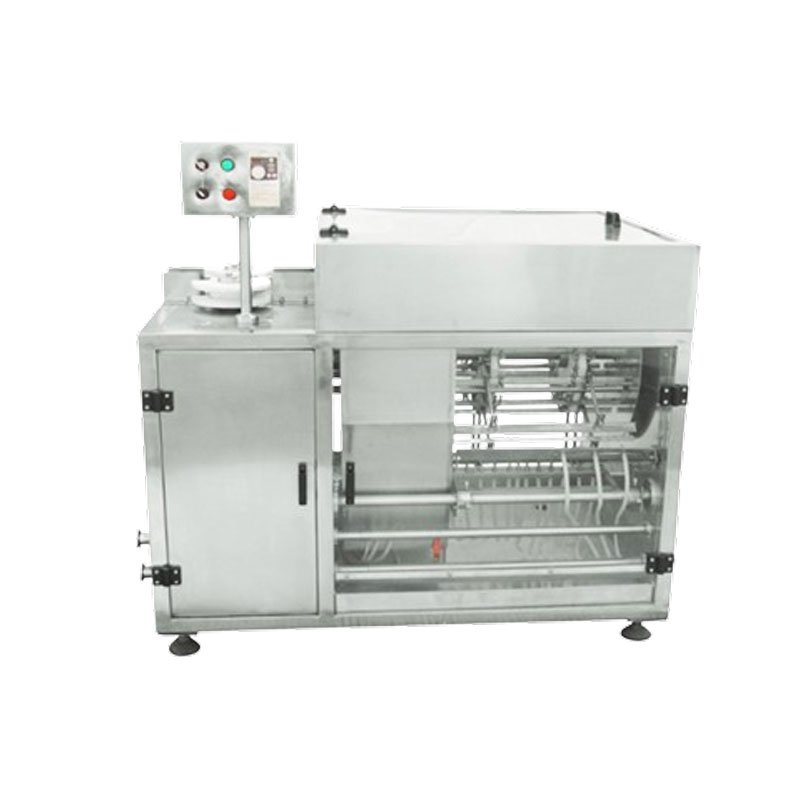

High Pressure Automatic Bottle Washer
High Pressure Automatic Bottle Washer
The ultrasonic drum-type bottle washer for oral liquid and pharmaceutical glass bottles, suitable for 10-100 ml (customizable to 200 ml) round or shaped containers. It uses a ‘three-water-one-air’ process: ultrasonic pre-wash, two needle washes (tap water and purified water), and two air rinses, followed by high-pressure clean air to atomize residual droplets. All liquid-contact parts are 316L stainless steel, with the entire work zone enclosed in transparent plexiglass, meeting GMP requirements for pharmaceutical production.
Features:
1. Ultrasonic pre-wash + one tap water rinse + one purified water rinse + two air blasts.
2. Nozzle-to-opening rinsing ensures thorough cleaning of both bottle interiors and exteriors.
3. High-pressure clean air breaks down and removes residual water droplets inside the bottles.
4. Liquid-contact parts made of 316L stainless steel; non-toxic and corrosion-resistant.
5. Fully enclosed acrylic workspace prevents external contamination.
6. PLC, touchscreen, and variable-frequency drive control allow for adjustable production capacity.
7. Compliant with GMP standards and validation requirements.
Technical Data:
| Model | 16CXP |
| Application | 1. Round bottle 2. Shaped bottle 3. Other bottles customized according to customer requirements |
| Applicable Specifications | 10-100ml (customized according to customer requirements) |
| Production Capacity (bottles/hr) | 3000-3600 |
| Voltage | 220V |
| Water Consumption and Pressure Consumption | 0.6-1t/hr, 0.25MPa |
| Machine Size (L*W*H mm) | 1600*900*1200 |
| Machine Weight (kg) | 300 |
Applications:
1. Pharmaceuticals / Liquid Preparations.
2. Oral Liquid Production.
3. Cleaning of Liquid Bottles for Health Supplements.
