Electric Lifting Vacuum Homogenizer
Electric Lifting Vacuum Homogenizer

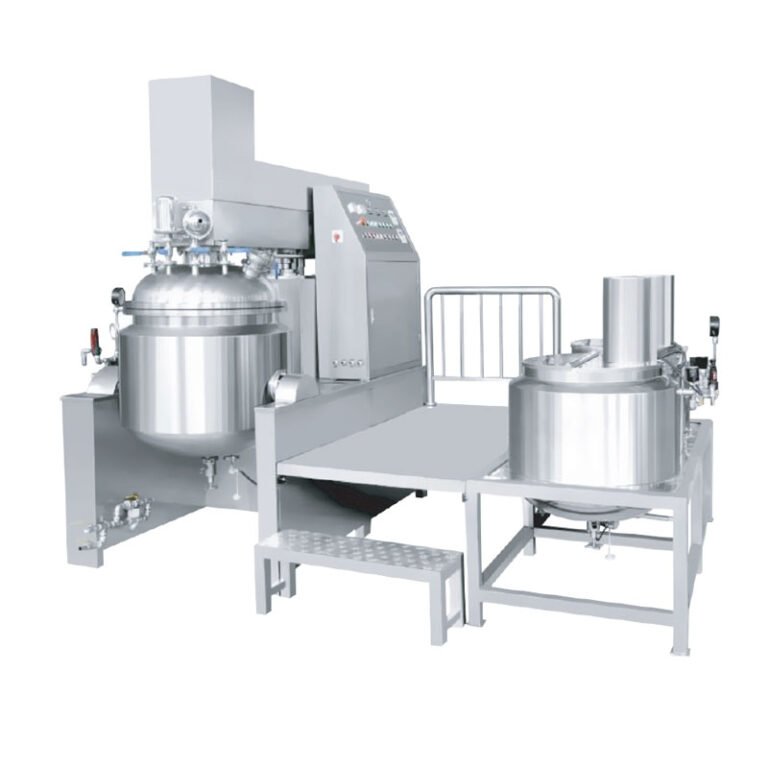

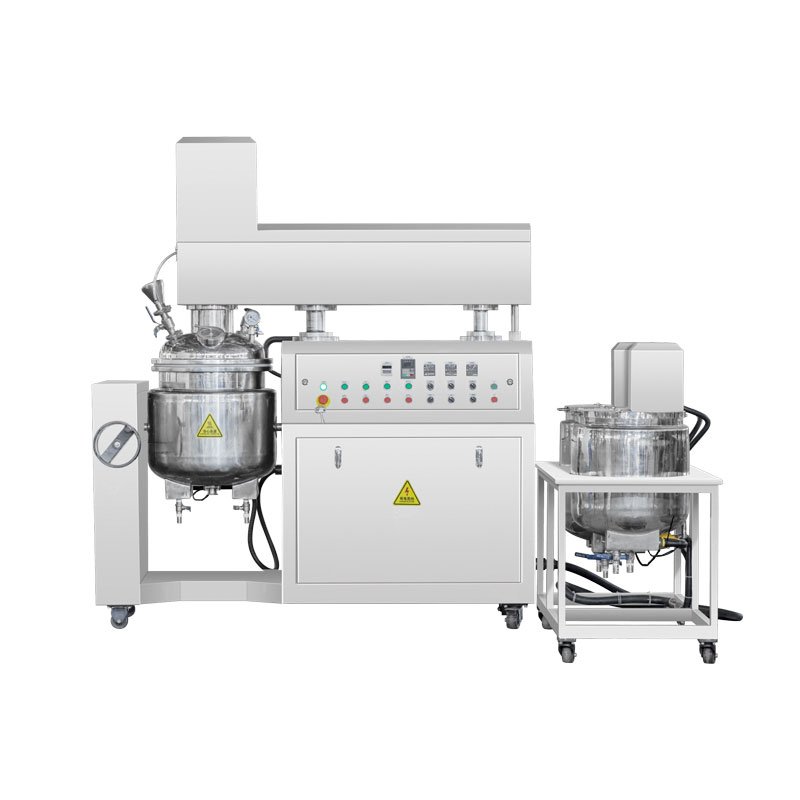

Vacuum Homogenizing Emulsifier Skid. Composed of an oil pot, a water pot, a vacuum homogenizing emulsifier, heating system, agitation system, vacuum system, electric lid lift, control cabinet and piping — suited for high-end skincare cream production.
Features:
1. German-technology multi-stage rotor/stator delivers 0.2–0.6 μm emulsion droplets.
2. Three-pot skid in compact footprint with vacuum-suction phase transfer.
3. Choice of 304 (cosmetic) or 316L (pharma) construction.
4. Borkang vacuum pump with degassing improves homogenization quality.
5. Direct-to-filler bottom discharge eliminates pumping for downstream filling.
Technical Data:
| Model | 5RZ-D | 10RZ-D | 20RZ-D | 50RZ-D | 100RZ-D | 150RZ-D | 1000RZ-D |
| Design Capacity (L) |
6 | 13 | 25 | 60 | 120 | 180 | 1300 |
| Working Capacity (L) |
5 (min. 2) | 10 (min. 3) | 20 (min. 6) | 50 | 100 | 150 | 1000 |
| Motor Speed (rpm) |
2900 | 2900 | 2900 | 3500 | 2900 | 2900 | 3200 |
| Heating Method | Electric heating |
Electric heating |
Steam heating/ Electric heating |
Steam heating/ Electric heating |
Steam heating/ Electric heating |
Steam heating/ Electric heating |
Steam heating |
| Dimension (mm) | 950*600*1800 | 1100*600*2000 | 1520*625*1960 | 1810*650*2750 | 2100*750*2950 | 2400*900*2400–3200 | 2400*2200*3000 |
| Weight (kg) | 300 | 300 | 450 | / | / | / | 2000 |
Applications:
1. High-end skincare creams and lotions.
2. Cosmetic emulsions.
3. Pharmaceutical creams (316L variant).
4. Pilot and lab-scale R&D.
