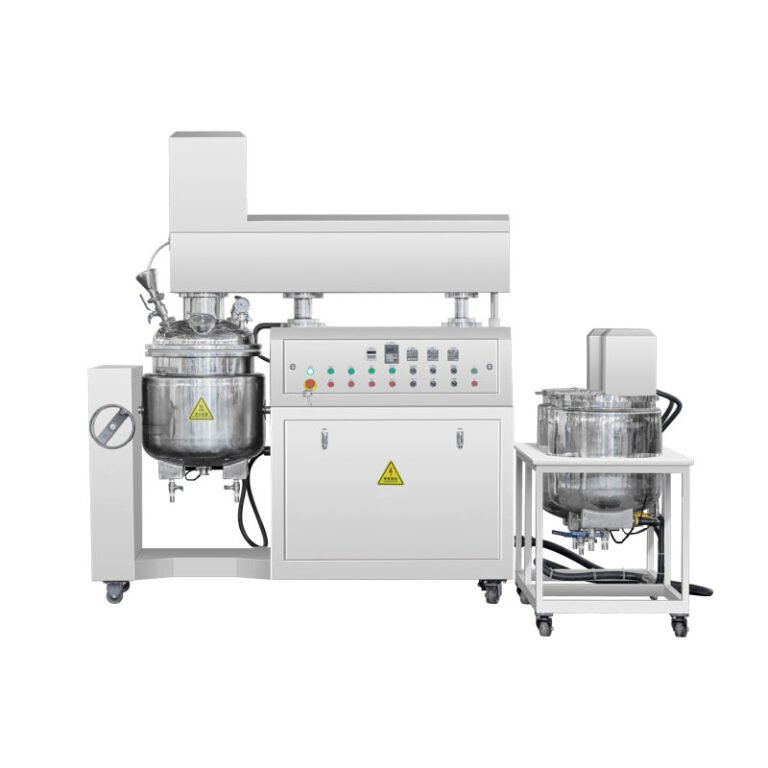

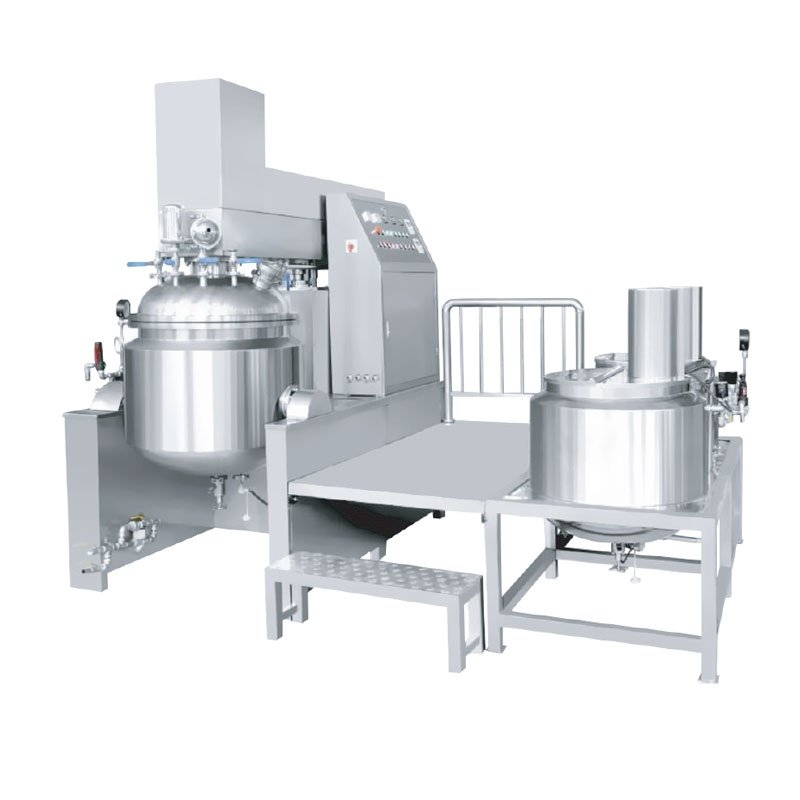

Vacuum Homogeneous Emulsifying Machine

SKU RZ-A Category Ointment

Phase ingredients are loaded into the jacketed pot. The hydraulic lift raises/lowers the lid (interlocked with vacuum). The frame anchor mixer with PTFE wall scrapers and counter-rotating centre paddle mixes and prevents wall fouling; simultaneously the inline high-shear homogenizer with laser-cut rotor/stator applies intense hydraulic shear to reduce droplet size. The electric heater warms the jacket; a sensor and Siemens module maintain set temperature. The rotary-vane vacuum pump draws vacuum to de-foam the emulsion and improve homogenisation. Safety interlocks prevent lid lifting under vacuum and prevent mixers starting during lid travel.

Features:

1. Fine, stable emulsions from premium SUS316L + sanitary 300U polish + vacuum.

2. PTFE wall + bottom scrapers prevent burn-on and improve mix homogeneity.

3. High-shear homogenizer with laser-cut rotor/stator for sub-micron droplets.

4. Safety interlocks reduce operator risk.

5. Top-grade brands: Siemens motor control, Baosteel 316L/304 stainless.

Technical Data:

Model	5RZ-A	20RZ-A	30RZ-A	50RZ-A	100RZ-A	150RZ-A	200RZ-A	300RZ-A	500RZ-A	1300RZ-A	2000RZ-A
Design Volume (L)	6	25	50	65	130	200	250	350	650	1300	2500
Working Volume (L)	5	20	30	50	100	150	200	300	500	1000	2000
Power	Custom-made according to the customer’s request

Applications:

1. Cream and lotion manufacturing (cosmetic, OTC pharma).
2. Ointment, gel and topical preparation production.
3. Emulsion-based food (mayonnaise, sauces) production.
4. Pilot / R&D scale lab emulsification.
