Gummy Making Machine
Gummy Making Machine

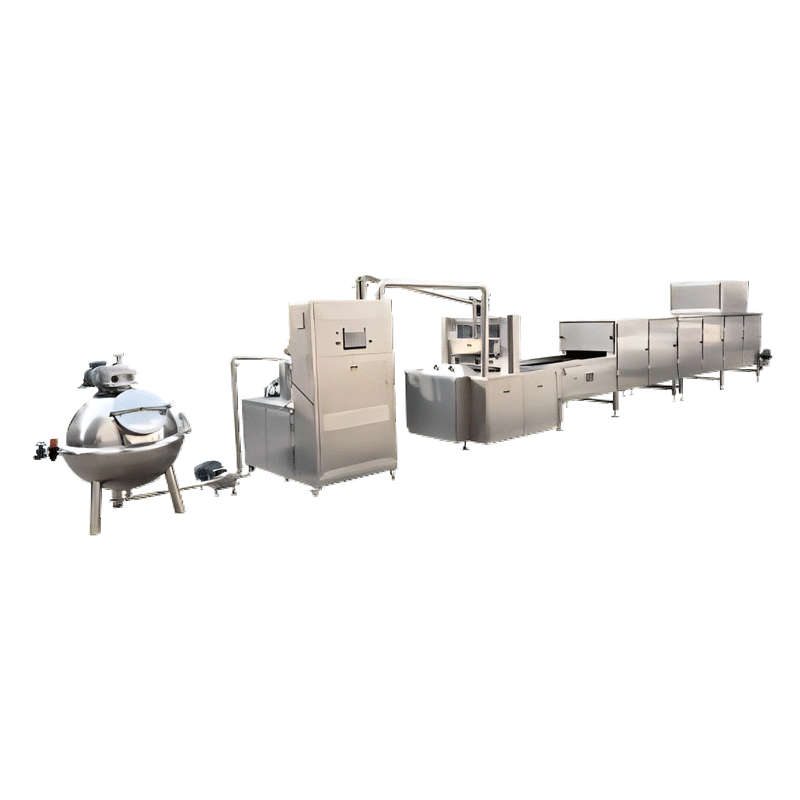

Fully Automatic Gummy Depositing Production Line is able to do continuous production of soft gummy candy. Electric heating throughout — no steam required for cookers.
Process sequence: sugar dissolving → cooking → conveying → gelatin dissolving → conveying → mixing/filtering → temporary storage → mixing with colorants/flavors → casting/molding → cooling → demolding → conveying → drying → optional coating/panning.
Features:
1. Touchscreen-controlled depositor with online recipe and speed adjustment.
2. All-electric heating — no boiler or steam infrastructure required.
3. Industrial-grade gummy production with modular add-ons (drying, coating).
4. Casting speed is fully touchscreen-adjustable.
5. PLC-controlled insulated storage tank with stirring, auto temperature, and double-wall.
6. 304 SS construction throughout; food-grade pump internals; PTFE-coated molds.
7. Complete process from sugar dissolving to demolding in one integrated line.
Technical Data:
| Model | 50RTJX-E | 100RTJX-E | 150RTJX-E | 600RTJX-E |
| Production Capacity (kg/hr) |
50 | 80-100 | 150 | 500-600 |
| Stroke Speed (n/min) | 25-45 | 25-45 | 25-45 | 25-45 |
| Compressor Air Consumption (m³/min) |
1.6 | 1.6 | 1.6 | 1.6 |
| Compressor Air Pressure (Mpa) |
0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Power Supply | Custom-made according to the customer’s request | |||
| Working Environment | Temperature: 20-25 ℃ Humidity: 50% |
Temperature: 20-25 ℃ Humidity: 50% |
Temperature: 20-25 ℃ Humidity: 50% |
Temperature: 20-25 ℃ Humidity: 50% |
Applications:
1. Soft gummy candy production.
2. Health food gummy supplements.
3. Confectionery manufacturing.
