Gummy Making Machine
Gummy Making Machine

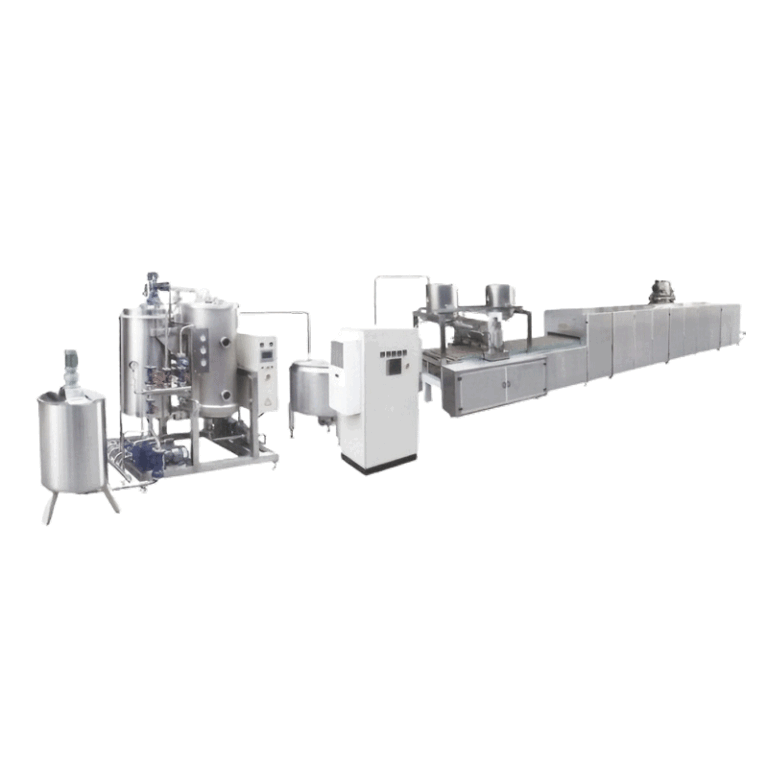

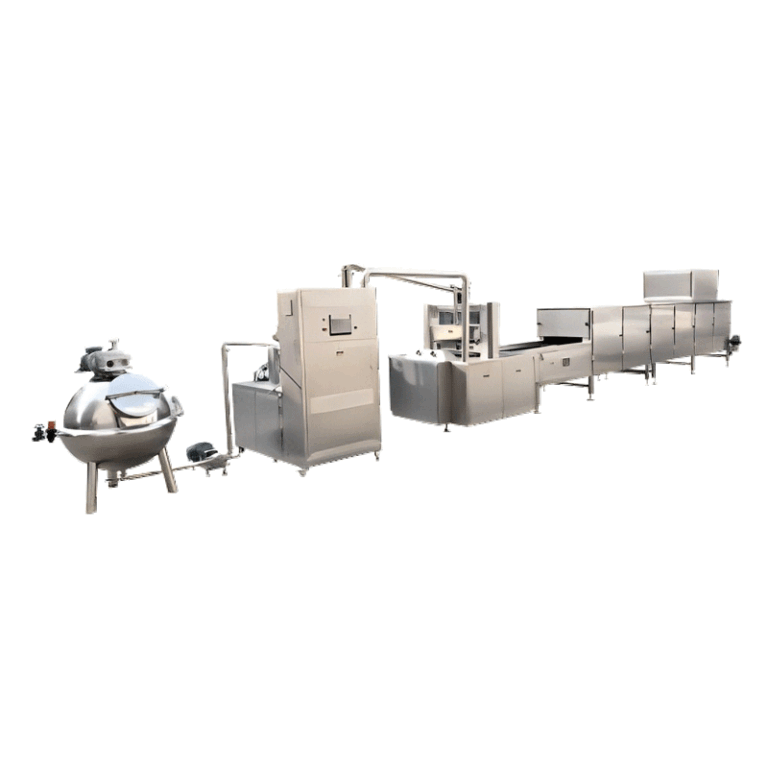

The sugar and gelatin syrup is cooked and mixed within a vacuum mixing tank. A circulation pump conveys the syrup to a lifting-type mixer, after which colorants and flavorings are blended in within a temperature-controlled holding tank. Utilizing a PLC+PID temperature control system and a precision servo-driven feeding mechanism, a depositing machine casts the gummy syrup into molds. Following cooling and demolding, the gummies are placed onto PVC drying trays and loaded onto trolleys for ambient-temperature drying. Finally, the gummies enter a surface treatment drum to undergo coating with sugar or wax.
Features:
1. GMP-designed from the outset — all stainless steel wetted parts.
2. Turnkey GMP gummy line —dissolve/blend/deposit/cool/demould/dry/coat.
3. Compact footprint.
4. Unique cooling technology — fast setting, short demould time.
5. New servo transmission mechanism — precise, smooth, low noise.
6. New servo feed mechanism — stable syrup quality, accurate dosing volume.
7. Precision spray system with controllable spray volume.
8. Unique finished-product receiving mechanism — gummies do not fall to the ground.
9. PLC control + PID temperature control.
Technical Data:

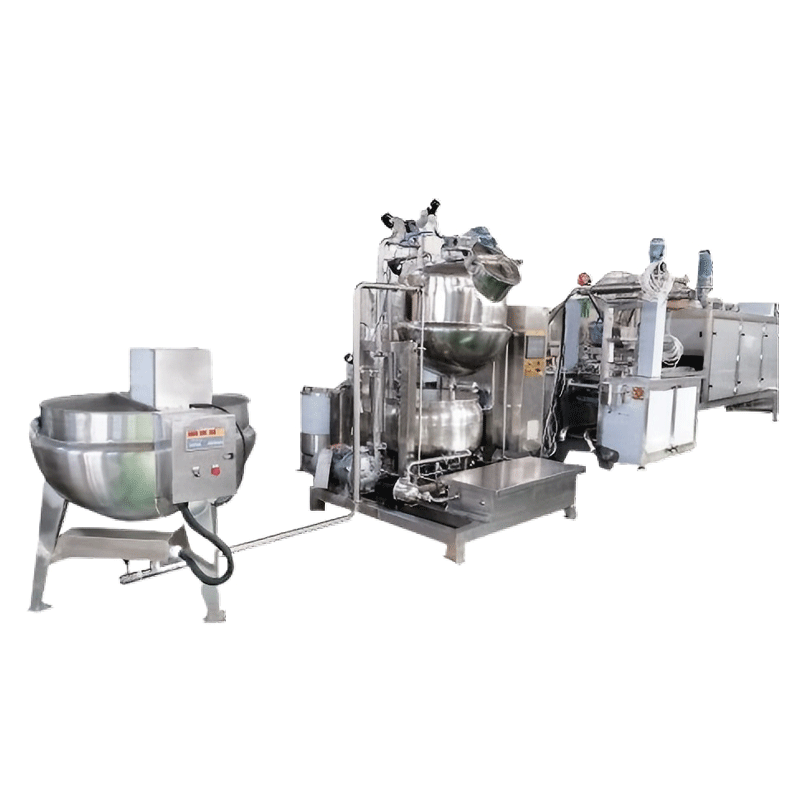

| Model | 80RTJX-B | 150RTJX-B | 300RTJX-B | 450RTJX-B | 600RTJX-B |
| Production Capacity (kg/hr) |
50-100 | 150 | 300 | 450 | 600 |
| Stroke Speed (n/min) | 45-50 | 45-50 | 45-55 | 45-50 | 45-50 |
| Candy Weight (g) | 2-12 | 2-12 | 2-12 | 2-12 | 2-12 |
| Compressor Air Consumption (m³/min) |
0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Compressor Air Pressure (Mpa) |
0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Power Supply | Custom-made according to the customer’s request | ||||
| Conditions for Cooling Parts |
Room temperature：＜25℃; Humidity:＜50％ |
Room temperature：＜25℃; Humidity:＜50％ |
Room temperature：＜25℃; Humidity:＜50％ |
Room temperature：＜25℃; Humidity:＜50％ |
Room temperature：＜25℃; Humidity:＜50％ |
Applications:
1. Production of gelatin/gummy candies and pectin-based confectionery.
2. Health-food / nutraceutical gummy supplement production.
3. Pharmaceutical gummy dosage form manufacturing.
