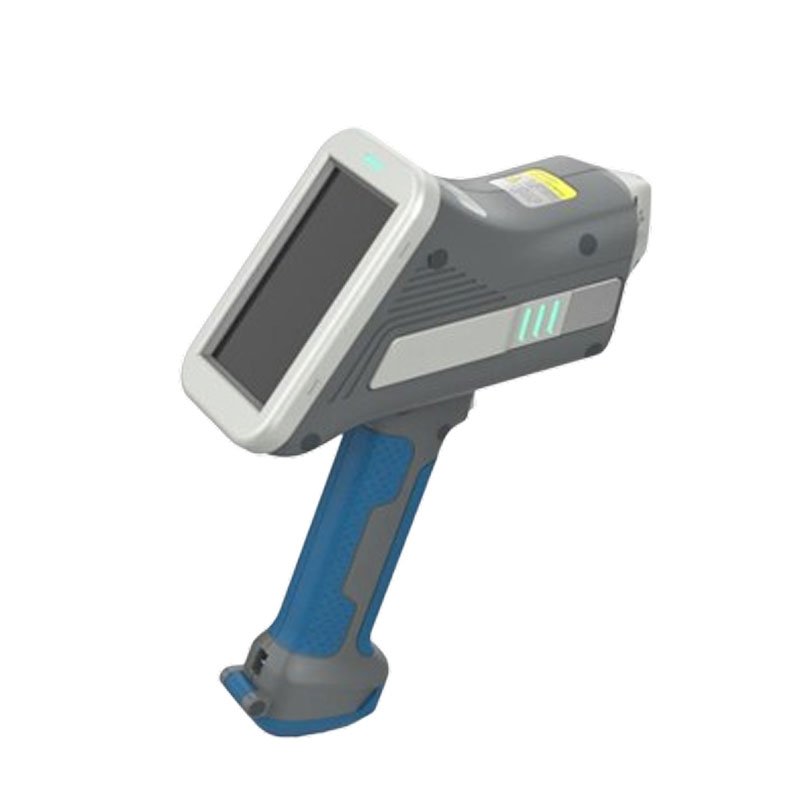

Handheld Alloy Analyzer

SKU HJY-A Category Metal Detector

The HJY-A is a handheld XRF alloy analyzer built for material reliability identification (PMI) in high-temperature, high-pressure sectors such as boiler, container, and pipeline manufacturing. It serves quality control, material sorting, alloy verification, safety inspection, and accident investigation. The device displays alloy grades and elemental percentages (including ppm) intuitively, performs non-destructive testing without damaging internal structures, and supports remote control via mobile software for multi-terminal synchronization. It conducts quantitative metal analysis for on-site identification and complies with ASTM, GB, UNS, and DL standards. Data can be transmitted via WiFi and Bluetooth. Weighing ≤1.75 kg with battery, it features a high-performance Si-Pin detector, a 45KV/200uA micro X-ray tube, an element range from Mg to U, and analysis of 20 alloy elements.

Features:

1. Non-Destructive Material Testing
The analyzer performs non-destructive testing that leaves the internal structure of the inspected object completely intact, making it suitable for on-site material reliability identification in boilers, containers, and pipelines.

2. Smartphone Remote Control and Multi-Terminal Sync
The device can be remotely controlled through mobile phone software, enabling multi-terminal synchronization and allowing operators to manage analysis tasks conveniently from a distance.

3. Quantitative Metal Component Analysis
It delivers quantitative analysis of metal components, completing material identification and sorting on site, with intuitive display of alloy grade, element percentage content, and ppm values.

4. Compliance with International Industry Standards
The instrument adapts to domestic and international industry standards such as ASTM, GB, UNS, and DL, ensuring broad applicability across different regulatory frameworks and industrial requirements.

5. Versatile Data Transmission Options
Data transmission can be carried out through multiple methods including WIFI and wireless Bluetooth, while test reports can also be sent via email or software synchronization for flexible data management.

6. Multi-Level User Management for Traceability
A multi-level user management function allows the creation of multiple accounts corresponding to personal numbers, facilitating convenient management and data traceability for quality control and regulatory compliance.

Technical Data:

Model	HJY-A
Detector	High-performance Sipin detection components
Excitation Source	45KV/200uA-silver target/tungsten target end window integrated micro X-ray light tube and high voltage source
Element Detection Range	The atomic number is between 20 and 92 elements between calcium (Mg) and uranium (U)Analysis of the main elements in the alloy: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Ta, W, Pb, Bi, a total of 20 (can be added continuously)
Detection Object	solid
Analytical Method	Direct reading analysis method + fundamental parameter method (FP)
Weight (kg)	≤1.75（with battery）
Microcomputer Display System	1. Semi-transparent and semi-reflective industrial-grade custom touch screen ≥ 5 inches2. Resolution 1080*720
Power Supply	Custom-made according to the customer’s request
Charging Mode	Universal Adapter Charging and Power Supply
Collimator, Filter	*1. Special anti-radiation material collimator, inner diameter 3MM2. No filter, saving switching time, the software deducts the background interference
Front-end Test Window	≤9mm5mm “waist” type window
Camera	Built-in 5 million pixel high-definition camera
Test Report Sending Method	E-mail sending, bluetooth synchronous transmission, software synchronous transmission
Data Transfer Method	Wifi, bluetooth
Maintenance Method	Remote software upgrade and diagnosis, on-site maintenance, diagnosis
User Management	Multi-level user management function (multiple accounts can be created to achieve the correspondence of personal numbers, which is convenient for management and data traceability)
Protection Cap	The instrument is equipped with a protective cover, which has the functions of instrument calibration, radiation protection and damage prevention (non-standard configuration)

Applications:

1. Scrap metal recycling and sorting – Rapidly identifying alloy grades and detecting contaminants in incoming scrap to ensure accurate pricing and quality compliance.

2. Manufacturing quality control and raw material verification – Performing non-destructive alloy grade identification and composition analysis on raw materials and finished components for QA/QC.

3. Positive material identification in power, oil, and gas – Verifying metal alloy composition in boilers, pipelines, and pressure vessels to prevent equipment failure and ensure safety compliance.

4. Precious metal and alloy authentication – Analyzing gold, silver, and specialty alloys to verify authenticity, grade, and elemental composition for trading or production.
