Name: Metal Detection Machine - Innoval Pharma
SKU: JJ-A

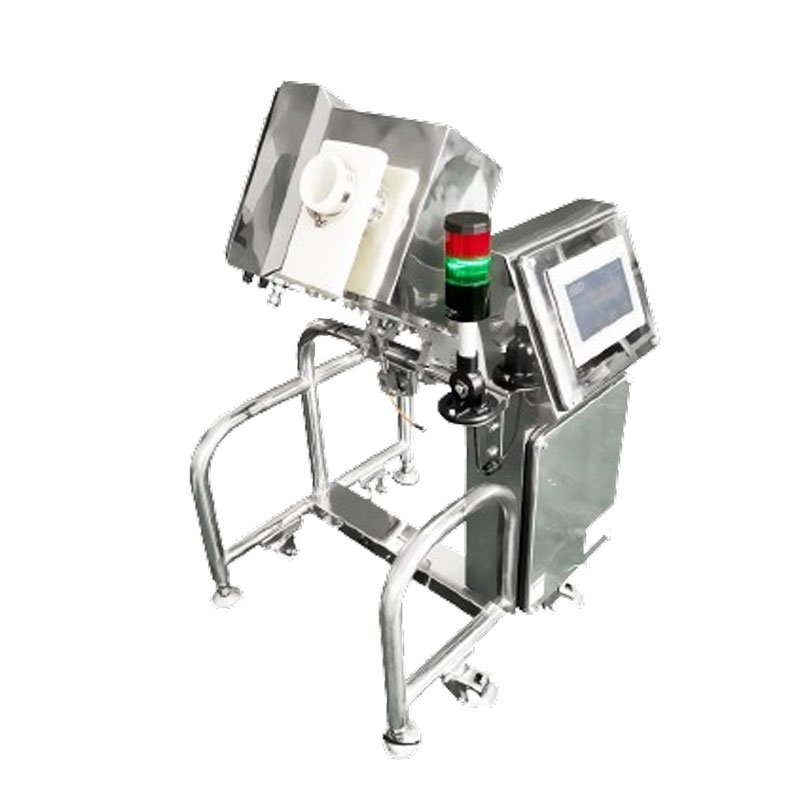

Metal Detection Machine

SKU JJ-A Category Metal Detector

The JJ-A is a metal detection system built to screen out metallic contaminants that may enter food and pharmaceutical products during manufacturing. It is engineered for inline placement downstream of tablet presses, capsule fillers, and screening equipment, examining tablets and capsules for embedded metal particles. The machine delivers sensitive and consistent detection of ferrous metals (Fe), non-ferrous metals like copper and aluminum, and stainless steel. A high-frequency mode substantially elevates detection sensitivity, while a precise rejecter minimizes product waste. The unit complies with GMP standards and features a touchscreen interface for straightforward configuration. It is adjustable in height and angle and mounted on casters for easy relocation. Available in two models with detection widths of 50 mm and 75 mm, it stores up to 99 product profiles and automatically rejects contaminated items.

Features:

1. High-Sensitivity Detection via High-Frequency Mode
The system operates in a high-frequency running mode that dramatically boosts detection sensitivity, reliably identifying ferrous metals, non-ferrous metals such as copper and aluminum, and stainless steel contaminants in tablets and capsules.

2. Precise and Efficient Rejection System
An accurate and efficient rejecter promptly removes contaminated products from the production line, minimizing material loss while ensuring that only compliant tablets and capsules proceed to downstream packaging operations.

3. Full GMP Compliance for Pharmaceutical Use
The equipment is designed and manufactured in full accordance with GMP standards, making it suitable for installation after tablet presses, capsule filling machines, and screening machines in regulated pharmaceutical production environments.

4. Touch-Screen Interface with Extensive Product Storage
A user-friendly touch-screen display enables straightforward setup and operation, while the system supports storage of up to 99 distinct product parameters for rapid changeover between different production runs.

5. Adjustable Positioning and Mobility Features
The device offers adjustable height and angle settings to accommodate varying production line configurations, and is equipped with casters for convenient relocation and flexible deployment within the facility

Technical Data:

Model	50JJ-A	75JJ-A
Detection Width (mm)	50	75
Sensitivity	Fe≥Φ0.3mm
	SUS304≥Φ0.5mm
Display Mode	FDM Touch Screen
Operation Mode	Touch Screen
Product Storage Quantity	99
Rejecter	Automatically Rejected
Power Supply	Custom-made according to the customer’s request
Pressure Requirements	≥0.5MPa
Main Material	SUS304
Tablet Contact Part	SUS316
Use Environment	10~40℃, relative humidity 30~85%, but no condensation

Applications:

1. Food and beverage packaging inspection – Detecting ferrous, non-ferrous, and stainless steel contaminants in packaged or bulk food products to ensure HACCP and BRC compliance.

2. Pharmaceutical tablet and capsule quality control – Inspecting tablets and capsules after pressing, filling, or screening to remove metal particles and meet GMP standards.

3. Chemical and industrial raw material screening – Screening powders, granules, and bulk chemical materials for metal fragments during incoming inspection and outgoing goods verification.

4. Cosmetics and personal care product line-end verification – Checking packaged cosmetics and daily chemical products for metal contamination to protect brand reputation and consumer safety
