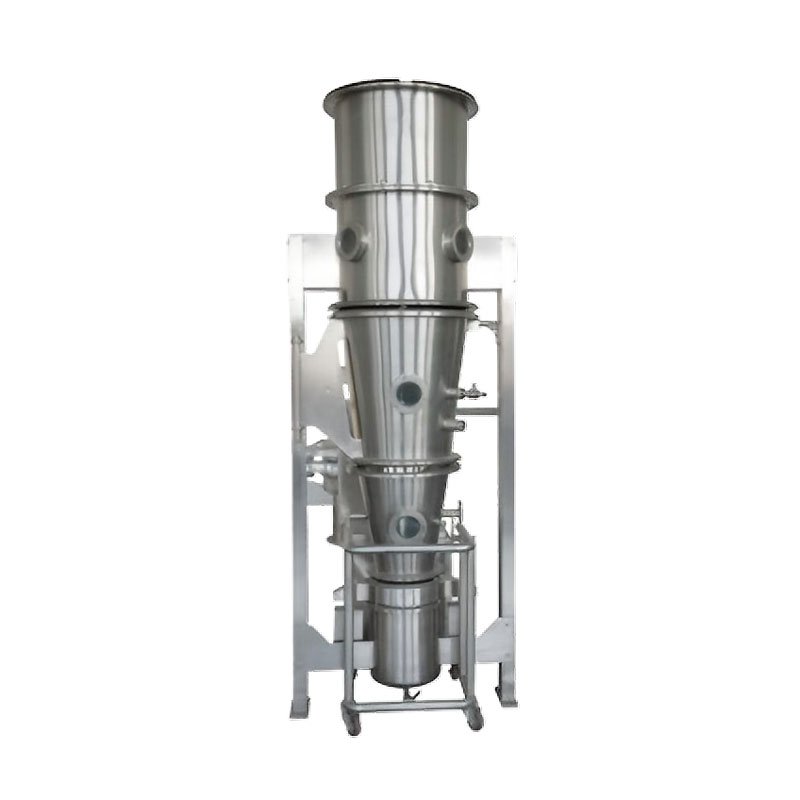

Industrial Fluid Bed Drying Machine
Industrial Fluid Bed Drying Machine
The fluid-bed dryer designed for drying powders and granules in pharmaceutical applications. It fluidizes material in a heated-air bed so moisture evaporates and is removed by a fan.
Features:
1. Suitable for drying powders and granules.
2. Fluid-bed design.
3. High-efficiency heating system.
4. High-efficiency fluidized bed drying.
5. Suitable for pharmaceutical, chemical, and food industries.
Technical Data:
| Model | 5GF-A | 5GF2-A | 10GF-A | 30GF-A | 60GF-A | 100GF-A | 100GF2-A | 120GF-A | 150GF-A | 200GF-A | 200GF1-A | 200GF2-A | 300GF-A | 500GF-A | 800GF-A |
| Volume (L) | 22 | 22 | 30 | 100 | 220 | 380 | 380 | 420 | 500 | 700 | 800 | 670 | 1000 | 1500 | 2000 |
| Production Capacity (kg/batch) |
5 | 5 | 10 | 30 | 60 | 100 | 100 | 120 | 150 | 200 | 200 | 200 | 300 | 500 | 800 |
| Power of Fan (kW) |
Custom-made according to the customer’s request | ||||||||||||||
| Electric Heater (kW) |
6 | 9 | 15 | / | 36 | 45 | 60 | 54 | 63 | 72 | 81 | / | / | 160 | / |
| Consumption of Compressed Air (m3/min) |
0.6 | 0.6 | 0.6 | 0.25 | 0.9 | 0.6 | 0.9 | 0.9 | 0.9 | 0.6 | 0.9 | 0.6 | 0.6 | 0.75 | 3 |
| Overall Size (mm) |
2300*1200*2200 | 2300*1200*2200 | / | 2850*1050*2600 | 1700*1460*3400 | 2862*2552*2540 | / | 2100*1820*3600 | 4000*1760*3400 | 3340*1600*3200 | / | 3340*1600*3200 | 3500*1950*3300 | 3600*2150*3650 | 9750*4500*8744 |
Applications:
1. Drying of damp granule materials.
