Vacuum Drying Machine
Vacuum Drying Machine

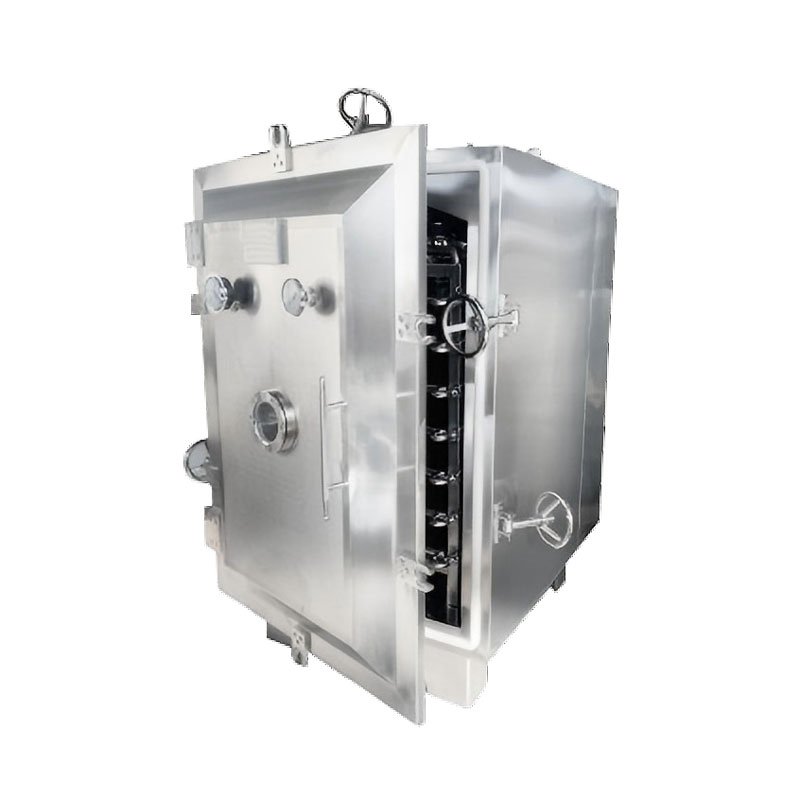

The Square Vacuum Drying Machine. A static-tray vacuum dryer suitable for drying heat-sensitive raw materials that can decompose, polymerize, or deteriorate at high temperatures.
Features:
1. Gentle, low-temperature drying for heat-sensitive APIs and intermediates.
2. Solvent recovery via optional condenser.
3. GMP-compliant static drying (no cross-contamination).
4. SS316L contact trays; SUS304 chamber and door.
Technical Data:
| Model | 5FZG-A | 8FZG-A | 12FZG-A | 12FZG1-A | 12FZG2-A | 48FZG-A |
| Number of Layer | 5 | 8 | 12 | 12 | 12 | / |
| Negative Pressure (MPa) |
-0.099 | -0.099 | -0.099 | -0.099 | -0.099 | -0.099 |
| Tray Amount | 20 | 32 | 48 | 144 | 72 | 48 |
| Tray Size (mm) | 460*640*45 | 460*640*45 | 460*640*45 | 460*640*45 | 460*640*45 | 460*640*45 |
| Weight (kg) | 2000 | 1500 | 2000 | 5500 | 5500 | 1600 |
| Overall Dimensions (mm) |
1720*1513*1924 | 2386*1657*1920 | 1660*280*2150 | 2560*2000*3300 | 1680*2495*1842 | 1660*1280*2150 |
Applications:
1. Drying heat-sensitive pharmaceutical raw materials and APIs.
2. Drying pharmaceutical intermediates and fine chemicals.
3. Drying chemical and foodstuff materials.
4. Drying electronic-grade materials.
5. Solvent recovery drying.
Innoval Pharma
Product Categories
Contact Us
Related Product
The Hot Air Circulation Drying Oven: Electric/steam/hot-water/far-infrared heating elements warm the...
The vibrating fluidized bed dryer/cooler designed for cooling and drying granular materials. Vibrating...
The fluid-bed dryer designed for drying powders and granules in pharmaceutical applications. It fluidizes...

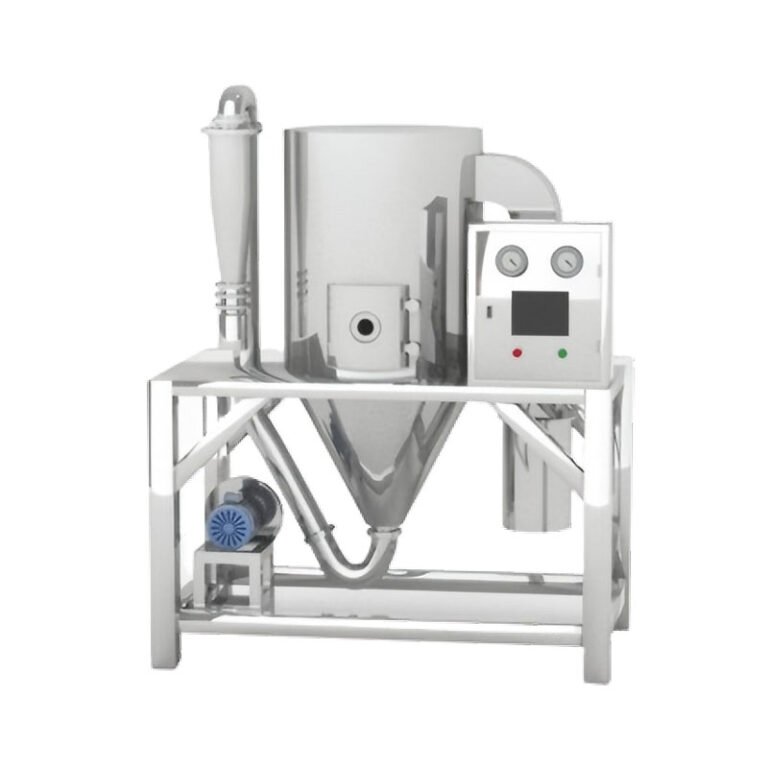

The spray dryer is primarily for universities, research institutes, and food/pharmaceutical/chemical...
