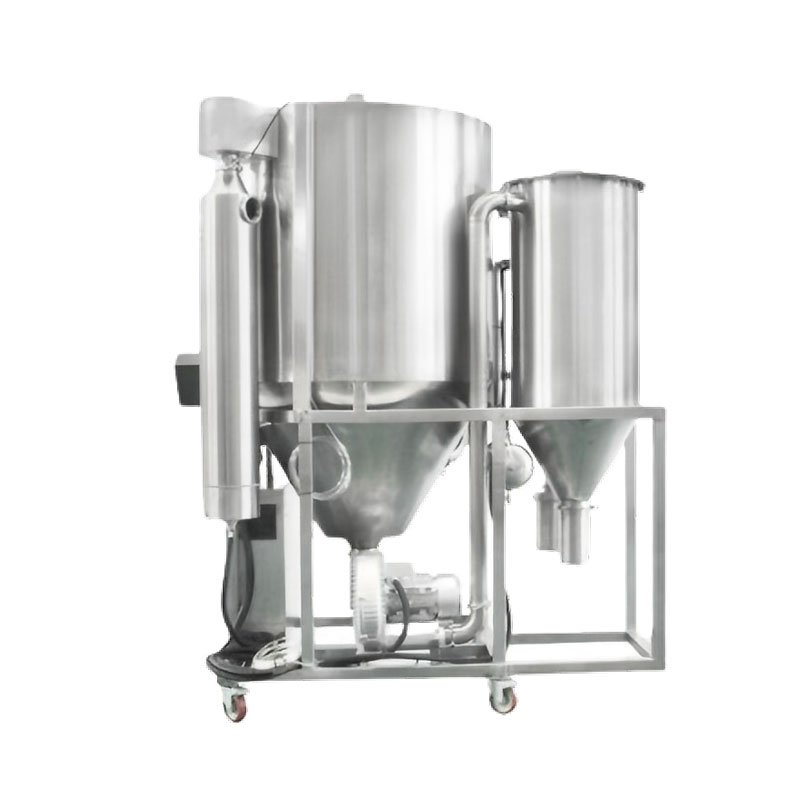

Centrifugal Spray Dryer
Centrifugal Spray Dryer
The spray dryer is primarily for universities, research institutes, and food/pharmaceutical/chemical enterprise labs producing micro-particle powders. Broadly applicable to solutions, emulsions, and suspensions; ideal for heat-sensitive materials (biological products, biological pesticides, enzyme preparations, etc.) since atomized droplets are exposed to heat only instantaneously, preserving active ingredients.
Features:
1. Designed for heat-sensitive actives (biologicals, enzymes, bio-pesticides).
2. Visible drying process (transparent borosilicate glass).
3. Auto nozzle clearing solves viscous-material blockage.
4. Quiet operation.
5. Compact lab footprint.
6. Standalone — no external compressor or fan needed.
7. Bilingual color touchscreen with animation.
Technical Data:
| Model | 2PG-Z | 5PG-Z |
| Maximum Processing Capacity (L) | 1.5-2 | 5 |
| Minimum Feed Capacity (ml) | 80 | 100 |
| Drying Chamber Diameter (mm) | 220 | 800 |
| Maximum Inlet Air Temperature | ~250℃ (Adjustable) | |
| Heater Capacity (kW) | 3 | 15 |
| Forced Draft Fan (kW, m³/min) | 0.25, 9.5 | 1.5, 250 |
| Compressor (kW, L/min) | 0.58, 108 | 1.5, 120 |
| Power (kW) | Custom-made according to the customer’s request | |
| Dimensions (mm) |
800*600*1300 | 1500*1000*2000 |
Applications:
1. Spray drying of solutions, emulsions, suspensions.
2. Heat-sensitive material drying (biologicals, enzymes, bio-pesticides).
3. Biological product drying.
4. Biological pesticide drying.
5. Enzyme preparation drying.
6. Lab-scale micro-particle powder production.
7. R&D / pilot studies.
