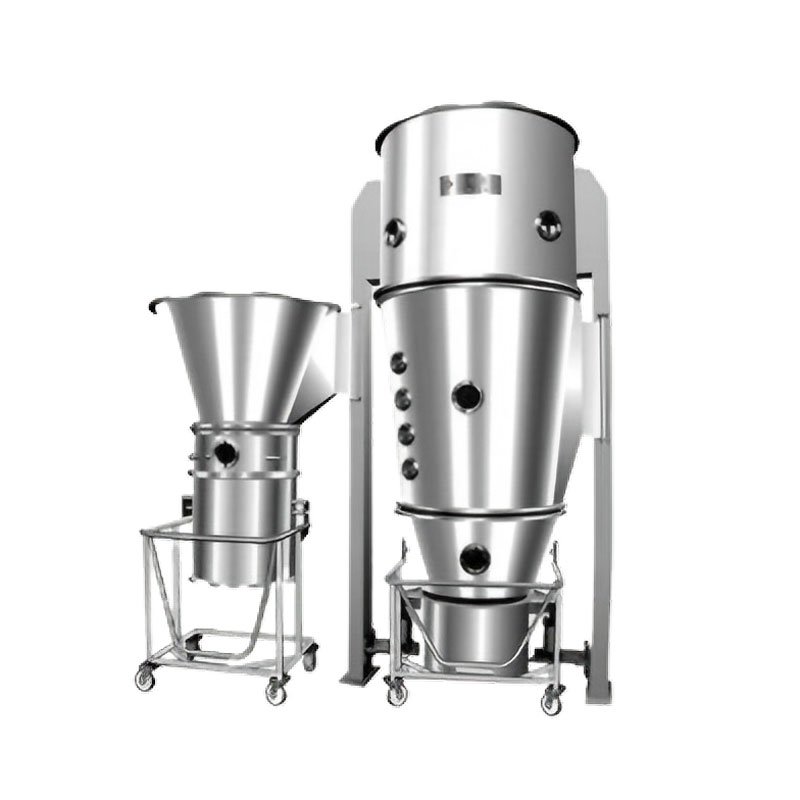

Fluid Bed Granulator Coater
Fluid Bed Granulator Coater
The fluid-bed granulator/coater. Suitable for top-fluidized granulating and bottom-coating of powders/granules in a container by spraying binder/coating material.
Features:
1. Pharma-grade three-stage HEPA inlet system.
2. All product-contact SS316L.
3. Multi-mode: top granulation + centrifugal pelleting + bottom coating.
4. 21 CFR Part 11 compliant option.
5. CIP cleaning system option.
6. IQ/OQ documentation available.
Technical Data:
| Model | 1GFB-A | 2GFB-A | 15GFB-A | 60GFB-A | 100GFB-A | 200GFB-A | 300GFB-A |
| Capacity (kg/batch) |
0.2-1 | 0.5-2 | 15 | 60 | 100 | 200 | 200-300 |
| Power of Fan (kW) |
Custom-made according to the customer’s request | ||||||
| Consumption of Compressed Air (m³/min) |
0.45 | 0.45 | 0.6 | 1.5 | 0.9 | 1.5 | 0.9 |
| Pressure of Compressed Air (MPa) |
0.35 | 0.35 | 0.45 | 0.6 | 0.6 | / | 0.6 |
| Machine Dimensions (mm) |
/ | 1200*1200*2000 | / | 3400*2000*3600 | 3360*1820*4500 | / | 3400*2060*5600 |
Applications:
1. Pharmaceutical granulation.
2. Pharmaceutical coating (film/sugar coat).
3. Centrifugal pelletizing.
4. Powder agglomeration.
5. Granule drying.
