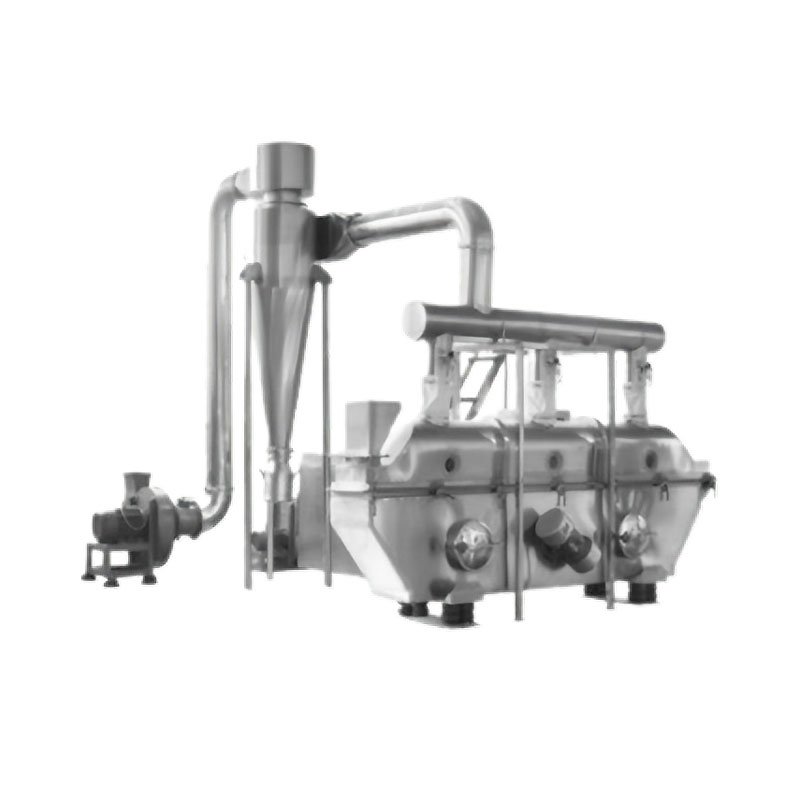

Vibrating Fluid Bed Dryer Machine
Vibrating Fluid Bed Dryer Machine
Cold air is filtered by a primary filter, heated by the steam heat exchanger, and fed into the fluid bed air chamber via the inlet. Wet material enters the bed continuously; under the dual action of vibration and uniformly distributed hot air through the air-distribution plate, the material is suspended and contacts the hot airstream for heat-and-mass-transfer drying. Exhaust air is cleaned by the cyclone separator and pulse bag filter before being discharged by the induced draft fan. Dried product exits via the discharge outlet.
Features:
1. 904 stainless steel material contact — excellent corrosion resistance.
2. Dual fluidisation by vibration + hot air for uniform drying.
3. Multi-point vibration damping on the entire frame for stable operation.
4. Automatic temperature control + over-temperature alarm for safe, reliable operation.
5. Complete process chain: filtration → heating → drying → dust removal → induced draft.
Technical Data:
| Model | 800ZGF-G | 1000ZGF-G | 2400ZGF-G | 3900ZGF-G |
| Production Capacity (kg/hr) |
800 | 1000 | 2400 | 3900 |
| Rotating Speed (rpm) |
2900 | 2900 | 2900 | 2900 |
| Power (kW) | Custom-made according to the customer’s request | |||
| Drying Bed Area (m2) |
2.275 | / | 5.625 | 8.1 |
| Inlet Air Temperature (℃) |
150 | 130 | 50 | 50 |
Applications:
1. Continuous drying of powder/granule materials.
2. Fluid bed drying of wet granules.
3. Drying of heat-sensitive materials.
