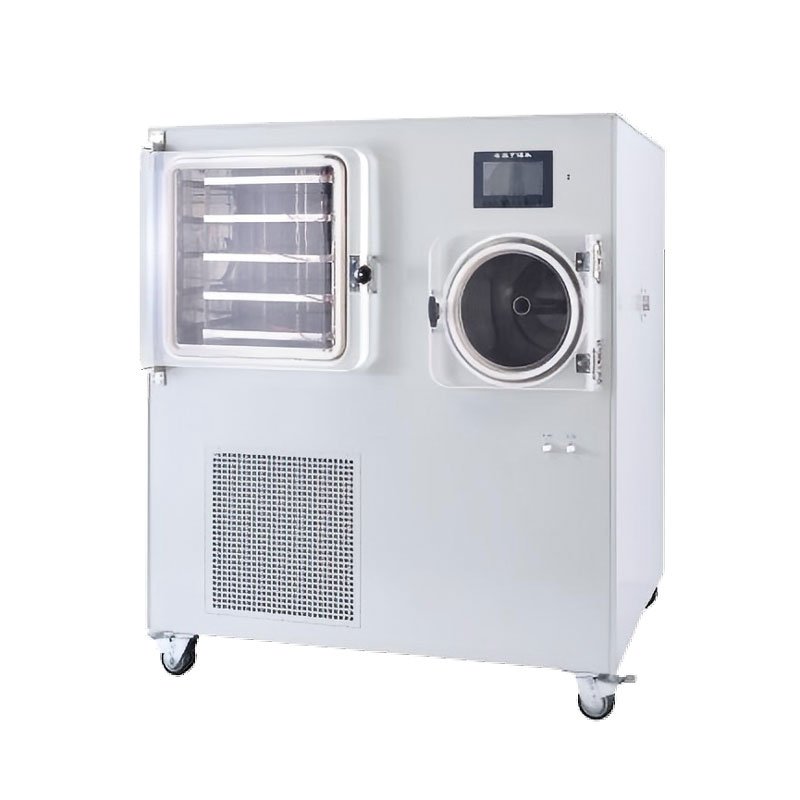

Lab Scale Vacuum Freeze Dryer
Lab Scale Vacuum Freeze Dryer
The vacuum freeze dryer used in fields such as medicine, pharmaceuticals, biological research, chemicals, and food. It allows for the long-term preservation of materials by freeze-drying, which can be rehydrated to their original state while maintaining biochemical properties. The machine features a transparent drying chamber door, imported compressors, and a vacuum pump for efficient and quiet operation.
Features:
1. The transparent door of the drying chamber is constructed from aerospace-grade acrylic, featuring a seamless, high-strength design that ensures zero leakage.
2. Pre-freezing and drying are performed *in situ*, thereby minimizing the complexity and manual handling typically associated with the drying process.
3. A simulated operation interface provides a visual display that clearly reflects the real-time operating status of each system component.
4. Utilizing silicone oil as the circulating medium ensures exceptional temperature control precision.
5. The system supports the storage of up to 1,000 distinct programs, allowing for the fully programmable configuration of the entire freeze-drying process.
6. Equipped with an industrial-grade PLC controller, the unit features a display interface that visualizes the drying curves.
7. The square-shaped trays are highly resistant to deformation, easy to handle, and facilitate effortless cleaning.
8. User access levels and passwords can be configured to enable a hierarchical, permission-based approach to operational management.
9. The system allows for the introduction of nitrogen or other inert gases to facilitate the preservation of samples following the drying process.
Technical Data:
| Model | 0.7XDG-P |
| Drying Area (㎡) | 0.7 |
| Number of Shelf Layers | 4+1 |
| Layer Size (L*W*H mm) | 360*480*18 |
| Cold Trap Minimum Temperature (℃) | ≤-75 |
| Water Catching Capacity (kg) | ≥15 |
| Power | Custom-made according to the customer’s request |
| Structure | integrate |
| Dimension (L*W*H mm) | 1280*780*1380 |
| Weight (kg) | 500 |
Applications:
1. Medicine.
2. Pharmaceuticals.
3. Biological research.
4. Chemicals.
5. Food.
