Manual Capsule Filling Filler
Manual Capsule Filling Filler

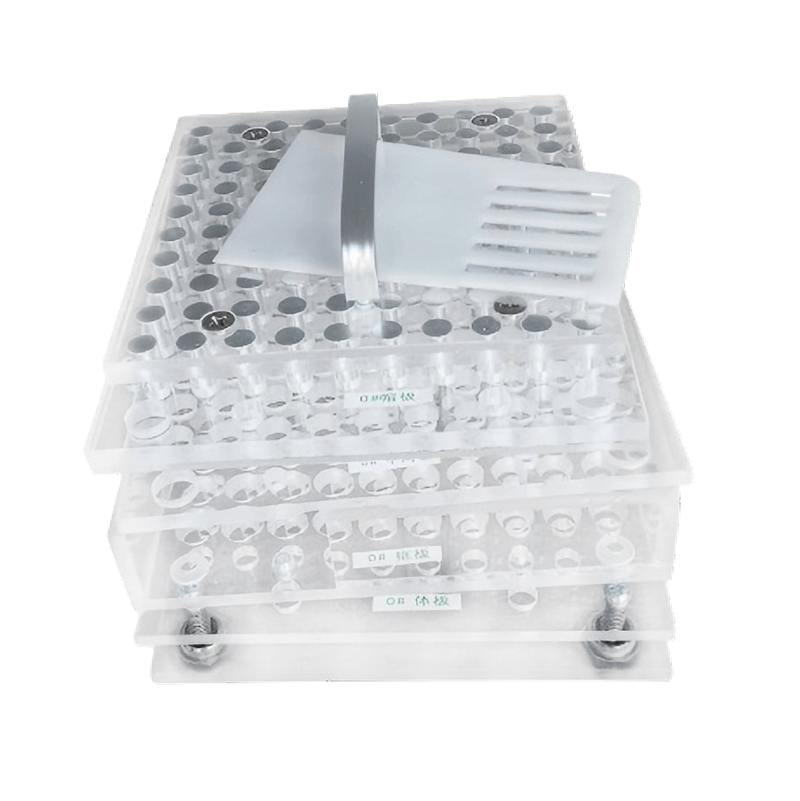

Empty capsule caps and bodies are loaded into the cap and body plates respectively; the middle plate aligns body cavities, powder is poured into the frame and leveled with the scraper plate, then compressed by the powder-press plate. Cap plate is then aligned and pressed onto the bodies to lock the filled capsules. 100 capsules are filled per cycle.
Features:
1. Low-cost manual alternative for small-batch / R&D capsule filling.
2. Complete the six-plate kit ready to use.
3. Compatible with standard hard gelatin capsules.
Technical Data:
| Model | SED-100JCB-S | SED-187JCB-S | SED-209JCB-S | SED-400JCB-S | SED-600JCB-S | SED-800JCB-S |
| Filling Holes | 100 | 187 | 209 | 400 | 600 | 800 |
| Capsule Size Options | 00#, 0#, 1#, 2#, 3#, 4#, 5# | |||||
| Package Size (L*W*H mm) |
230*180*110 | 320*120*220 | 320*120*220 | 420*95*290 | 500*410*180 | 500*410*180 |
| Package Weight (kg) | 1.8 | 3 | 3 | 5.5 | 9 | 11 |
| Basic Set | cap plate 1pcs
body plate 1pcs middle plate 1pcs frame plate 1pcs powder press plate 1pcs scraper plate 1pcs |
|||||
Applications:
1. Manual hard-capsule filling for small batch/lab work.
2. Hospital pharmacy compounding.
3. R&D capsule formulation.
