Multi Lane Stick Packaging Machine for Liquid
Multi Lane Stick Packaging Machine for Liquid

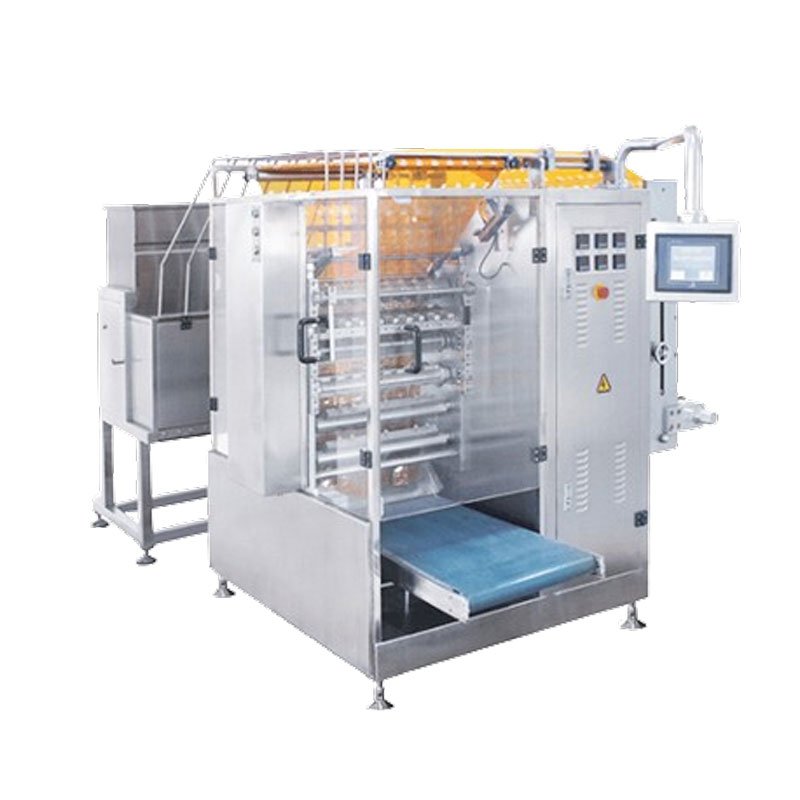

The YDB is a multi-lane stick packaging system built to dispense liquid and paste products in precise quantities, serving the food, pharmaceutical, and personal care sectors. It automates the entire packaging sequence—pouch forming, dosing, filling, sealing, cutting, counting, and date coding—in one continuous process. The machine runs several lanes simultaneously, boosting throughput. It features a PLC controller with a large touchscreen, stainless steel contact parts and housing, and a high-precision photoelectric sensor for accurate positioning. An automatic film-out shutdown minimizes material waste. Available in configurations from 2 to 10 lanes, it achieves outputs up to 30,000 bags per hour. The unit is simple to clean, operates stably, and is backed by a professional service team.
Features:
1. The machine produces multiple stick packets simultaneously and completes bag making, measuring, filling, sealing, cutting, counting, and date printing in a single continuous operation.
2. Featuring PLC control and a user-friendly large touchscreen, the machine automatically stops when film runs out, effectively reducing film waste during operation.
3. Product contact components and the machine shell are constructed from stainless steel, while a high-precision photoelectric sensor ensures accurate detection and reliable packaging performance.
4. Applicable to quantitative liquid and paste packaging in food, pharmaceutical, and personal care industries, the machine ensures easy cleaning, stable operation, and sensible construction.
Technical Data:
| Model | 180-2YDB-X | 480-4YDB-X | 480-5YDB-X | 680-4YDB-X | 680-6YDB-X | 680-8YDB-X | 1300-10YDB-X |
| Filling Lines | 2 | 4 | 5 | 4 | 6 | 8 | 10 |
| Bag Size (mm) | L: 40-180 W: 20-70 |
L: 30-180 W: 20-70 |
L: 30-180 W: 20-70 |
L: 30-180 W: 20-80 |
L: 30-260 W: 20-60 |
L: 30-180 W: 20-80 |
L: 30-160 W: 20-60 |
| Max Width of Roll Film (mm) | 180 | 480 | 480 | 680 | 680 | 680 | 1300 |
| Packing Speed (bags/hr) | 2400-6000 | 4800-12000 | 4800-12000 | 6000-8400 | 12600 | 9600-24000 | 18000-30000 |
| Air Consumption (MPa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Power | Custom-made according to the customer’s request | ||||||
| Dimensions (L*W*H mm) | 650*980*1720 | 616*1313*2283 | 616*1313*2283 | 1480*2050*2950 | 1300*1200*2450 | 2072*1924*3627 | 1300*1200*2450 |
| Weight (kg) | 450 | 950 | 950 | 1300 | 750 | 1800 | 750 |
Applications:
1. Food & Condiment Industry: Filling ketchup, mayonnaise, mustard, honey, olive oil, vinegar, and salad dressings into single-serve stick packs.
2. Pharmaceutical & Nutraceutical Sector: Packaging medicinal syrups, liquid supplements, oral liquids, and topical solutions into precise unit-dose sticks.
3. Personal Care & Cosmetics: Dispensing shampoo, conditioner, hair dye, face cream, mask paste, and liquid soap into travel-sized stick sachets.
4. Daily Chemical & Industrial Applications: Filling liquid detergents, bleach, fabric softeners, insecticides, and liquid fertilizers into accurate small-volume stick packs.
