Automatic Premade Pouch Filling Machine

SKU FGD-S Category Bag Packing Machine

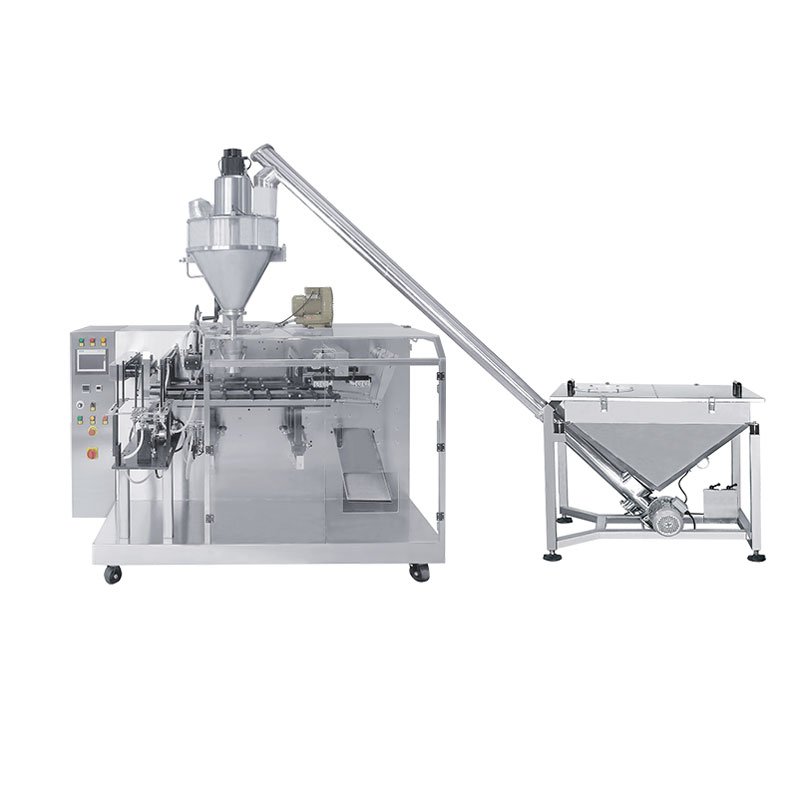

The FGD-S is an automatic premade pouch filling machine that performs weighing, feeding, filling, and pouch sealing through an automated packaging system. It primarily uses spiral structural components for material feeding and real-time weighing, making it suitable for packaging special materials. Key features include servo-driven screw feeding with a metering accuracy of ≤±1%, food-grade 304 stainless steel contact parts compliant with FDA and CE certification, an intelligent PLC control system with display screen, and a quick-release screw assembly for tool-free cleaning and maintenance. The standard model SED-210FGD-S offers a packing capacity of 1,500–2,700 bags per hour, pouch sizes of 120–210 mm (W) × 100–320 mm (L), a sealing temperature of 100–190°C, a maximum packaging volume of 1200 ml, and air consumption of ≤0.3 m³/min. Voltage is customizable, and dimensions are 2150×1200×1200 mm.

Features:

1. Featuring servo-driven screw feeding with a high-precision servo motor controlling screw speed, the metering accuracy reaches ≤±1% for consistent pouch filling.

2. All product-contact parts are constructed from food-grade 304 stainless steel, fully compliant with FDA and CE certification for hygienic and safe premade pouch filling.

3. The intelligent control system combines a display screen with PLC control, providing straightforward operation and dependable performance for premade pouch filling tasks.

4. A quick-release screw assembly and tool-free disassembly structure facilitate easy cleaning and maintenance, enhancing operational efficiency in premade pouch filling.

5. Driven by an automated packing system, the machine completes product weighing, sending, filling, and bag sealing in a seamless premade pouch filling workflow.

Technical Data:

Model	210FGD-S
Packing Capacity (bags/hr)	1,500~2,700
Pouch Size (mm)	W: 120-210 L: 100-320
Sealing Temp. (℃)	100~190
Max. Packaging Volume (ml)	1200
Air Consumption	≤0.3m³/min
Voltage	Customizable by customers’ requirements
Dimensions (mm)	215012001200

Applications:

1. Food & Snack Packaging: Ideal for filling granular, powdered, and solid food items like nuts, coffee, snacks, flour, and seasonings into premade pouches.

2. Pharmaceutical & Nutraceutical Products: Suitable for packaging capsules, tablets, powdered supplements, protein powders, and health products into sealed premade pouches.

3. Chemical & Agricultural Applications: Capable of filling detergents, fertilizers, pesticides, seeds, and other chemical granules or powders into durable premade pouches.

4. Pet Food & Multi-Industry Solutions: Widely used across pet food, cosmetics, and household goods industries for packaging various materials with high precision and efficiency.
