Pure Steam Autoclave Steam Sterilizer

Name: Pure Steam Autoclave Steam Sterilizer - Innoval Pharma
SKU: CM-J

Pure Steam Autoclave Steam Sterilizer

SKU CM-J Category Autoclave

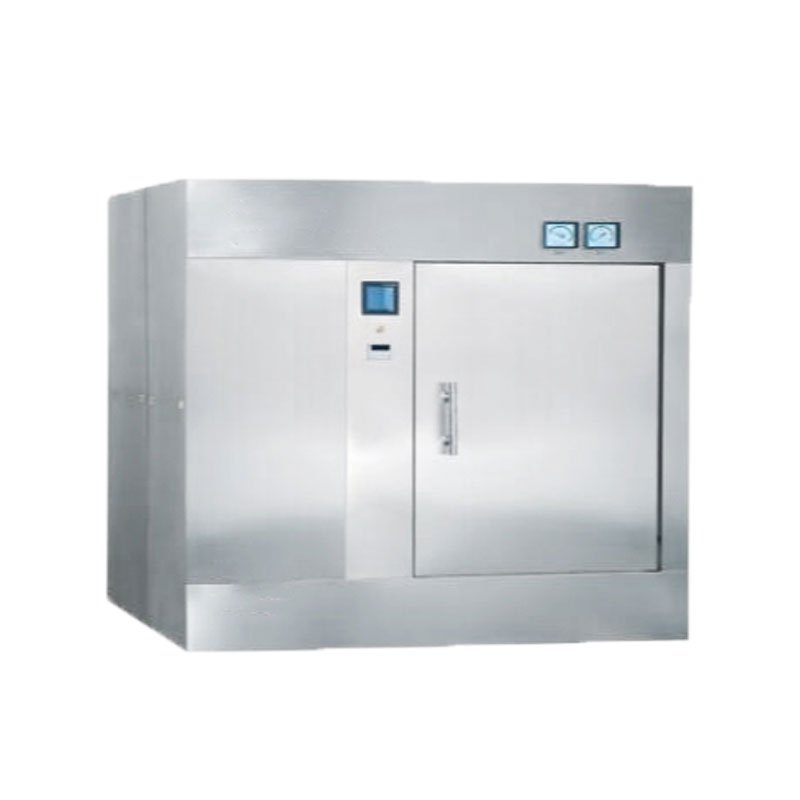

Horizontal pure-steam sterilizer (autoclave), designed for biopharmaceutical sterile-product manufacturing requiring zero-pyrogen sterilization media. Double-leaf motorized doors (operating and sterile sides) with mechanical safety interlock, compressed-air medical silicone-rubber door seal, and pressure safety interlock.

Features:

1. Double-leaf motorized doors with safety interlock and compressed-air seal.

2. Pure-steam grade eliminates pyrogen carryover — meets highest biopharmaceutical GMP requirements.

3. Integrated steam generator — self-contained, no external steam supply needed.

4. Double-door pass-through layout cleanly separates clean and dirty sides.

5. Real-time F0 monitoring with printable sterilization report.

Technical Data:

Model	0.25CM-J	0.36CM-J	0.6CM-J	1CM-J (electrical heating)
Steam Consumption (kg/cycle)	20	30	35	45
Water Consumption (kg/cycle)	150	150	200	250
Design Perssure (MPa)	0.245	0.245	0.245	0.245
Design Temperture (℃)	139	139	139	139
Working Pressure (MPa)	0.22	0.22	0.22	0.22
Working Temperture (℃)	134	134	134	134
Chamber Size (mm)	700600600	1000600600	1050680850	12507501100
Overall Dimensions (mm)	97013201800	127013201800	133014001920	153014802000
Weight (kg)	900	1000	1200	1500

Applications:

1. Sterilization of sterile gowning for B/C cleanrooms.
2. Sterilization of antibiotics and heat-stable APIs.
3. Sterilization of injection rubber stoppers, aluminum caps, aluminum drums.
4. Small-capacity unsealed liquid sterilization.
5. Biopharmaceutical equipment and accessories terminal sterilization.
