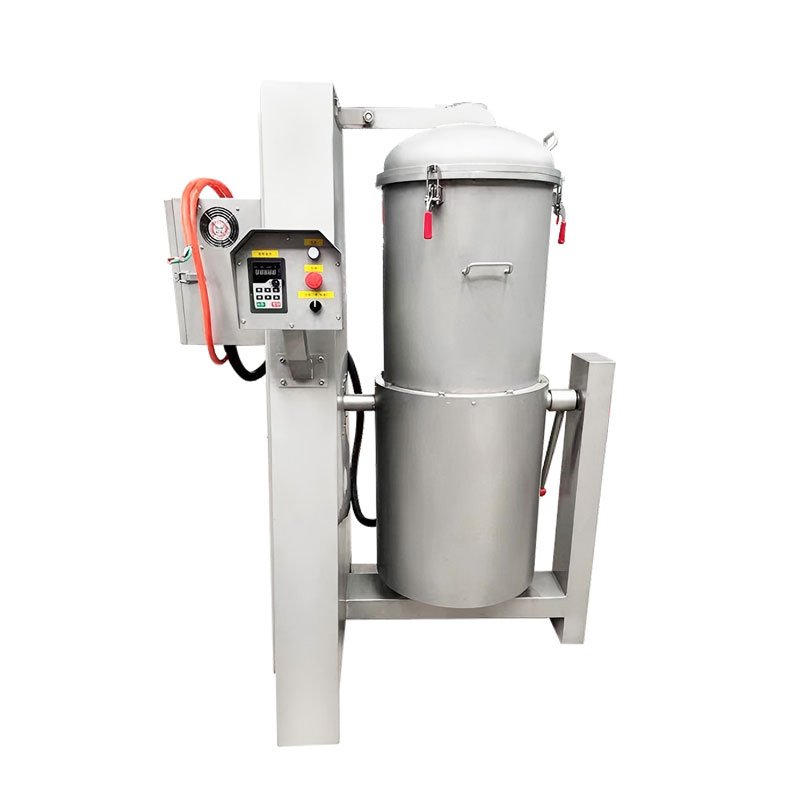

Automatic Cutting Mixer Machine
Automatic Cutting Mixer Machine
A variable-frequency motor drives a four-blade chopper at the base of the stainless steel bowl, rotating up to 3000 rpm to cut and mix the contents. The bowl is removable, tiltable via handles, and locks under the lid for safe operation.
Features:
1. All-stainless-steel hygienic build.
2. VFD speed control across mixing/cutting tasks.
3. Tiltable, removable bowl simplifies cleaning.
4. Premium 4-blade chopper delivers uniform results.
Technical Data:
| Model | 120GH-C |
| Volume (L) | 120 |
| Rated Voltage | 400V/50Hz (three-phase) |
| Motor Power (kW) | Custom-made according to the customer’s request |
| Bucket Size (mm) | Diameter: 500
Depth: 600 |
| Mixing Speed (rpm) | 3000 |
| Dimensions (L*W*H mm) | 1060*1060*1800 |
Applications:
1. High-speed mixing and cutting of food ingredients.
2. Uniform comminution of solid food materials.
3. Pre-mixing for solid preparations.
