V Blender

Name: V Blender - Innoval Pharma
SKU: VH-E

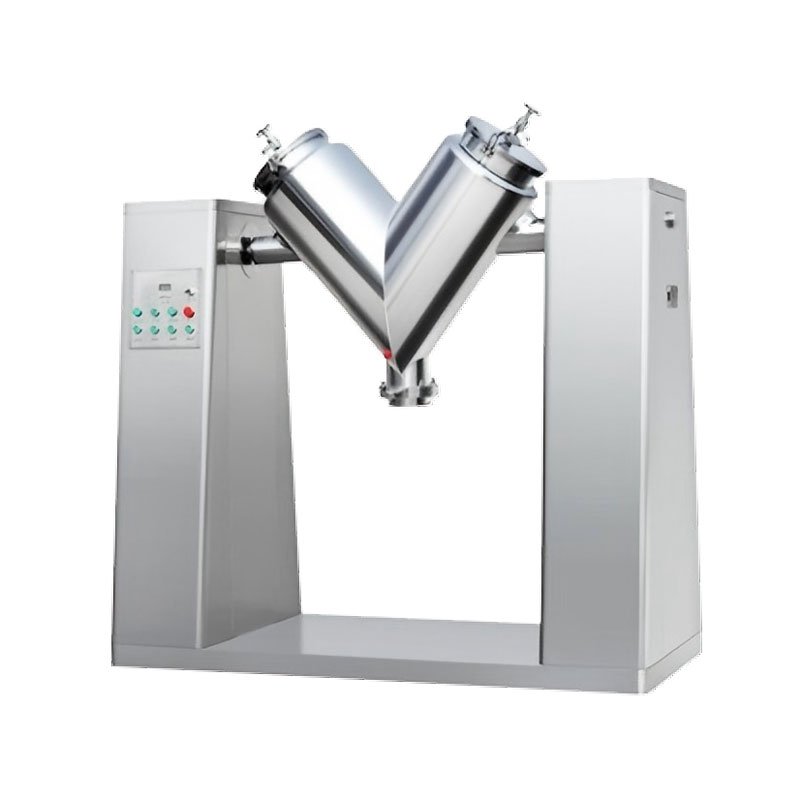

V Blender

SKU VH-E Category Mixing

V-shaped asymmetric mixing: powder/granule materials are loaded into the V-shaped barrel(s) which rotate slowly at 13 rpm. As the V tilts, the materials repeatedly fold and split between the two arms, achieving homogeneous blending without dead corners. Feeding is equipped with a vacuum suction device. Discharge is via a stainless-steel butterfly valve positioned at the bottom of the barrel when the outlet faces vertically downward.

Features:

1. Single/Two-arm V-design for high uniformity (CV ≤5%) and short mixing time.

2. Smooth stainless-steel interior for easy GMP cleaning.

3. No dead corners — prevents cross-contamination.

4. Optional forced mixing mechanism for fine powder, cohesive materials, or materials with moisture.

Technical Data:

Model	2VH-E	5VH-E	8VH-E	10VH-E	14VH-E	20VH-E	30VH-E	50VH-E	100VH-E	200VH-E	300VH-E	500VH-E	1000VH-E
Barrel volume (L)	2	5	8	10	14	20	30	50	100	200	300	500	1000
Working volume (L)	0.8	2	3.2	4	5.6	8	12	20	40	80	120	200	400
Max. Loading (kg)	1	2.5	4	5	7	10	15	25	50	100	150	250	500
Cylinder Diameter (mm)	φ100	φ133	φ133	φ160	φ160	φ220	φ255	φ300	φ355	φ450	φ500	φ550	φ750
Power	Custom-made according to the customer’s request
Rotating Speed (r/min)	28	24	24	24	20	20	20	20	15	15	15	13	10
*Dimension (LWH mm)*	475205380	720350610	810350625	850350785	925350825	950350830	990350860	13504601160	15806501460	17506901600	20157201735	24509802050	305012002580

Applications:

1. Production-scale dry mixing of pharmaceutical powders and granules.
2. Pre-blending for tablet pressing or capsule filling.
3. Dry mixing of nutraceutical and supplement formulations.
4. Chemical, food, feed, ceramics, and metallurgy powder blending.
