Automatic Lifting Blender

Name: Automatic Lifting Blender - Innoval Pharma
SKU: TH-D

Automatic Lifting Blender

SKU TH-D Category Mixing

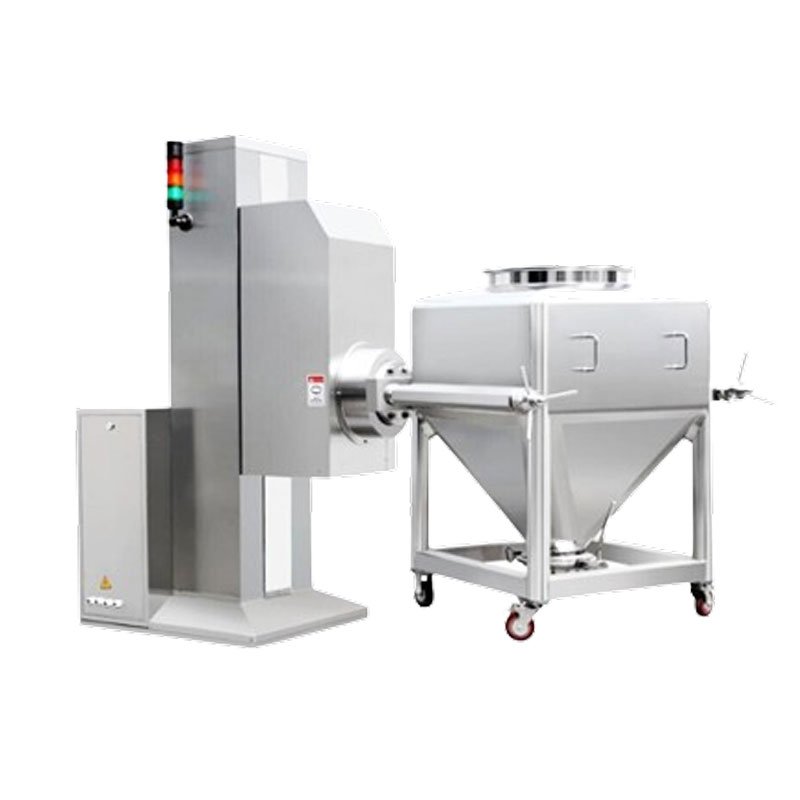

The Column-Type Bin Mixer. Siemens VFD + PLC + touchscreen with Schneider control gear; in-house hydraulic lift, column, lift trolley, drive box, and bin cradle. Designed for receiving and rotating a movable IBC for in-container blending.

Features:

1. Column-style mixer for movable hoppers.

2. Mixing uniformity ≥99%.

3. Siemens PLC + touchscreen + VFD.

4. In-bin mixing avoids cross-contamination and powder dust.

Technical Data:

Model	1TH-D	2TH-D	3TH-D	3.2TH-D	5TH-D	6TH-D	8TH-D	10TH-D	12TH-D	15TH-D	20TH-D
Hopper Volume (L)	100	200	300	320	500	600	800	1000	1200	1500	2000
Maximum Net Load (kg)	50	100	150	160	200-250	300	400	500	600	750	850-950
Loading Factor	50%-80%
Operating Speed (r/min)	3-15	3-15	3-15	3-15	3-15	3-15	3-15	3-15	3-8	3-8	3-8
Working Hours (min)	1-59	1-59	1-59	1-59	1-59	1-59	1-59	2-59	1-59	1-59	1-59
Total Power (kW)	Custom-made according to the customer’s request

Applications:

1. Pharmaceutical solid-dose pre- and post-blend mixing.
2. Tablet / capsule pre-press blending.
3. Health-supplement / nutraceutical powder mixing.
4. Food and chemical powder/granule homogenization.
