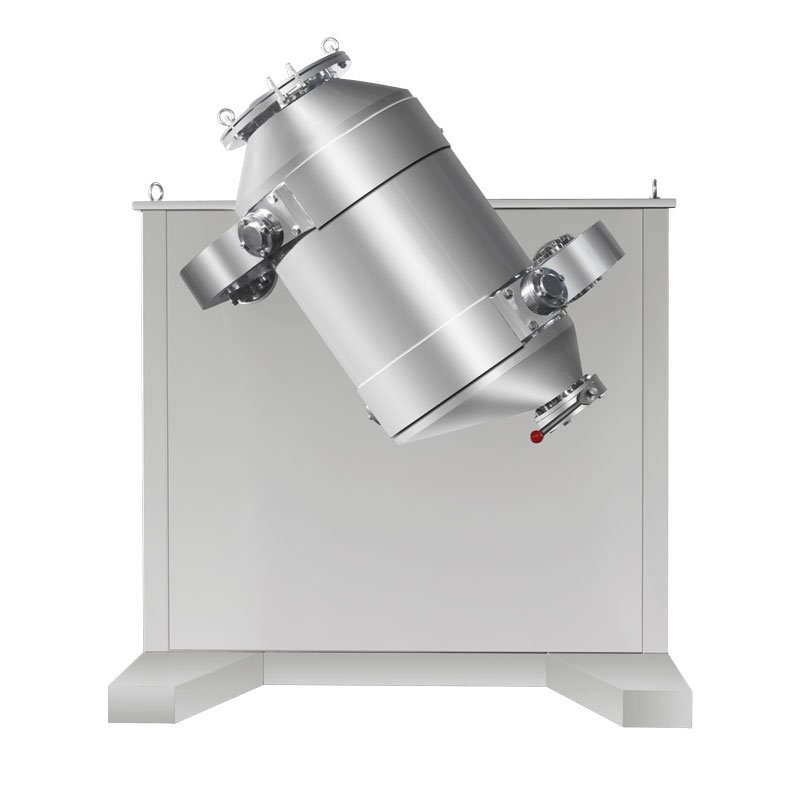

Multi-Dimensional Motion Powder Mixing Blender

Name: Multi-Dimensional Motion Powder Mixing Blender - Innoval Pharma
SKU: SH-E

Multi-Dimensional Motion Powder Mixing Blender

SKU SH-E Category Mixing

A frequency-conversion brake motor drives the main shaft through a rotating connecting rod to move the drum in compound parallel-shift and rocking motion. Material in the drum undergoes circumferential, radial, and axial three-directional motion, generating eddy flow with varying energy gradients. Material continuously inter-flows, diffuses, and mixes—achieving uniform blending without centrifugal or gravity segregation. Mixing uniformity ≥99.9%.

Features:

1. No centrifugal or gravity segregation; mixing uniformity ≥99.9%.

2. Rapidly and uniformly mixes materials of differing density and particle size.

3. Triangular-swing + translational-rotation principle outperforms conventional V-type and double-cone mixers.

4. Compact, stable operation, low noise.

5. Suitable for batch mixing of components at any ratio.

Technical Data:

Model	5SH-E	10SH-E	20SH-E	30SH-E	50SH-E	100SH-E	200SH-E	300SH-E
Volume of Mixing Barrel (L)	5	10	20	30	50	100	200	300
Max Loading Volume (L)	3	7	14	21	35	80	160	240
Max Loading Weight (kg)	3	5	10	14-15	25	70	100	150
Spindle Speed (rmp)	15	15	15	15	12	10	3-16	12
Power	Custom-made according to the customer’s request

Applications:

1. High-uniformity blending of pharma dry powders and granules.
2. Trace-additive distribution where density/particle-size segregation is a risk.
3. Pre-tablet press blends.
4. Light-industry and research-lab compound mixing.
