Two-Dimensional Motion Mixing Machine

Name: Two-Dimensional Motion Mixing Machine - Innoval Pharma
SKU: EH-H

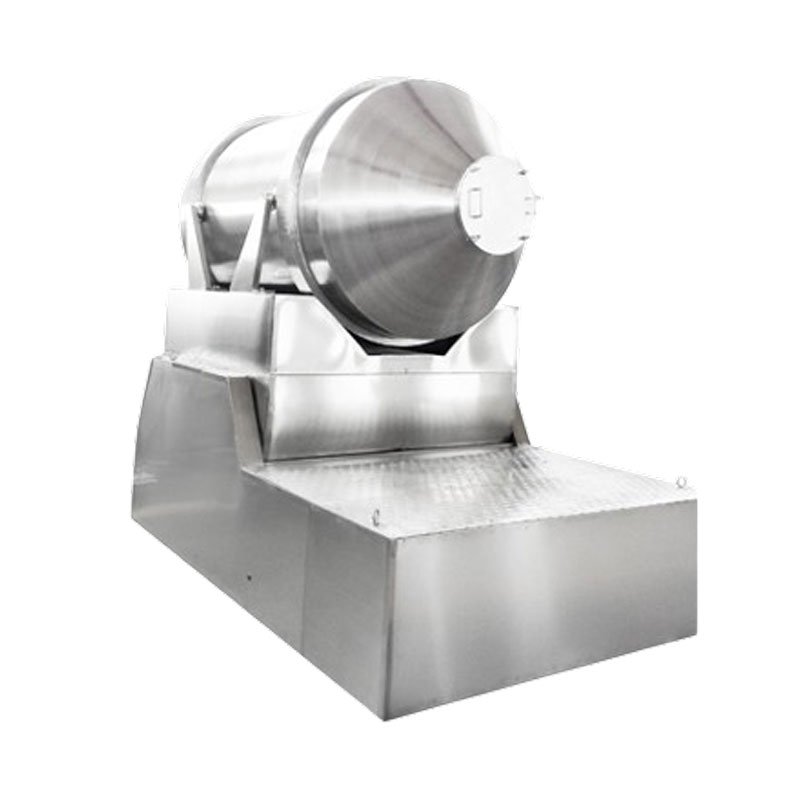

Two-Dimensional Motion Mixing Machine

SKU EH-H Category Mixing

The drum is held inside a swinging rack supported by four wheels with axial blocks. Two of the support rollers are powered to rotate the drum. The swinging rack is driven by a crankshaft-and-connecting-rod mechanism on the frame, supported by bearings. The drum simultaneously rotates and swings, so material inside experiences rotation + tumble + axial reciprocation — achieving fast, uniform blending.

Features:

1. Faster, more uniform blending vs single-axis tumbler.

2. Suitable for both powder and granular blends.

3. Simple magnetic-control operation with timer auto-stop.

4. Magnetic-control panel; timer auto-stop.

5. Speed adjustable up to factory-set maximum.

Technical Data:

Model		1000EH-H	1500EH-H	2000EH-H	2500EH-H	3000EH-H	5000EH-H	10000EH-H	12000EH-H	15000EH-H
Total Volume (L)		1000	1500	2000	2500	3000	5000	10000	12000	15000
Loading Volume (L)		500	750	1000	1250	1500	2500	5000	6000	7500
Loading Weight (kg)		350	550	750	950	1100	1800	3000	4000	5000
Overall Size (mm)	A	1500	1800	2000	2200	2400	2700	3200	3400	3500
	B	1390	1550	1670	1850	1910	2290	2700	2800	3000
	C	240	240	240	240	280	300	360	360	360
	D	850	980	1100	1160	1220	1440	1800	1910	2100
	M	2040	2340	2540	2760	2960	3530	4240	4860	5000
	H	2180	2280	2440	2600	2640	3000	4000	4200	4400
Power		Custom-made according to the customer’s request
