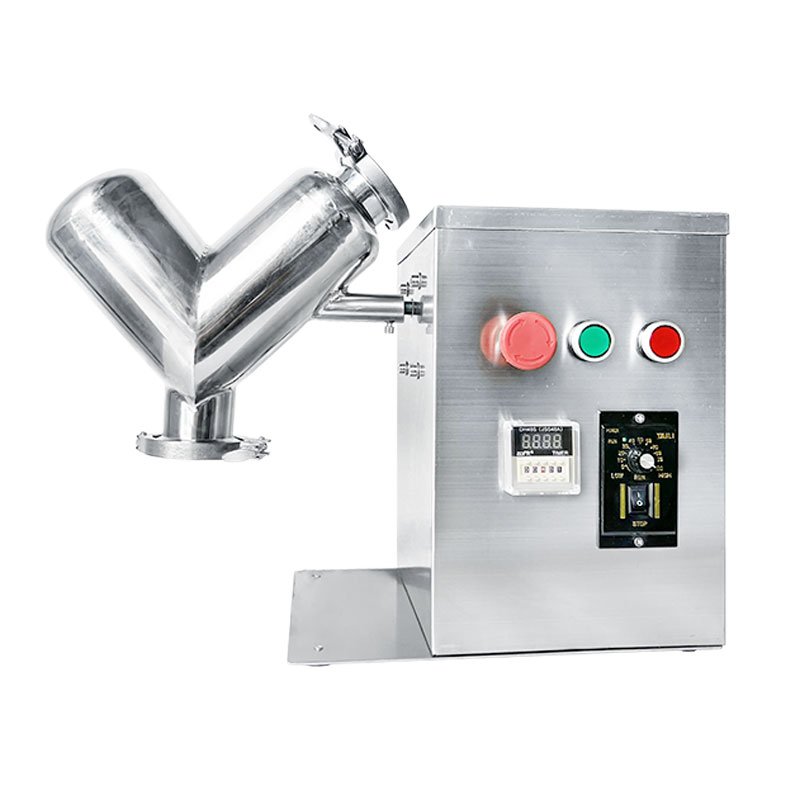

Small Scale V Type Mixer

Name: Small Scale V Type Mixer - Innoval Pharma
SKU: VH-I

Small Scale V Type Mixer

SKU VH-I Category Mixing

The mixer exploits the principle of asymmetry created by two cylinders of unequal length. As the mixer rotates, materials go from division to combination and back. Because the material planes differ, transverse forces arise and push materials into lateral exchange. Each rotation causes ~25% of material to flow from one cylinder to the other, achieving uniform mixing through simultaneous radial and lateral motion.

Features:

1. Compact benchtop mixer ideal for lab and small-batch use.

2. Asymmetric design delivers superior mixing uniformity vs symmetric V-mixers.

3. GMP-compliant 304 stainless steel construction.

4. Adjustable timer with wide range (0.1 s to 99 h).

Technical Data:

Model	2VH-I	3VH-I
Total Volume (L)	2	2
Working Volume (L)	1	1.2
Loading Volume (kg)	0.6	/
Mixing Speed (rpm)	24	0-60
Dimensions (mm)	450270450	590285480

Applications:

1. Capsule granules, herbal seasonings, powdered or granular Chinese/Western medicines.
2. Iron, copper, magnesium and other chemical powders.
3. Fish feed, poultry feed, wildlife feed, bird feed.
4. Spices, additives, vitamins, sugar products.
5. Powdery or granular ores.
