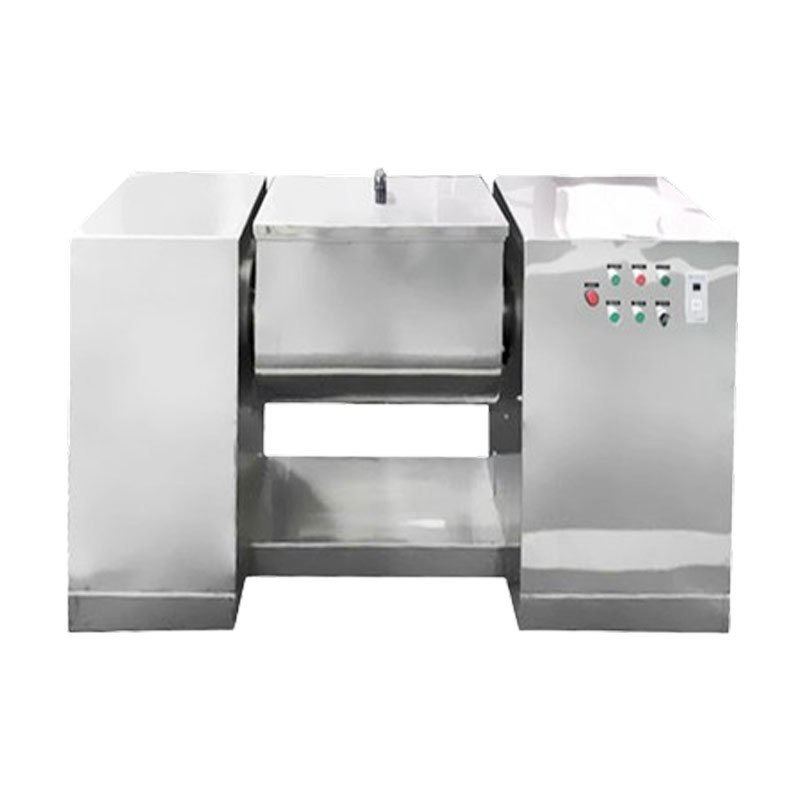

Powder Blender Mixer Machine
Powder Blender Mixer Machine
Single-tank groove mixer with S-style single paddle. Stainless-steel construction throughout, used for mixing powdery or paste materials in pharmaceutical, chemical and food processing. Independent power supplies for mixing and tilt-discharge with auto-positioning safety device. Pneumatic/motor tilt to <105 degrees for discharge.
Features:
1. Stainless steel construction throughout for hygiene.
2. Independent flip and mix drives plus auto-position safety lock for safe discharge.
3. Compact, easy-to-clean design.
4. Sealed agitator shaft ends to keep product clean.
5. Programmable batch timer with auto-stop.
Technical Data:
| Model | 50CH-H | 100CH-H | 150CH-H | 200CH-H | 300CH-H | 400CH-H | 500CH-H | 600CH-H |
| Paddle Shape | s-style single paddle | |||||||
| Working Volume (L) |
50 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
| Mixing Speed (r/min) |
24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Flip Angle | <105° | <105° | <105° | <105° | <105° | <105° | <105° | <105° |
| Power | Custom-made according to the customer’s request | |||||||
| Overall Size (mm) |
1200*500*950 | 1400*580*1000 | 1800*600*1150 | 2000*650*1200 | 2200*700*1250 | 2280*750*1250 | 2350*800*1300 | 2400*850*1350 |
| Weight (kg) | 280 | 350 | 410 | 450 | 520 | 580 | 680 | 750 |
Applications:
1. Mixing of pharmaceutical powders and pastes.
2. Food powder/paste blending.
3. Chemical powder/paste blending.
4. Wet-granulation pre-mix.
