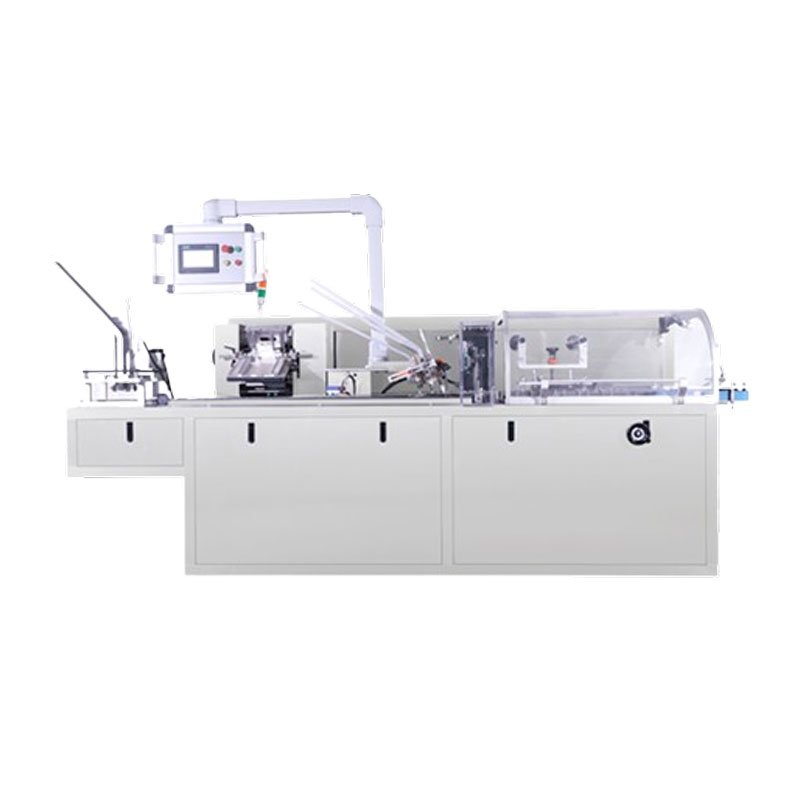

Automatic Horizontal Cartoner Machine

SKU WZH-D Category Cartoning Machine

The WZH-D is a fully automated horizontal cartoning system engineered for high-speed packaging across pharmaceutical, food, daily chemical, and hardware sectors. It executes the entire cartoning sequence—automatic feeding, carton erection, insertion, batch coding, sealing, and rejection of defective units—in one continuous operation. The series achieves a maximum output of 18,000 cartons per hour. Servo and stepper motors drive the mechanism, governed by a PLC controller with a visual touchscreen. Photoelectric eye detection ensures precise tracking, and molds need not be changed when switching products. The unit automatically halts if no carton is present, and the main drive motor is protected against overload. Carton sealing can be performed via hot melt glue spraying or mechanical glue brushing. The machine complies with GMP standards and is available in four models with capacities from 1,200 to 18,000 cartons per hour.

Features:

1. The machine fully complies with GMP standards, ensuring that cartoning operations meet stringent pharmaceutical regulatory requirements for product safety, hygiene, and quality assurance

2. Equipped with servo and stepper motors, the machine provides precise motion control and consistent reliability during cartoning operations.

3. The PLC programmable control system with visual touch screen provides intuitive parameter setting and reliable operation throughout cartoning production.

4. Automatic photoelectric eye detection ensures accurate monitoring and precise positioning throughout the cartoning process, maintaining consistent quality and reliability

5. Featuring mold-free product changeover, the machine allows rapid switching between different products without the need for mold replacement.

6. Automatic stop in the absence of cartons prevents empty box discharge and minimizes material waste, ensuring efficient cartoning operations.

7. The machine features main drive motor overload protection, ensuring safe and reliable operation by preventing motor damage during cartoning production

8. With optional hot melt glue spraying and mechanical glue brushing for carton sealing, the machine supports versatile sealing methods in cartoning operations.

Technical Data:

Model	80WZH-D	100WZH-D	120WZH1-D	300WZH-D
Capacity (cartons/hr)	1800-4800	3000-6000	1200-4200	6000-18000
Carton Dimension Range (mm)	Min.652014 Max.22017070	Min.652014 Max.2008070	Min.1005015 Max.24017080	Min.652515 Max.2008570
Carton Material	300-400g/ m2	300-400g/ m2	300-400g/ m2	300-400g/ m2
Power Supply	Custom made according to customer’s request
Machine Dimension (mm)	270014001800	310012501950	380016501700	445015101700
Machine Weight (kg)	1500	1500	1200	2500

Applications:

1. Pharmaceutical Blister & Bottle Cartoning: Ideal for packaging blister packs, round bottles, vials, and ampoules with leaflet insertion at high speed.

2. Food & Confectionery Box Packaging: Suitable for cartoning biscuits, snacks, bakery goods, and frozen food products into small cartons efficiently.

3. Cosmetics & Personal Care Cartoning: Capable of packaging shampoo, lotion, cosmetics, and perfume bottles into cartons with batch coding.

4. Daily Chemical & Hardware Products: Widely applied for detergents, hardware parts, stationery, and various small products requiring automatic box packaging.
