Automatic Horizontal Cartoner Machine
Automatic Horizontal Cartoner Machine

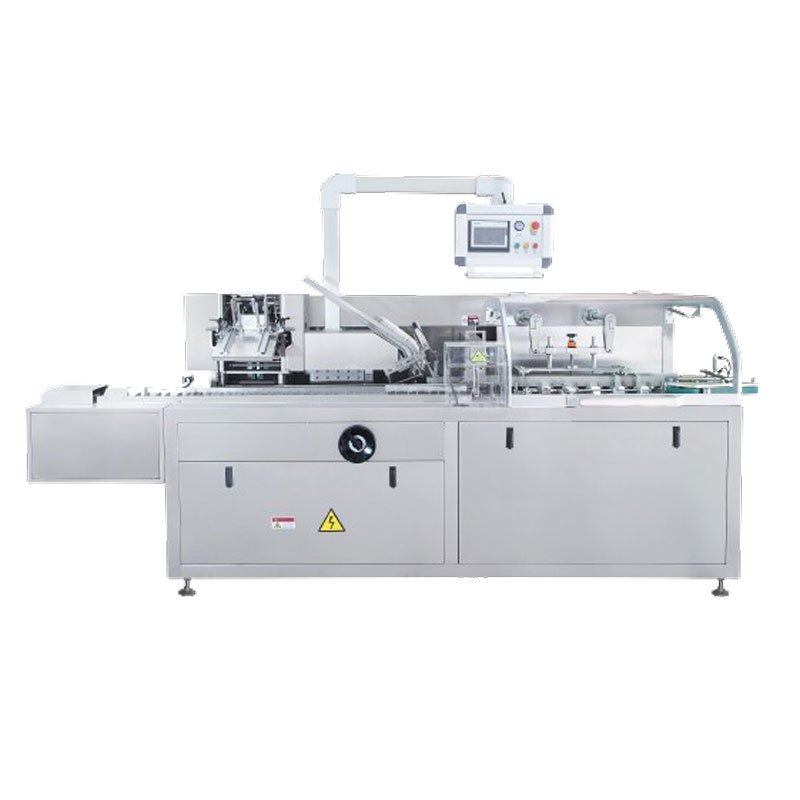

The WZH-A is a horizontal cartoning system engineered for small carton packaging across diverse sectors, accommodating both high-volume single-product runs and small-batch multi-variety output. It reaches a maximum cartoning rate of 19,200 pieces per hour. Compliant with GMP requirements, the unit is governed by a PLC and frequency inverter, with a user-friendly touchscreen for parameter configuration. Photoelectric eye tracking and detection, overload protection, and an emergency stop function are standard. Tool-free changeovers are quick and straightforward, and the machine halts automatically when products are not in position. Operating noise is kept at or below 75 dB. The series spans four models with speeds from 30 to 320 cartons per minute.
Features:
1. The machine fully complies with GMP standards, ensuring that cartoning operations meet stringent pharmaceutical regulatory requirements for product safety and quality assurance.
2. With a PLC system and frequency inverter control, the machine maintains dependable operation and smooth, flexible speed regulation for efficient cartoning output.
3. An easy-to-use touch screen enables convenient parameter setting, allowing operators to adjust cartoning specifications quickly and intuitively for efficient production.
4. The machine adopts photoelectric eye tracking and detection, ensuring accurate positioning and reliable monitoring throughout the cartoning process for consistent quality.
5. Overload protection and an emergency stop function safeguard both operators and equipment, ensuring reliable and safe cartoning production.
6. The machine features a low noise design with a decibel level of ≤75 dB, ensuring a quieter and more comfortable working environment during cartoning operations.
7. The machine enables quick and easy changeovers without tools, allowing operators to switch between carton formats rapidly for flexible production.
8. The machine automatically stops if the product is not in place, preventing empty cartons and minimizing material waste during cartoning operations.
Technical Data:
| Model | 100WZH-A | 120WZH-A | 180WZH-A | 320WZH-A |
| Capacity (cartons/min) | 50-100 | 30-120 | 180 | 320 |
| Carton Dimension Range (L*W*H mm) |
MIN 45*20*14 MAX 250*150*120 |
MIN 70*35*14 MAX 180*85*50 |
MIN 70*35*14 MAX 165*85*50 |
MIN 70*35*14 MAX 180*80*50 |
| Carton Material Request | white cardboard 250-350g/m2 gray cardboard 300-400g/ m2 |
60-70g/㎡ | 60-70g/㎡ | 60-70g/㎡ |
| Compressed Air Pressure | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa |
| Air Consumption | ≤0.3m3 /min | 120-160L/min | 120-180L/min | 160-200L/min |
| Power | Custom-made according to the customer’s request | |||
| Machine Weight (kg) | 1000 (approx.) | 1400 (approx.) | 1750 (approx.) | 3000 (approx.) |
| Dimensions (LWH mm) | 3300*1550*1560 | 3100*1100*1550 | 3650*1560*2040 | 4800*1600*1860 |
Applications:
1. Pharmaceutical Secondary Packaging: Ideal for cartoning blister packs, bottles, vials, and ampoules with leaflets, complying with GMP standards.
2. Food & Confectionery Cartoning: Suitable for packaging biscuits, cookies, snacks, bakery goods, and frozen food into small cartons at high speed.
3. Cosmetics & Personal Care Products: Capable of cartoning cosmetic bottles, cream tubes, facial mask packs, soaps, and personal care pouches efficiently.
4. Daily Chemical & Multi-Industry Use: Widely applied for detergents, hardware, stationery, automotive parts, and various small products requiring box packaging.
