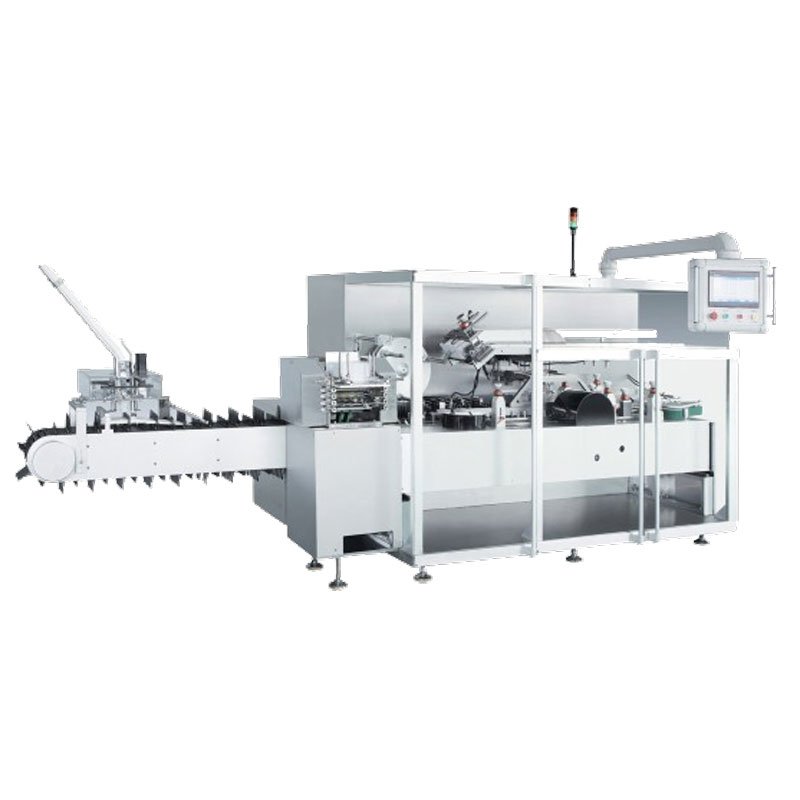

Horizontal High Speed Cartoning Machine

SKU GZH-A Category Cartoning Machine

The GZH-A is a high-speed horizontal cartoning system built to package pharmaceutical aluminum-plastic blister plates, round bottles, odd-shaped bottles, and comparable items into cartons. It automates leaflet folding, carton erection, plate loading, batch coding, and sealing in one continuous operation, achieving a maximum output of 36,000 cartons per hour. The machine adheres to GMP standards and features a PLC controller with variable-frequency operation, precise photoelectric detection, automatic shutdown on fault conditions, torque overload protection for the transmission system, and a rejection mechanism for defective products. Available in five models with speeds from 6,000 to 36,000 cartons/hr, it handles carton weights of 250–350 g/㎡.

Features:

1. Designed to comply with GMP standards, the machine ensures cartoning operations satisfy strict pharmaceutical regulatory requirements for reliable product safety and quality.

2. The PLC control system provides reliable and precise operation of all cartoning functions, ensuring consistent and high-quality box packaging production.

3. Frequency conversion control operation enables flexible speed adjustment to match varying production requirements, ensuring optimal efficiency in high-speed cartoning operations.

4. Precise photoelectric sensing detection ensures accurate monitoring and positioning throughout the cartoning process, maintaining consistent quality and reliable production output.

5. The machine automatically shuts down in case of abnormality, preventing equipment damage and ensuring safe, reliable operation during cartoning production.

6. The machine features transmission system torque overload protection, ensuring safe and reliable operation by preventing mechanical damage during high-speed cartoning production.

7. The unqualified product rejection device automatically detects and removes defective cartons, ensuring only high-quality products continue through the production line.

Technical Data:

Model	160GZH-A	180GZH-A	260GZH-A	450GZH-A	600GZH-A
Packing Speed (cartons/hr)	6000-9600	10800	15600	27000	36000
Carton Weight Range (g/㎡)	250-350	250-350	250-350	350	350
*Carton Size (LWH mm)*	Min.702518 Max.24017070	Min.703514 Max.1658550	Min.703514 Max.1808050	Min.703514 Max.1808050	Min.703514 Max.1808050
Working Pressure (MPa)	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6
Power Supply	Custom made according to customer’s request
Dimensions (mm)	495015501900	365015602040	480016001860	480018002000	510018502000
Weight (kg)	180	1750	3000	5500	5500

Applications:

1. Pharmaceutical Blister & Bottle Cartoning: Suitable for cartoning aluminum-plastic blister plates, round bottles, special-shaped bottles, and similar pharmaceutical products at high speed.

2. Ointment, Pill Tray & Soft Tube Packaging: Ideal for automatically feeding and cartoning ointments, pill trays, soft double aluminum strips, and pouch-like pharmaceutical items.

3. Cosmetics & Personal Care Cartoning: Capable of packaging cosmetic products and personal care items into cartons, meeting strict GMP standards for secondary packaging.

4. Versatile Cross-Industry Cartoning: Widely applied for cartoning granular pouches, plastic trays, food items, and electronic products across multiple industries.
