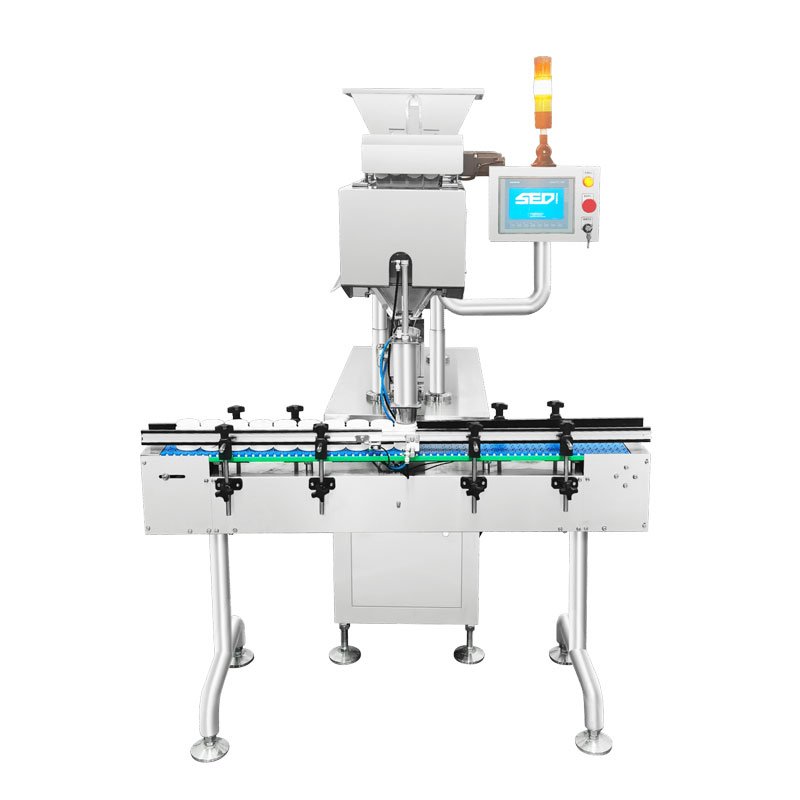

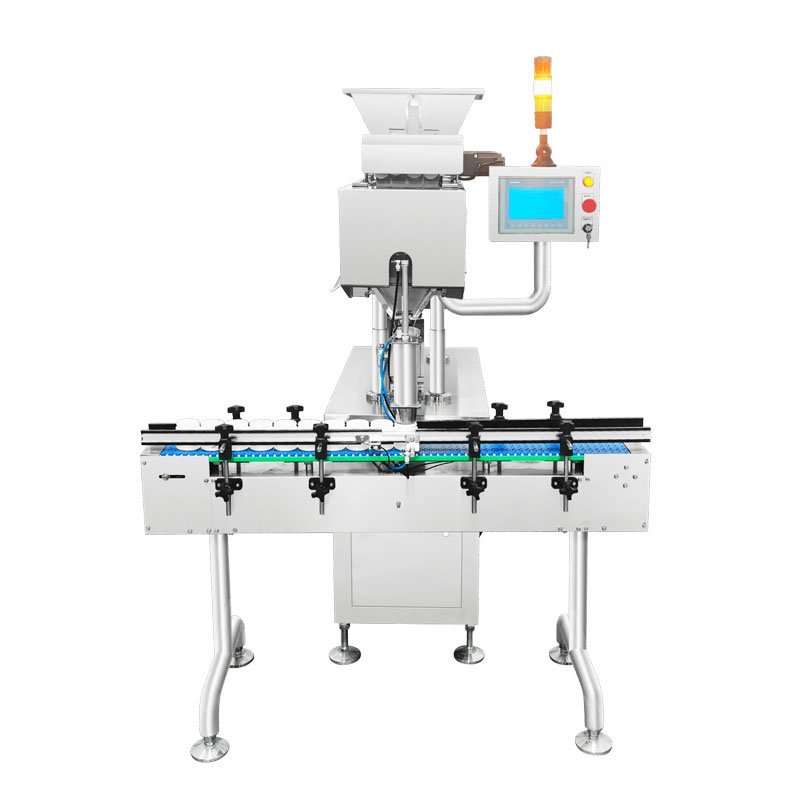

Automatic Nicotine Pouches Counting Machine
Automatic Nicotine Pouches Counting Machine
Fully automatic 4-channel electronic counting machine purpose-built for nicotine pouches (NRT pouches) and similar small flat sachets. Photoelectric counting with three-stage anti-stacking corrugated plates and rolling brushes delivers >=99.8% counting accuracy at 10-300 pouches/min (15-20 bottles/min). PLC + Siemens 7-inch HMI controls; pneumatic gates (4 channels), buffer cylinder, vibrating positioning device. Stainless-steel construction; can run standalone or be linked with a bottle unscrambler, paper inserter, capper and labelling machine to form a complete bottling line.
Features:
1. Purpose-engineered for nicotine pouches (NRT) — export-grade reliability.
2. Three levels of anti-stacking dramatically reduce miscount.
3. Real-time alarms and I/O monitoring on HMI.
4. Easy maintenance: simple structure and removable parts.
5. Compatible with full bottling line (unscrambler / capper / labeller).
Technical Data:
| Model | 4S |
| Capacity (bottles/hr) | 900-1200 |
| Bottle Size (mm) | Dia. 20-100, height 40-180 |
| Application | Nicotine pouches |
| Accuracy | ≥99.8% |
| Power | Custom-made according to the customer’s request |
| Dimension (mm) | 1360*1510*1640 |
Applications:
1. Counting and bottling of nicotine pouches (NRT).
2. Counting and bottling of small flat sachets / lozenges.
3. Inline filling integrated with bottle unscrambler, capper and labeller.
